Grundfos 99916974 - CRN 5-10 A-P-A-E-HQQE | Vertical | Multistage | Centrifugal

Save $2,838.07
GRUNDFOSSKU: 99916974

Price:
Sale price$3,792.93 Regular price$6,631.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 99916974 - CRN 5-10 A-P-A-E-HQQE Vertical Multistage Centrifugal Pump

The Grundfos 99916974 - CRN 5-10 A-P-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, this pump is engineered to deliver reliable and efficient performance, making it an ideal choice for high-pressure systems.

With its robust construction and advanced design, the CRN 5-10 A-P-A-E-HQQE model is perfect for applications requiring consistent flow and pressure. This pump is part of the renowned Grundfos Centrifugal Pumps series, which includes both single and multi-stage options, ensuring you find the right fit for your needs.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU that matches the 99916974. If you encounter any difficulties in locating the right item, our team is here to help!

EAN 5715114117463
Applications Industrial applications
Approvals CURUS
Approvals for drinking water NSF/ANSI 61
Bearing 1 SIC
Built-in motor protection PTO
Code for rubber E
Code for shaft seal HQQE
Connect code P
Connection PJE
Connection 2 DN 32
Connection 3 DN 32
Connection 4 PN 50
Cooling IC 411
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Eta 1/1 0.84
Flange size for motor 182TC
Frequency 60 HZ
Frequency converter NONE
Full load SF current 31.7/22.4 A
Gross weight 190.0 lb
IE efficiency 0.84
Impeller Stainless steel
Impellers 10
Insulation F
Insulation class (IEC 85) F
Liquid max temp 120°C
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 250 °F
Maximum ambient temperature 104 °F
Maximum head 326.1 ft
Maximum operating pressure 362.59 psi
Maximum permissible operating pressure 25bar
Model A
Motor 182TC
Motor efficiency at 1/2 load 0.764
Motor efficiency at 3/4 load 0.82
Motor efficiency at full load 1 0.84
Motor protec PTO
Motor standard NEMA
Motor type WEG
n rpm 3515rpm
Net weight 172.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
P2 HP 5 HP
P2 kW 3.7kW
Phase 1
Power (P2) required by pump 5 HP
Power factor 1 0.98
Pressure rating PN 50
Pressure rating for connection PN 50
Product family CRN 5
Pump 5 HP
Pump housing Stainless steel
Pump inlet DN 32
Pump outlet DN 32
Pump version A
Pumped liquid Water
Rated current 31.7-25.3 A
Rated flow 30.4 US gpm
Rated flow 2 30.4 US gpm
Rated head 241.2 ft
Rated head 2 241.2 ft
Rated power - P2 5 HP
Rated speed 3515 rpm
Rated voltage 1 x 208-230 V
Real Time Delivery date to be confirmed on Sales Order Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.15
Shaft seal HQQE
Size of inlet connection DN 32
Size of outlet connection DN 32
Stages 10
Standard NEMA
Starting current 800-800 %
Type WEG
Type of connection PJE
Version A

Motor Curves

Dimensional Drawing

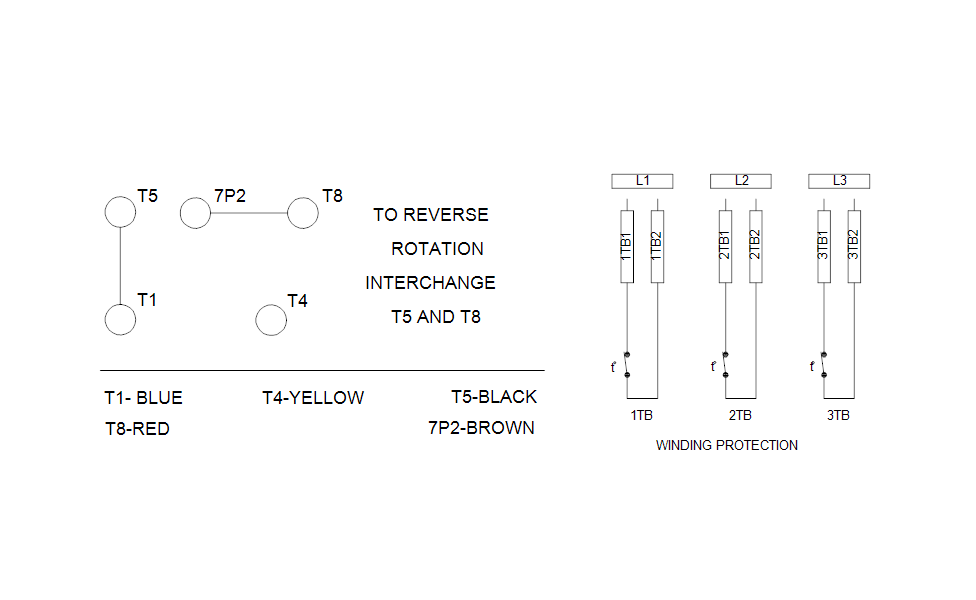

DWiring Diagram
