Grundfos 91129157 - CRN 45-7 A-G-A-V-HQQV | Multistage | Centrifugal | Vertical | Inline

GRUNDFOSSKU: 91129157

Price:
Sale price$60,980.56
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

CRN 45-7 A-G-A-V-HQQV Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). Pump materials in contact with the liquid are in high-grade stainless steel. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via ANSI flanges. The pump is fitted with a 3-phase, fan-cooled asynchronous motor.

EAN 5700835335937
Applications Industrial applications
Actual impeller diameter 5.34 in
Built-in motor protection NONE
Code for rubber V
Code for shaft seal HQQV
Connect code G
Connection 300 Lb.
Cooling TEFC
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 5.34 in
DOE Pump Energy Index CL 0.89
Enclosure class (IEC 34-5) IP54
Flange size for motor 326TC
Frequency converter NONE
Full load SF current 150/75 A
Gross weight 1060.0 lb
IE efficiency IE3 93
IE Efficiency class IE3 / NEMA Premium
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 194 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 435 psi / 194 °F
Maximum ambient temperature 122 °F
Maximum head 846.2 ft
Maximum operating pressure 30 bar
Model B
Motor 326TC
Motor efficiency at full load 1 0.936
Motor standard NEMA
Motor type BALDOR
Net weight 848.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 45 kW
Power factor 1 0.87
Pressure rating for connection 300 Lb.
Product family CRN 45
Pump 45 kW
Pump speed on which pump data are based 3565 rpm
Pump version A
Pumped liquid Water
Rated current 132/66 A
Rated flow 238 US gpm
Rated head 686.7 ft
Rated power - P2 45 kW
Rated speed 3550 rpm
Rated voltage 3 x 230/460 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Sales region Namreg
Selected liquid temperature 68 °F
Service factor 1.15
Stages 7
Standard NEMA
Type BALDOR
Type of connection ANSI
Version A

Motor Curves

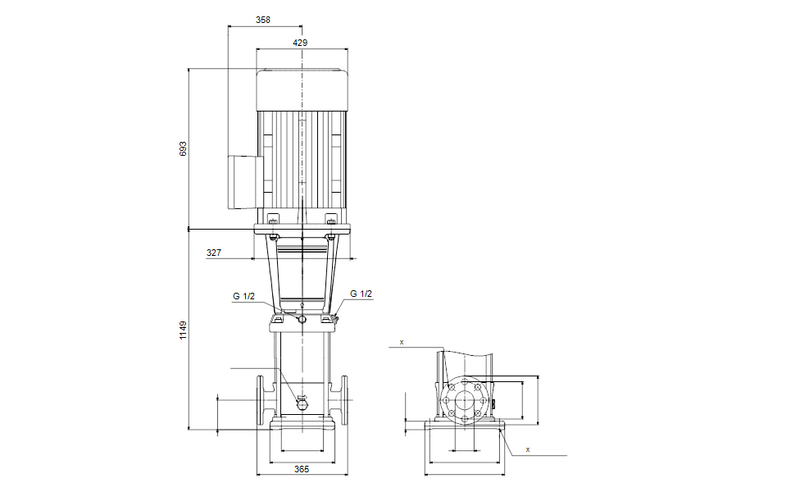

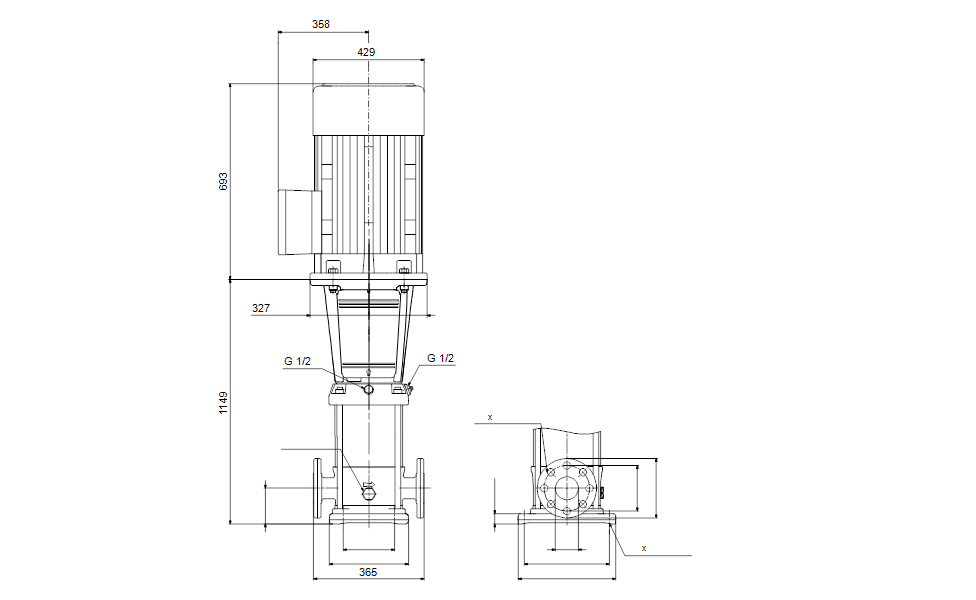

Dimensional Drawing

DWiring Diagram
