Grundfos 91129132 - CRN 45-7 A-G-A-E-HQQE | Multistage | Centrifugal | Vertical | Inline

GRUNDFOSSKU: 91129132

Price:
Sale price$54,912.50
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

CRN 45-7 A-G-A-E-HQQE Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). Pump materials in contact with the liquid are in high-grade stainless steel. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via ANSI flanges. The pump is fitted with a 3-phase, fan-cooled asynchronous motor.

EAN 5700835335869
Applications Industrial applications
Actual impeller diameter 5.34 in
Built-in motor protection NONE
Code for rubber E
Code for shaft seal HQQE
Connect code G
Connection 300 Lb.
Cooling ODP
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 5.34 in
DOE Pump Energy Index CL 0.89
Flange size for motor 324TC
Frequency converter NONE
Gross weight 1060.0 lb
IE efficiency IE3 94
IE Efficiency class IE3 / NEMA Premium
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -40 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 435 psi / 250 °F
Maximum ambient temperature 104 °F
Maximum head 846.2 ft
Maximum operating pressure 30 bar
Model B
Motor 324TC
Motor efficiency at full load 1 0.945
Motor standard NEMA
Motor type BALDOR
Net weight 848.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 45 kW
Pressure rating for connection 300 Lb.
Product family CRN 45
Pump 45 kW
Pump speed on which pump data are based 3550 rpm
Pump version A
Pumped liquid Water
Rated current 130/65 A
Rated flow 238 US gpm
Rated head 686.7 ft
Rated power - P2 45 kW
Rated speed 3540 rpm
Rated voltage 3 x 230/460 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Sales region Namreg
Selected liquid temperature 68 °F
Service factor 1.15
Stages 7
Standard NEMA
Type BALDOR
Type of connection ANSI
Version A

Motor Curves

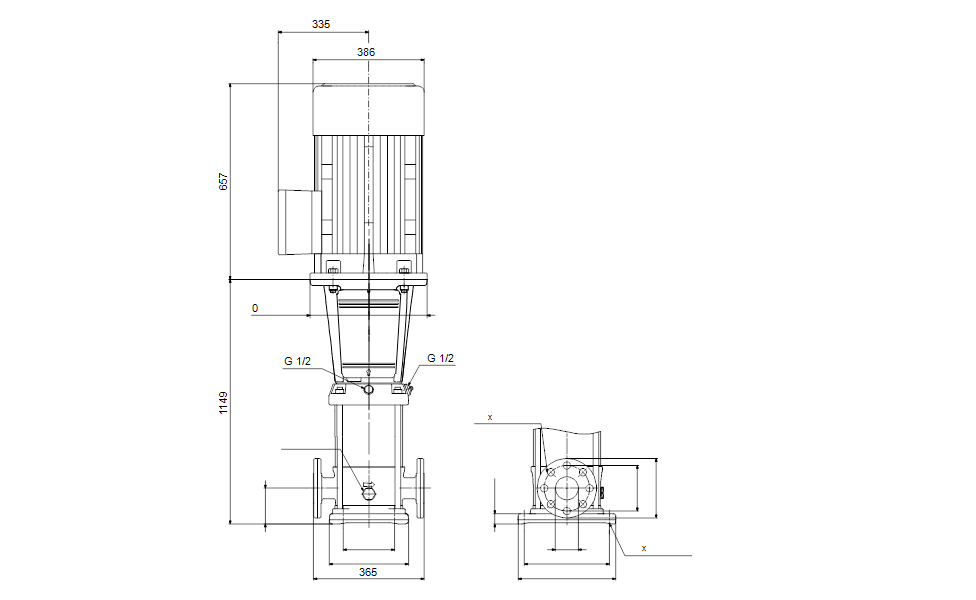

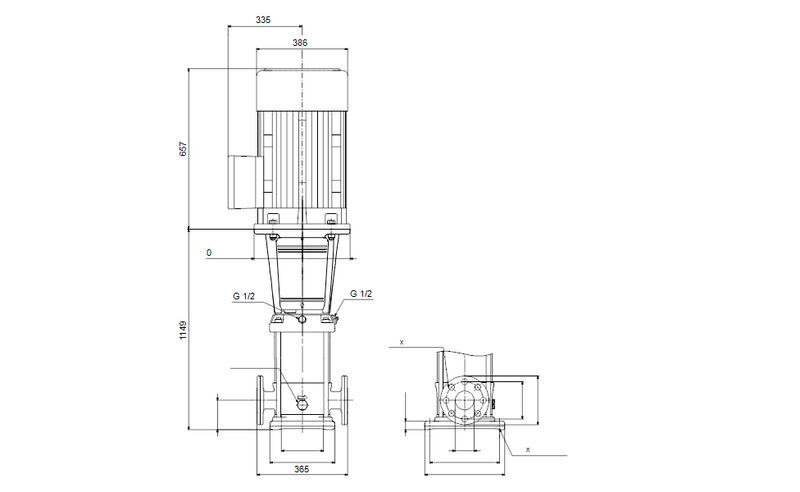

Dimensional Drawing

DWiring Diagram
