Grundfos 99918254 - CRN 45-6 A-G-A-E-HQQE | Multistage | Centrifugal | Vertical | Inline

Save $15,374.19
GRUNDFOSSKU: 99918254

Price:
Sale price$20,546.81 Regular price$35,921.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

CRN 45-6 A-G-A-E-HQQE Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). Pump materials in contact with the liquid are in high-grade stainless steel. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via ANSI flanges. The pump is fitted with a 3-phase, fan-cooled asynchronous motor.

EAN 5715114131162
Applications Industrial applications
Actual impeller diameter 5.34 in
Approvals CURUS
Approvals for drinking water NSF/ANSI 61
Bearing 1 SIC
Built-in motor protection NONE
Code for rubber E
Code for shaft seal HQQE
Connect code G
Connection ANSI
Connection 2 PN 40
Cooling IC 01
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 5.34 in
DOE Pump Energy Index CL 0.89
Enclosure class (IEC 34-5) IP23
Flange rating inlet 300 lb
Flange size for motor 324TC
Frequency converter NONE
Full load SF current 149/74.3 A
Gross weight 662.0 lb
IE efficiency IE3 93%
IE Efficiency class IE3 / NEMA Premium
Impeller Stainless steel
Impellers 6
Insulation class (IEC 85) F
Liquid temperature range -40 .. 248 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 435 psi / 250 °F
Maximum ambient temperature 104 °F
Maximum head 723.8 ft
Maximum operating pressure 435.11 psi
Model B
Motor 324TC
Motor efficiency at 1/2 load 0.917
Motor efficiency at 3/4 load 0.93
Motor efficiency at full load 1 0.93
Motor standard NEMA
Motor type WEG
Net weight 645.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
P2 HP 50 HP
Power (P2) required by pump 50 HP
Power factor 1 0.84
Pressure rating for connection PN 40
Product family CRN 45
Pump 50 HP
Pump version A
Pumped liquid Water
Rated current 119/59.4 A
Rated flow 238 US gpm
Rated flow 2 238 US gpm
Rated head 579.1 ft
Rated head 2 579.1 ft
Rated power - P2 50 HP
Rated speed 3560 rpm
Rated voltage 3 x 230/460 V
Real Time Delivery date to be confirmed on Sales Order Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.25
Stages 6
Standard NEMA
Starting current 6.3
Support bearing Graflon
Type WEG
Type of connection ANSI
Version A

Motor Curves

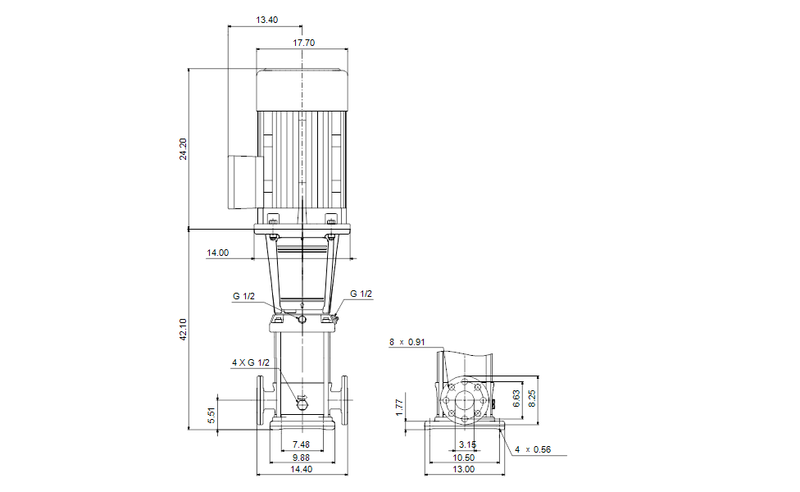

Dimensional Drawing

DWiring Diagram
