Grundfos 97739970 - CRN 45-6-2 H-GB-A-E-HQQE | Vertical | Multistage | Centrifugal

Save $11,060.38
GRUNDFOSSKU: 97739970

Price:
Sale price$14,781.62 Regular price$25,842.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 97739970 - CRN 45-6-2 H-GB-A-E-HQQE Vertical Multistage Centrifugal Pump

The Grundfos 97739970 - CRN 45-6-2 H-GB-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, a leader in pump technology, this model ensures reliable operation and efficiency in demanding environments.

This centrifugal pump is ideal for boosting pressure, transferring liquids, and various other applications where consistent performance is crucial. With its robust construction and advanced design, the CRN series is built to handle a wide range of fluids, making it a versatile choice for your pumping needs.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches to ensure compatibility.

For more information on specifications and applications, feel free to reach out to our knowledgeable team. We are here to help you find the perfect solution for your pumping requirements.

Approvals on nameplate CE,NSF/ANSI 61
Bearing 1 Graflon
Code for rubber E
Code for shaft seal HQQE
Connect code GB
Connection PN 40
Curve tolerance ISO9906:2012 3B
Flange rating inlet 300 lb
Flange size for motor 324TC
Frequency converter NONE
Gross weight 323.0 lb
Impeller Stainless steel
Impellers 2
Liquid max temp 248°F
Liquid temperature range -40 .. 248 °F
Low NPSH N
Material code A
Maximum head 651 ft
Maximum operating pressure 435.11 psi
Model B
Motor 324TC
Motor standard NEMA
n rpm 3550rpm
Net weight 224.0 lb
Number of reduced-diameter impellers 2
Pressure rating for connection PN 40
Pressure sensor N
Pump Y
Pump version H
Rated flow 231 US gpm
Rated head 518.4 ft
Rubber E
Sales region USA
Shaft Product name:CRN 45-6-2 H-GB-A-E-HQQE
Shaft seal HQQE
Stages 6
Standard NEMA
Support bearing Graflon
Version H

Motor Curves

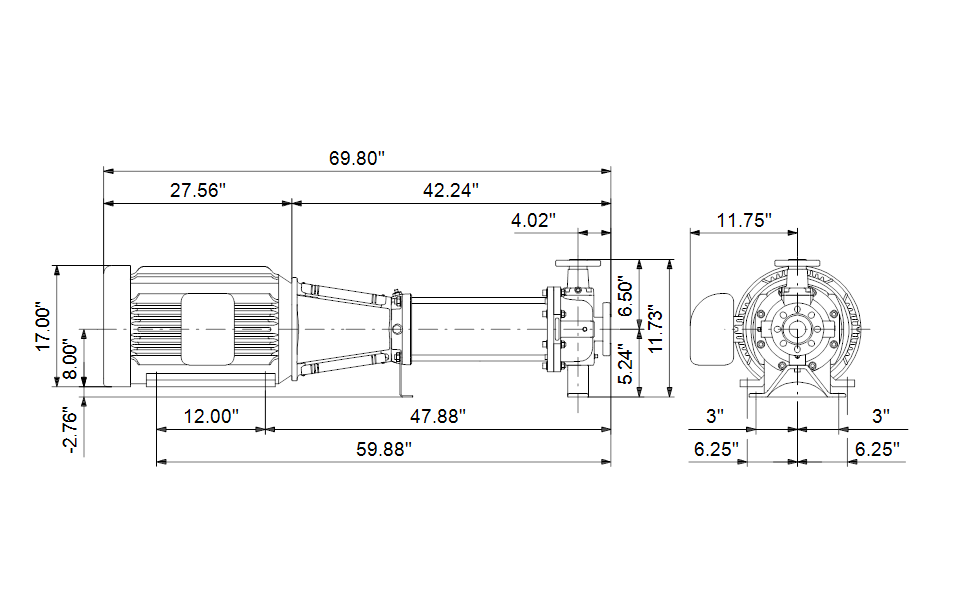

Dimensional Drawing
