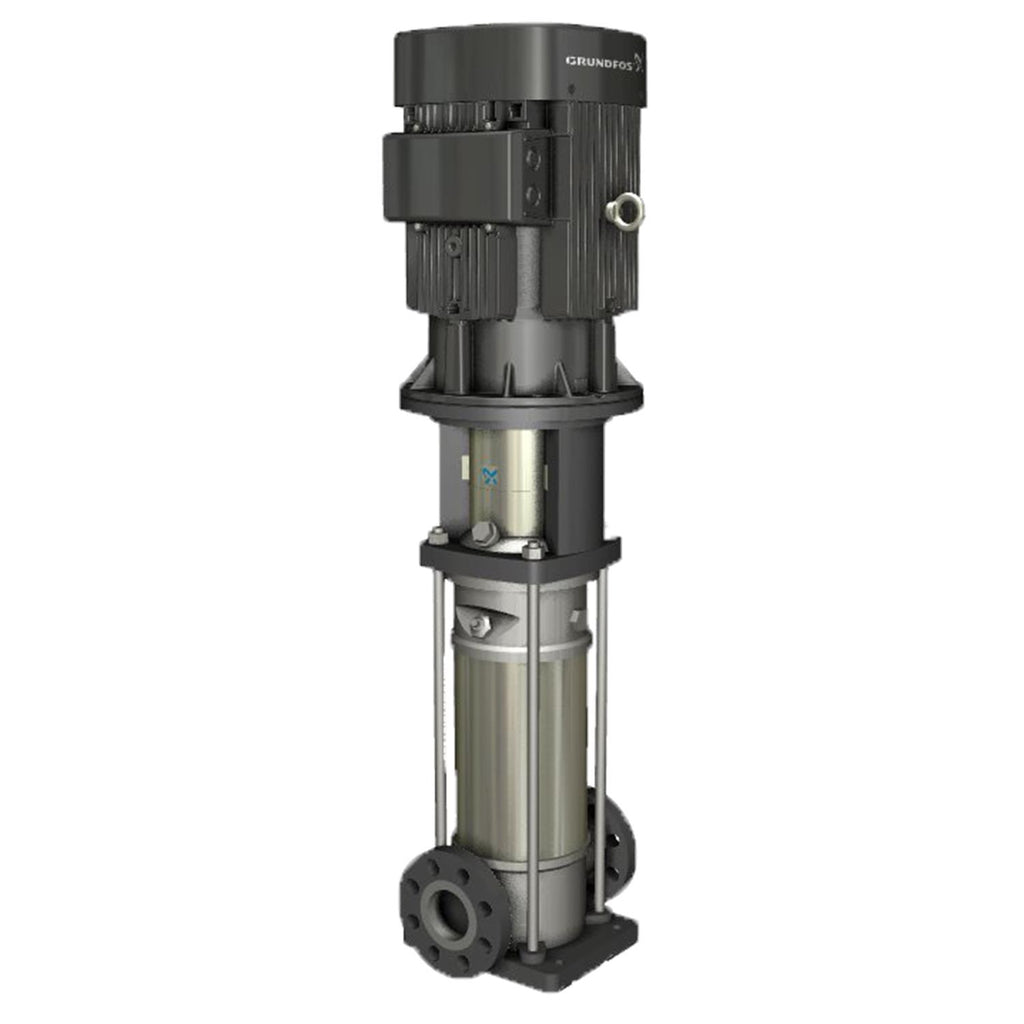

Grundfos 99270995 - CRN 45-5-2 B-G-A-V-PQQV | Multistage | Centrifugal | Vertical | Inline

GRUNDFOSSKU: 99270995

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos CRN 45-5-2 B-G-A-V-PQQV is a vertical, multistage centrifugal inline pump designed for high-pressure fluid transfer in industrial and commercial systems. It suits maintenance technicians and service shops needing a stainless-steel, inline multistage pump for process, boiler feed, or water transfer applications.

Key features

  • Wetted parts in high-grade stainless steel for corrosion resistance and longevity
  • Inline configuration with inlet and outlet ports at the same level for compact piping layouts
  • Rigid split coupling and multistage design provide reliable power transmission and higher discharge pressure

Applications

Typical uses include boiler feed, high-pressure water transfer, process circulation, and other industrial or commercial applications requiring a vertical, inline multistage centrifugal pump.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 99270995

EAN 5713826339425
Actual impeller diameter 5.34 in
Approvals CE
Bearing 1 Graflon
Code for rubber V
Code for shaft seal PQQV
Connect code G
Connection PN 40
Curve tolerance ISO9906:2012 3B
Diameter 5.34 in
DOE Pump Energy Index CL 0.89
Flange rating inlet 300 lb
Flange size for motor 324TC
Frequency converter NONE
Gross weight 245.0 lb
Impeller Stainless steel
Impellers 2
Liquid temperature range -4 .. 194 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 435 psi / 194 °F
Maximum head 558.4 ft
Maximum operating pressure 30 bar
Model B
Motor 324TC
Motor standard NEMA
Net weight 227.0 lb
Number of reduced-diameter impellers 2
Pressure rating for connection PN 40
Pressure sensor N
Pump speed on which pump data are based 3525 rpm
Pump version B
Rated flow 238 US gpm
Rated head 443.6 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Size of inlet connection 3 inch
Size of outlet connection 3 inch
Stages 5
Standard NEMA
Support bearing Graflon
Type of connection ANSI
Version B
