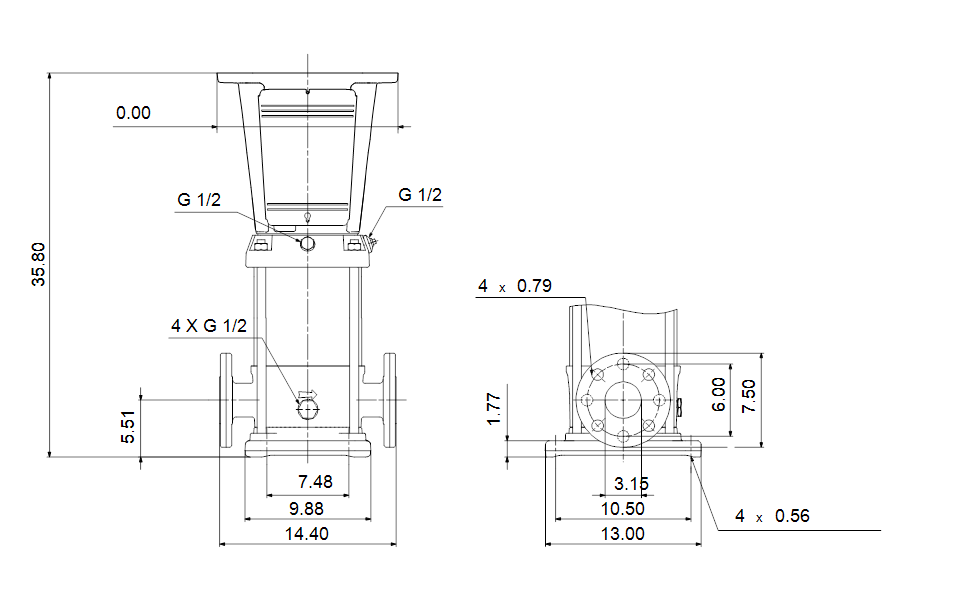

![Grundfos 96415849 - CRN 45-4-2 A-G-A-E-HQQE]()
![Grundfos 96415849 - CRN 45-4-2 A-G-A-E-HQQE]()
![Grundfos 96415849 - CRN 45-4-2 A-G-A-E-HQQE]()
![Grundfos 96415849 - CRN 45-4-2 A-G-A-E-HQQE]()
Description
CRN 45-4-2 A-G-A-E-HQQE | Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). Pump materials in contact with the liquid are in high-grade stainless steel. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via ANSI flanges.
EAN
5700390650025
Applications
Industrial applications
Actual impeller diameter
5.34 in
Approvals
CE
Approvals for drinking water
NSF/ANSI 61
Bearing 1
SIC
Code for rubber
E
Code for shaft seal
HQQE
Connect code
G
Connection
ANSI
Connection 2
PN 16
Curve tolerance
ISO9906:2012 3B
Density
62.29 lb/ft³
Diameter
5.34 in
DOE Pump Energy Index CL
0.89
Flange rating inlet
150 lb
Flange size for motor
284TC
Flange standard
ANSI
Frequency
60 HZ
Frequency converter
NONE
Gross weight
187.0 lb
Impeller
Stainless steel
Impellers
4
Liquid max temp
120°C
Liquid temperature range
-40 .. 248 °F
Low NPSH
N
Material code
A
Material Pricing Group
6
Max pressure at stated temp
232 psi / 250 °F
Maximum head
436.7 ft
Maximum operating pressure
232.06 psi
Maximum permissible operating pressure
16bar
Model
B
Motor
284TC
Motor standard
NEMA
n rpm
3541rpm
Net weight
169.0 lb
Number of reduced-diameter impellers
2
Power (P2) required by pump
30 HP
Pressure rating
PN 16
Pressure rating for connection
PN 16
Product family
CRN 45
Pump
30 HP
Pump housing
Stainless steel
Pump inlet
3
Pump outlet
3
Pump version
A
Pumped liquid
Water
Rated flow
238 US gpm
Rated flow 2
238 US gpm
Rated head
341.2 ft
Rated head 2
341.2 ft
Real Time
Delivery date to be confirmed on Sales Order Update with real time availability and Net price
Rubber
E
Sales region
Namreg
Selected liquid temperature
68 °F
Shaft seal
HQQE
Stages
4
Standard
NEMA
Support bearing
Graflon
Type of connection
ANSI
Version
A
