Grundfos 99918263 - CRN 45-3 A-G-A-V-HQQV | Multistage | Centrifugal | Vertical | Inline

Save $10,210.80
GRUNDFOSSKU: 99918263

Price:
Sale price$13,646.20 Regular price$23,857.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

CRN 45-3 A-G-A-V-HQQV Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). Pump materials in contact with the liquid are in high-grade stainless steel. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via ANSI flanges. The pump is fitted with a 3-phase, fan-cooled asynchronous motor.

EAN 5715114131254
Applications Industrial applications
Actual impeller diameter 5.34 in
Approvals CURUS
Bearing 1 SIC
Built-in motor protection NONE
Code for rubber V
Code for shaft seal HQQV
Connect code G
Connection ANSI
Connection 2 PN 16
Cooling IC 01
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 5.34 in
DOE Pump Energy Index CL 0.89
Enclosure class (IEC 34-5) IP23
Eta 1/1 0.917
Flange rating inlet 150 lb
Flange size for motor 284TC
Frequency 60 HZ
Frequency converter NONE
Full load SF current 72.8/36.4 A
Gross weight 500.0 lb
IE Eff. Class IE3 / NEMA Premium
IE efficiency IE3 91,7%
IE Efficiency class IE3 / NEMA Premium
Impeller Stainless steel
Impellers 3
Insulation F
Insulation class (IEC 85) F
Liquid max temp 90°C
Liquid temperature range -4 .. 194 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 232 psi / 194 °F
Maximum ambient temperature 104 °F
Maximum head 364.8 ft
Maximum operating pressure 232.06 psi
Maximum permissible operating pressure 16bar
Model B
Motor 284TC
Motor efficiency at 1/2 load 0.914
Motor efficiency at 3/4 load 0.917
Motor efficiency at full load 1 0.917
Motor protec NONE
Motor standard NEMA
Motor type WEG
n rpm 3544rpm
Net weight 482.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
P2 HP 25 HP
P2 kW 18.5kW
Phase 3
Power (P2) required by pump 25 HP
Power factor 1 0.87
Pressure rating PN 16
Pressure rating for connection PN 16
Product family CRN 45
Pump 25 HP
Pump housing Stainless steel
Pump inlet 3
Pump outlet 3
Pump version A
Pumped liquid Water
Rated current 58.2/29.1 A
Rated flow 238 US gpm
Rated flow 2 238 US gpm
Rated head 282.5 ft
Rated head 2 282.5 ft
Rated power - P2 25 HP
Rated speed 3544 rpm
Rated voltage 3 x 230/460 V
Real Time Delivery date to be confirmed on Sales Order Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Service factor 1.25
Shaft seal HQQV
Stages 3
Standard NEMA
Starting current 6.6
Support bearing Graflon
Type WEG
Type of connection ANSI
Version A

Motor Curves

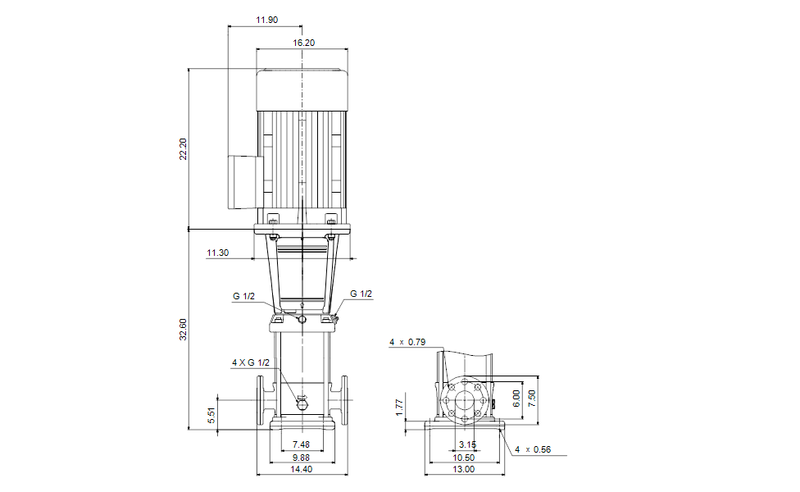

Dimensional Drawing

DWiring Diagram
