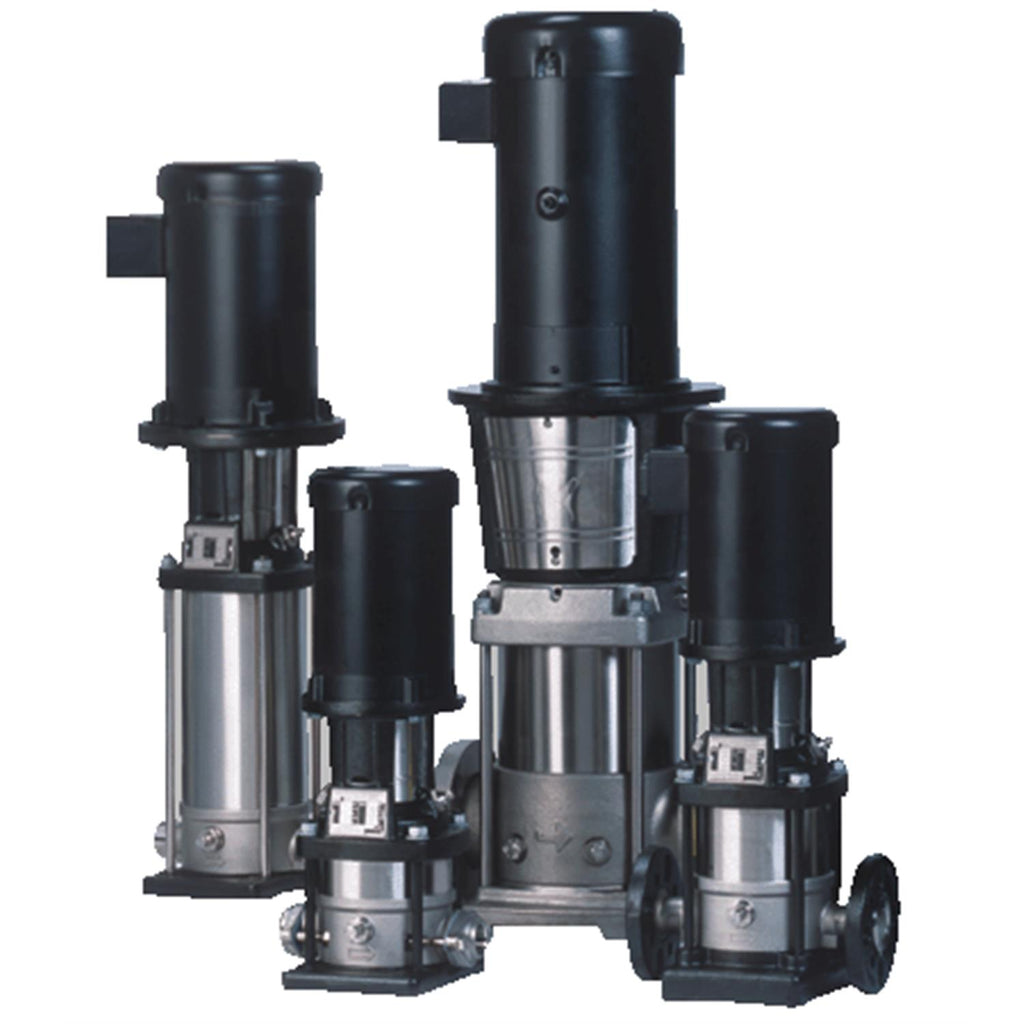

Grundfos 99918244 - CRN 45-3-2 A-G-A-E-HQQE | Multistage | Centrifugal | Vertical | Inline

GrundfosSKU: 99918244

Price:
Sale price$27,484.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
CRN 45-3-2 A-G-A-E-HQQE · Vertical Multistage Centrifugal Pump — All Stainless
CRN20HP230/460V3.0-Phase60 HzIE3 / NEMA PremiumODPStainless steel

The Grundfos 99918244 (CRN 45-3-2 A-G-A-E-HQQE) is a Vertical Multistage Centrifugal Pump — All Stainless. All wetted parts in stainless steel EN 1.4401 (316). For food, beverage, pharmaceutical, and chemical applications where iron contamination must be avoided. Nominal performance: 238US gpm at 247.4ft. Rated 230/460V, 3.0-Phase, 60 Hz. Applications include HVAC: Heating, HVAC: Air Conditioning, Plumbing: Pressure Boosting and more.

Power
20HP
Voltage
230/460V
Phase
3.0-Phase
Max Flow
238US gpm
Max Head
247.4ft
Max Pressure
232.06psi
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Industrial Grade
IE3 / NEMA Premium motor — reduces operating cost over service life
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product

All Stainless Steel Construction

Every wetted component — impeller, chambers, shaft, head — is stainless steel EN 1.4401 (316). No iron contact with the pumped fluid under any condition.

Corrosion-Resistant for Aggressive Fluids

316 stainless resists chlorides, mild acids, and alkaline cleaning agents. CRN is the preferred selection for food processing, pharmaceutical, and chemical dosing systems.

Cartridge Mechanical Seal

Factory-set cartridge seal eliminates field adjustment on installation. Seal options cover standard water through aggressive chemical service.

Dual Flange Standard — DIN, ANSI, JIS

CRN ships with combined DIN/ANSI/JIS flange connections. One pump fits piping standards across North American and international installations.

3-A and FDA-Compliant Options

Selected CRN configurations are 3-A certified for dairy and food processing. FDA-compliant elastomers available on request.

Wide Pressure Range

CRN series covers up to 60 bar operating pressure across pump sizes. Confirm your system maximum working pressure before selecting.

Model Information — CRN 45-3-2 A-G-A-E-HQQE
Series: CRN
Model Code: CRN 45-3-2 A-G-A-E-HQQE
Seal Type: Cartridge seal — H rubber bellows, QQ SiC/SiC faces, E EPDM O-ring
Impeller Material: Stainless steel
Housing Material: Stainless steel
Shaft Seal: HQQE
Flange Rating: PN 16
Technical Specifications
Model Number 99918244
Product Series CRN
Series Description Vertical Multistage Centrifugal Pump — All Stainless
Power 20HP
Voltage 230/460V
Phase 3.0-Phase
Frequency 60 Hz
Motor Speed 3525rpm
Pump Speed 3497rpm
Full Load Current 47,6/23,8A
Motor Type WEG
Motor Efficiency Class IE3 / NEMA Premium
Motor Efficiency IE3 91%
Insulation Class F
Protection Class (IP) ODP
Nominal Flow 238US gpm
Nominal Head 247.4ft
Max Operating Pressure 232.06psi
Max Fluid Temperature 248°F
Max Ambient Temperature 104°F
Inlet Connection 3inch
Outlet Connection 3inch
Pipe Pressure Rating PN 16
Pipe Standard ANSI
Impeller Material Stainless steel
Housing Material Stainless steel
Shaft Seal HQQE
Approvals / Certifications CURUS
Applications
HVAC: Heating
HVAC: Air Conditioning
Plumbing: Pressure Boosting
District heating
District cooling
Machining
Wash and clean
Process liquids transfer
Industrial heating
Cooling
Industrial water supply & transfer
Industrial wastewater treatment & reuse
Industrial process water treatment
Desalination
Municipal surface water
Drinking water treatment
Municipal water transportation
Municipal solar solutions
Rotor & spray irrigation
Ground water transfer
Livestock & Wildlife Watering
Water Treatment Fertigation
Chemigation & Dosing
Pivot & Lateral Irrigation
Frost protection
Solar boosting and water supply solutions
Controls and digital groundwater management
Solar controls and digital water management
Municipal solar solutions
Agriculture solar solutions
Livestock watering with solar solutions
Community solar solutions
Important Notices
Electrical Verify supply voltage, phase, and frequency match nameplate before installation: 230/460V, 3.0-Phase, 60 Hz.
Temperature limits Do not exceed max fluid temperature 248°F or max ambient temperature 104°F. Exceeding limits damages seals and motor insulation.
Dry running Do not run dry. CRN pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.
Documentation
✓ Installation and Operating Manual (IOM) — CRN Series
✓ Product Data Sheet — CRN 45-3-2 A-G-A-E-HQQE
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
EAN 5715114131063
Applications Industrial applications
Actual impeller diameter 5.34 in
Approvals CURUS
Approvals for drinking water NSF/ANSI 61
Bearing 1 SIC
Built-in motor protection NONE
Code for rubber E
Code for shaft seal HQQE
Connect code G
Connection ANSI
Connection 2 PN 16
Cooling IC 01
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 5.34 in
DOE Pump Energy Index CL 0.89
Enclosure class (IEC 34-5) IP21
Eta 1/1 0.91
Flange rating inlet 150 lb
Flange size for motor 254TC
Frequency 60 HZ
Frequency converter NONE
Full load SF current 54.7/27.4 A
Gross weight 360.0 lb
IE Eff. Class IE3 / NEMA Premium
IE efficiency IE3 91%
IE Efficiency class IE3 / NEMA Premium
Impeller Stainless steel
Impellers 3
Insulation F
Insulation class (IEC 85) F
Liquid max temp 120°C
Liquid temperature range -40 .. 248 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 232 psi / 250 °F
Maximum ambient temperature 104 °F
Maximum head 316.6 ft
Maximum operating pressure 232.06 psi
Maximum permissible operating pressure 16bar
Model B
Motor 254TC
Motor efficiency at 1/2 load 0.902
Motor efficiency at 3/4 load 0.91
Motor efficiency at full load 1 0.91
Motor protec NONE
Motor standard NEMA
Motor type WEG
n rpm 3525rpm
Net weight 342.0 lb
Number of poles 2
Number of reduced-diameter impellers 2
P2 HP 20 HP
P2 kW 15kW
Phase 3
Power (P2) required by pump 20 HP
Power factor 1 0.87
Pressure rating PN 16
Pressure rating for connection PN 16
Product family CRN 45
Pump 20 HP
Pump housing Stainless steel
Pump inlet 3
Pump outlet 3
Pump version A
Pumped liquid Water
Rated current 47.6/23.8 A
Rated flow 238 US gpm
Rated flow 2 238 US gpm
Rated head 247.4 ft
Rated head 2 247.4 ft
Rated power - P2 20 HP
Rated speed 3525 rpm
Rated voltage 3 x 230/460 V
Real Time Delivery date to be confirmed on Sales Order Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.15
Shaft seal HQQE
Stages 3
Standard NEMA
Starting current 6
Support bearing Graflon
Type WEG
Type of connection ANSI
Version A

Motor Curves

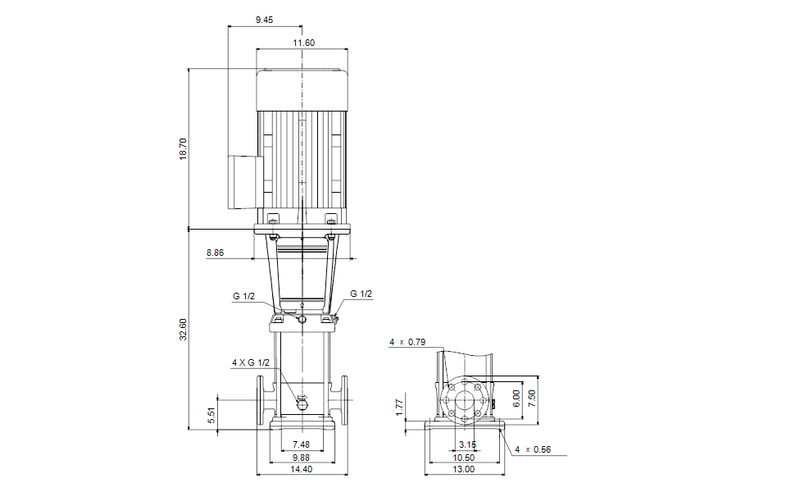

Dimensional Drawing

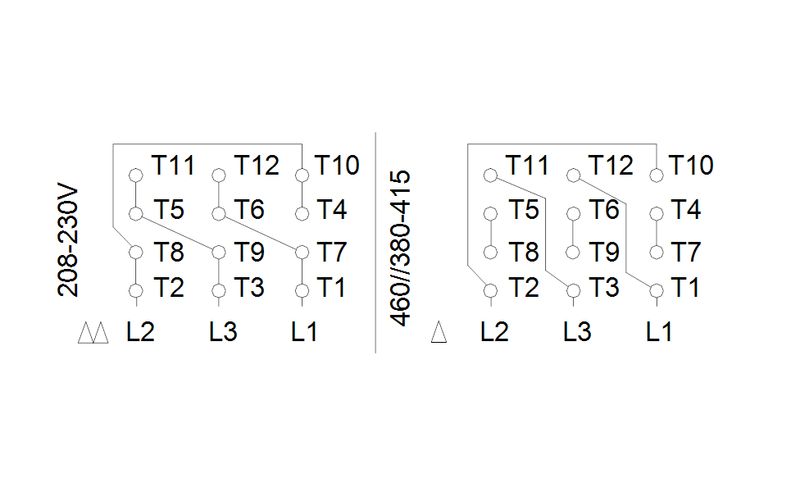

DWiring Diagram
