Name: Grundfos 97739007 - CRN 45-3-2 H-G33-A-E-HQQE | Vertical | Multistage | Centrifugal
Brand: Grundfos
SKU: 97739007
Price: 14104.95 USD
Availability: InStock

Image shown may not be actual product

Grundfos 97739007 - CRN 45-3-2 H-G33-A-E-HQQE | Vertical | Multistage | Centrifugal

Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark

CRN 45-3-2 H-G33-A-E-HQQE · Vertical Multistage Centrifugal Pump — All Stainless

CRN20HP230/460V3-Phase60 HzNEMA Premium / IE3 60HzTEFCStainless steel

The Grundfos 97739007 (CRN 45-3-2 H-G33-A-E-HQQE) is a Vertical Multistage Centrifugal Pump — All Stainless. All wetted parts in stainless steel EN 1.4401 (316). For food, beverage, pharmaceutical, and chemical applications where iron contamination must be avoided. Nominal performance: 231US gpm at 235.6ft. Rated 230/460V, 3-Phase, 60 Hz.

Power

20HP

Voltage

230/460V

Phase

3-Phase

Max Flow

231US gpm

Max Head

235.6ft

Max Pressure

232.06psi

Grundfos

World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945

Industrial Grade

NEMA Premium / IE3 60Hz motor — reduces operating cost over service life

Authorized Distributor

Genuine Grundfos product — full manufacturer warranty coverage

Expert Support

Technical help available — call (781) 281-8905 or chat

Why This Product

All Stainless Steel Construction

Every wetted component — impeller, chambers, shaft, head — is stainless steel EN 1.4401 (316). No iron contact with the pumped fluid under any condition.

Corrosion-Resistant for Aggressive Fluids

316 stainless resists chlorides, mild acids, and alkaline cleaning agents. CRN is the preferred selection for food processing, pharmaceutical, and chemical dosing systems.

Cartridge Mechanical Seal

Factory-set cartridge seal eliminates field adjustment on installation. Seal options cover standard water through aggressive chemical service.

Dual Flange Standard — DIN, ANSI, JIS

CRN ships with combined DIN/ANSI/JIS flange connections. One pump fits piping standards across North American and international installations.

3-A and FDA-Compliant Options

Selected CRN configurations are 3-A certified for dairy and food processing. FDA-compliant elastomers available on request.

Wide Pressure Range

CRN series covers up to 60 bar operating pressure across pump sizes. Confirm your system maximum working pressure before selecting.

Model Information — CRN 45-3-2 H-G33-A-E-HQQE

Series: CRN

Model Code: CRN 45-3-2 H-G33-A-E-HQQE

Seal Type: Cartridge seal — H rubber bellows, QQ SiC/SiC faces, E EPDM O-ring

Impeller Material: Stainless steel

Housing Material: Stainless steel

Shaft Seal: HQQE

Flange Rating: PN 16

Technical Specifications

Model Number	97739007
Product Series	CRN
Series Description	Vertical Multistage Centrifugal Pump — All Stainless
Power	20HP
Voltage	230/460V
Phase	3-Phase
Frequency	60 Hz
Motor Speed	3520rpm
Pump Speed	3497rpm
Full Load Current	46/23A
Motor Type	BALDOR
Motor Efficiency Class	NEMA Premium / IE3 60Hz
Motor Efficiency	91%
Insulation Class	F
Protection Class (IP)	TEFC
Nominal Flow	231US gpm
Nominal Head	235.6ft
Max Operating Pressure	232.06psi
Max Fluid Temperature	248°F
Max Ambient Temperature	104°F
Inlet Connection	3inch
Outlet Connection	3inch
Pipe Pressure Rating	PN 16
Impeller Material	Stainless steel
Housing Material	Stainless steel
Shaft Seal	HQQE

Important Notices

Electrical	Verify supply voltage, phase, and frequency match nameplate before installation: 230/460V, 3-Phase, 60 Hz.
Temperature limits	Do not exceed max fluid temperature 248°F or max ambient temperature 104°F. Exceeding limits damages seals and motor insulation.
Dry running	Do not run dry. CRN pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance	Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.

Documentation

✓ Installation and Operating Manual (IOM) — CRN Series

✓ Product Data Sheet — CRN 45-3-2 H-G33-A-E-HQQE

✓ Service Manual and Spare Parts List

Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.

Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.

Grundfos 97739007 - CRN 45-3-2 H-G33-A-E-HQQE | Vertical | Multistage | Centrifugal

Description

All Stainless Steel Construction

Corrosion-Resistant for Aggressive Fluids

Cartridge Mechanical Seal

Dual Flange Standard — DIN, ANSI, JIS

3-A and FDA-Compliant Options

Wide Pressure Range

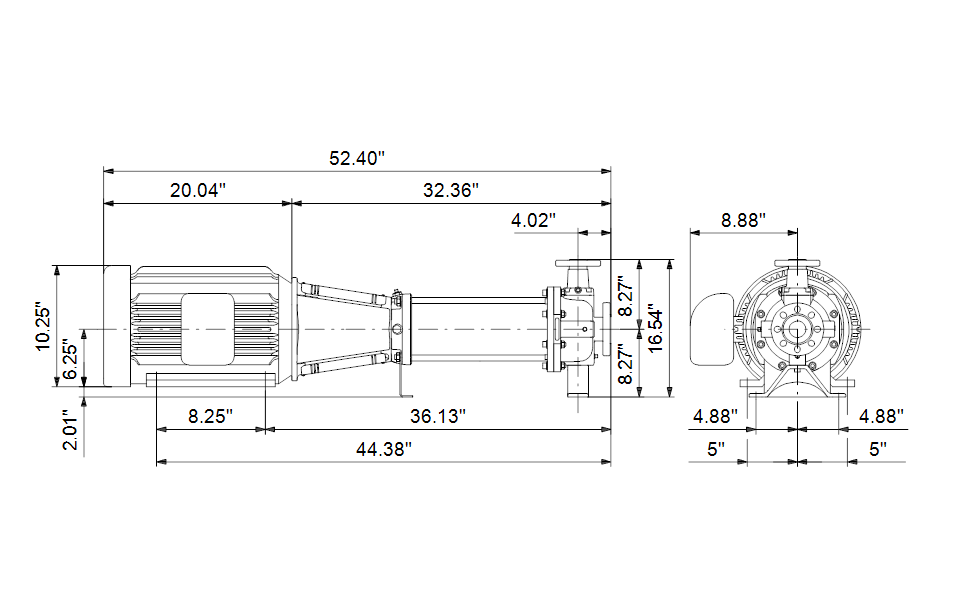

Dimensional Drawing

DWiring Diagram
