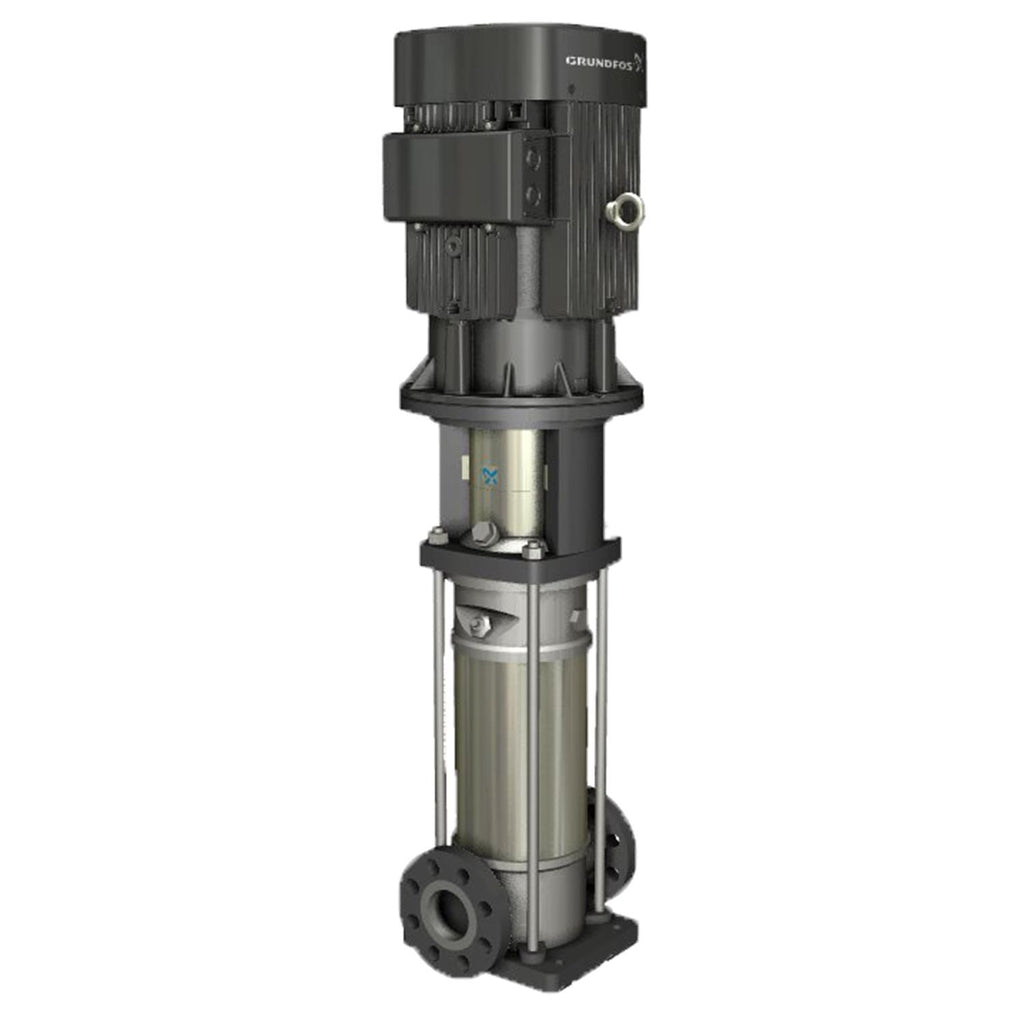

Grundfos 98943551 - CRN 45-2 A-F-H-E-PQQF | Multistage | Centrifugal | Vertical | Inline

GRUNDFOSSKU: 98943551

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

CRN 45-2 A-F-H-E-PQQF Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). Pump materials in contact with the liquid are in high-grade stainless steel. Power transmission is via a rigid split coupling. Pipe connection is via DIN flanges. The pump is fitted with a 3-phase, fan-cooled asynchronous motor.

EAN 5712604007525
Actual impeller diameter 5.34 in
Approvals EAC
Bearing 1 Graflon
Built-in motor protection PTC
Code for rubber E
Code for shaft seal PQQF
Connect code F
Connection PN 40
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 5.34 in
DOE Pump Energy Index CL 0.89
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange size for motor FF300
Frequency converter NONE
Gross weight 482.0 lb
IE Efficiency class NEMA Premium / IE3 60Hz
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range 14 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code H
Material Pricing Group 6
Max pressure at stated temp 232 psi / 250 °F
Maximum ambient temperature 140 °F
Maximum head 246.1 ft
Maximum operating pressure 16 bar
Minimum efficiency index, MEI ≥ 0.7
Model B
Motor FF300
Motor efficiency at 1/2 load 92.1-91.3 %
Motor efficiency at 3/4 load 91.8-92.3 %
Motor efficiency at full load 1 90.2-91.0 %
Motor standard IEC
Motor type 160BB
Net weight 409.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 15 kW
Power factor 1 0.90-0.86
Pressure rating for connection PN 40
Pressure sensor N
Pump 15 kW
Pump speed on which pump data are based 3528 rpm
Pump version A
Pumped liquid Water
Rated current 48
Rated flow 238 US gpm
Rated head 187.7 ft
Rated power - P2 15 kW
Rated speed 3520-3550 rpm
Rated voltage 3 x 220-277D/380-480Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1
Size of inlet connection DN 80
Size of outlet connection DN 80
Stages 2
Standard IEC
Starting current 580-890 %
Support bearing Graflon
Type 160BB
Type of connection DIN
Version A

Motor Curves

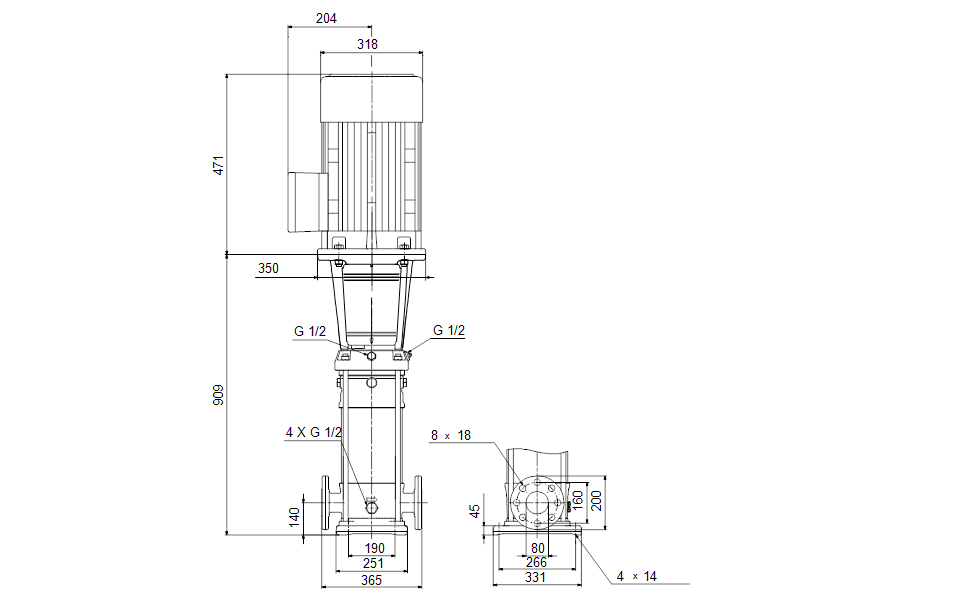

Dimensional Drawing

DWiring Diagram
