Grundfos 96545081 - CRN 45-12 A-F-A-E-HQQE | Multistage | Centrifugal | Vertical | Inline

GRUNDFOSSKU: 96545081

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

CRN 45-12 A-F-A-E-HQQE Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). Pump materials in contact with the liquid are in high-grade stainless steel. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via DIN flanges.

EAN 5700398356011
Approvals CE
Approvals for drinking water WRAS
Bearing 1 Graflon
Code for rubber E
Code for shaft seal HQQE
Connect code F
Connection PN 40
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Flange size for motor FF400
Frequency converter NONE
Gross weight 387.0 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range -40 .. 248 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 479 psi / 250 °F
Maximum head 1005 ft
Maximum operating pressure 33 bar
Minimum efficiency index, MEI ≥ 0.7
Model B
Motor FF400
Motor standard IEC
Net weight 275.0 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 45 kW
Pressure rating for connection PN 40
Pressure sensor N
Pump 45 kW
Pump speed on which pump data are based 2960 rpm
Pump version A
Pumped liquid Water
Rated flow 198 US gpm
Rated head 820.2 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Size of inlet connection DN 80
Size of outlet connection DN 80
Stages 12
Standard IEC
Support bearing Graflon
Type of connection DIN
Version A

Motor Curves

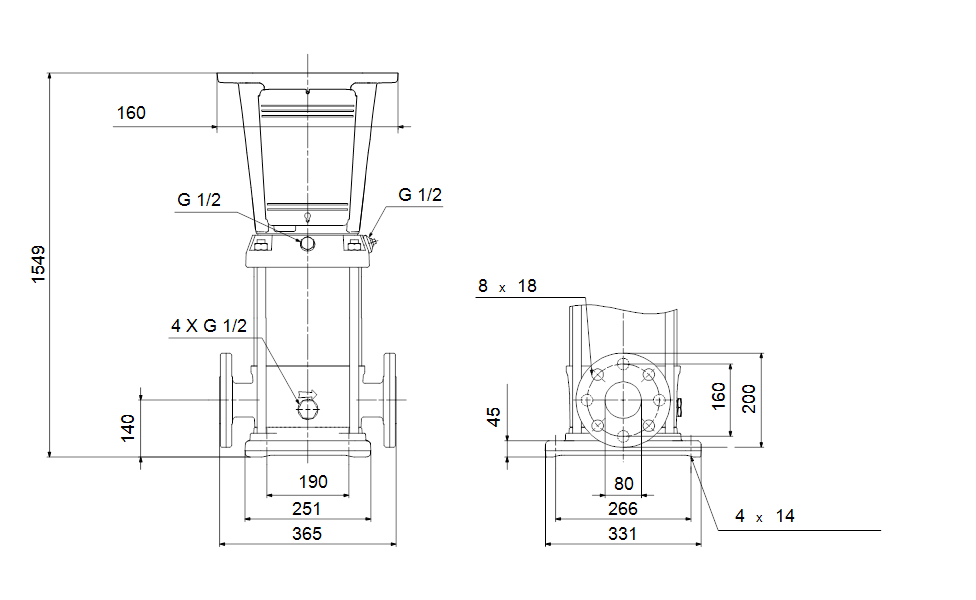

Dimensional Drawing
