Grundfos 99918200 - CRN 45-1 A-G-A-E-HQQE | Multistage | Centrifugal | Vertical | Inline

Save $5,421.05
GRUNDFOSSKU: 99918200

Price:
Sale price$7,244.95 Regular price$12,666.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

CRN 45-1 A-G-A-E-HQQE Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). Pump materials in contact with the liquid are in high-grade stainless steel. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via ANSI flanges. The pump is fitted with a 1-phase, fan-cooled asynchronous motor.

EAN 5715114130622
Applications Industrial applications
Actual impeller diameter 5.34 in
Approvals CURUS
Approvals for drinking water NSF/ANSI 61
Bearing 1 SIC
Built-in motor protection NONE
Code for rubber E
Code for shaft seal HQQE
Connect code G
Connection ANSI
Connection 2 PN 16
Cooling IC 411
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 5.34 in
DOE Pump Energy Index CL 0.89
Enclosure class (IEC 34-5) IP55
Eta 1/1 0.865
Flange rating inlet 150 lb
Flange size for motor 213TC
Frequency 60 HZ
Frequency converter NONE
Full load SF current 42.5/43.8 A
Gross weight 309.0 lb
IE efficiency 0.865
Impeller Stainless steel
Impellers 1
Insulation F
Insulation class (IEC 85) F
Liquid max temp 120°C
Liquid temperature range -40 .. 248 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 232 psi / 250 °F
Maximum ambient temperature 104 °F
Maximum head 126.6 ft
Maximum operating pressure 232.06 psi
Maximum permissible operating pressure 16bar
Model B
Motor 213TC
Motor efficiency at 1/2 load 0.815
Motor efficiency at 3/4 load 0.855
Motor efficiency at full load 1 0.865
Motor protec NONE
Motor standard NEMA
Motor type WEG
n rpm 3510rpm
Net weight 291.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
P2 HP 10 HP
P2 kW 7.5kW
Phase 1
Power (P2) required by pump 10 HP
Power factor 1 0.99
Pressure rating PN 16
Pressure rating for connection PN 16
Product family CRN 45
Pump 10 HP
Pump housing Stainless steel
Pump inlet 3
Pump outlet 3
Pump version A
Pumped liquid Water
Rated current 42.5-38.1 A
Rated flow 238 US gpm
Rated flow 2 238 US gpm
Rated head 92.2 ft
Rated head 2 92.2 ft
Rated power - P2 10 HP
Rated speed 3510 rpm
Rated voltage 1 x 208-230 V
Real Time Delivery date to be confirmed on Sales Order Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.15
Shaft seal HQQE
Stages 1
Standard NEMA
Starting current 720-720 %
Support bearing Graflon
Type WEG
Type of connection ANSI
Version A

Motor Curves

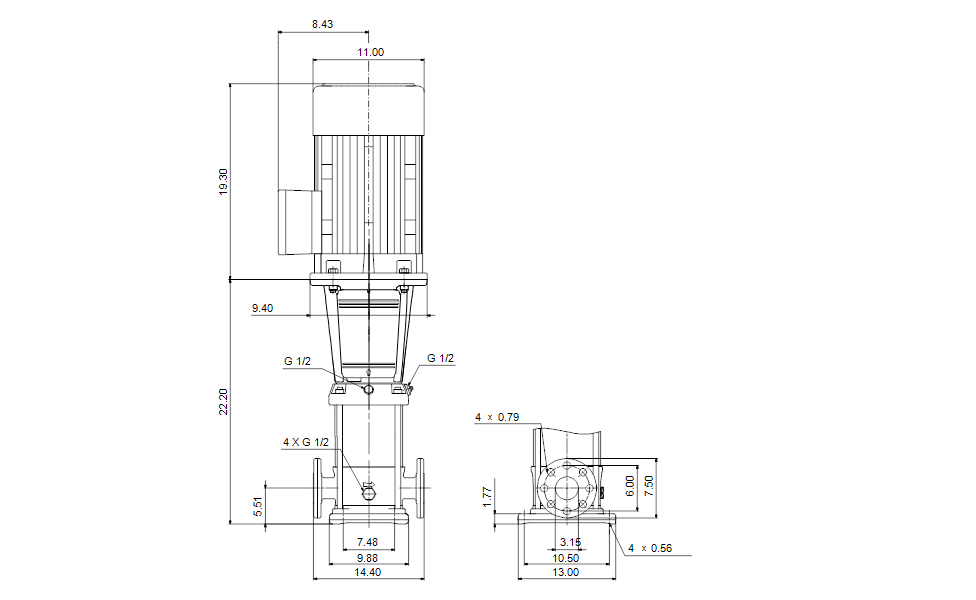

Dimensional Drawing

DWiring Diagram
