Grundfos 99532784 - CRN 32-8 A-P-A-E-HQQE | Multistage | Centrifugal | Vertical | Inline

GRUNDFOSSKU: 99532784

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

CRN 32-8 A-P-A-E-HQQE | Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). Pump materials in contact with the liquid are in high-grade stainless steel. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via PJE (Victaulic®) couplings. The pump is fitted with a 3-phase, fan-cooled asynchronous motor.

EAN 5713830638750
Actual impeller diameter 4.66 in
Approvals CURUS
Bearing 1 Graflon
Built-in motor protection NONE
Code for rubber E
Code for shaft seal HQQE
Connect code P
Connection PN 50
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 4.66 in
DOE Pump Energy Index CL 0.87
Enclosure class (IEC 34-5) IP54
Flange size for motor 324TC
Frequency converter NONE
Gross weight 688.0 lb
IE efficiency IE3 93
IE Efficiency class IE3 / NEMA Premium
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -40 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 435 psi / 250 °F
Maximum ambient temperature 104 °F
Maximum head 742.5 ft
Maximum operating pressure 30 bar
Model B
Motor 324TC
Motor efficiency at full load 1 0.936
Motor standard NEMA
Motor type BALDOR
Net weight 670.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 30 kW
Power factor 1 0.86
Pressure rating for connection PN 50
Pressure sensor N
Pump 30 kW
Pump speed on which pump data are based 3541 rpm
Pump version A
Pumped liquid Water
Rated current 90/45 A
Rated flow 159 US gpm
Rated head 587.6 ft
Rated power - P2 30 kW
Rated speed 3540 rpm
Rated voltage 3 x 230/460 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection DN 80
Size of outlet connection DN 80
Stages 8
Standard NEMA
Support bearing Graflon
Type BALDOR
Type of connection PJE
Version A

Motor Curves

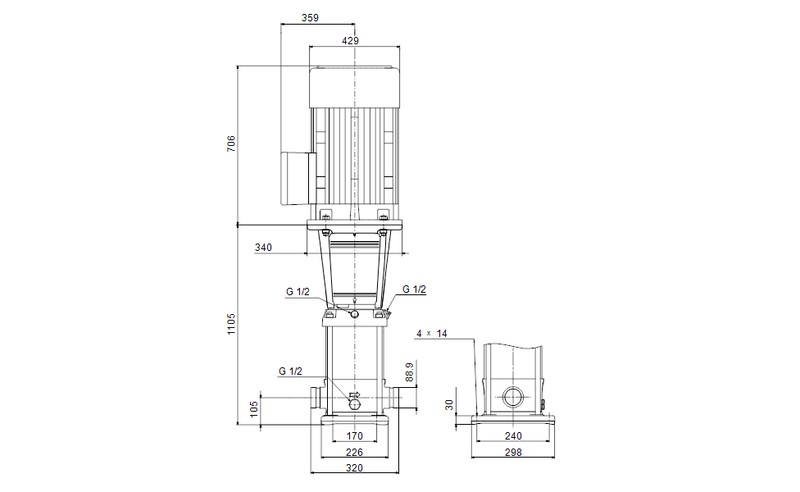

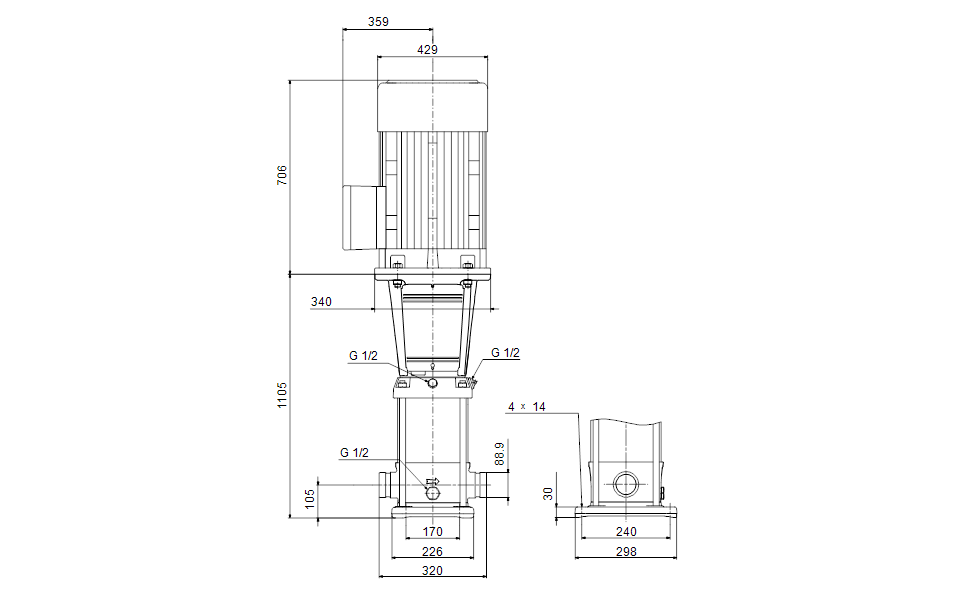

Dimensional Drawing

DWiring Diagram
