Grundfos 97738968 - CRN 32-8-2 H-GA-A-V-HQQV | Vertical | Multistage | Centrifugal

Save $9,289.31
GRUNDFOSSKU: 97738968

Price:
Sale price$12,414.69 Regular price$21,704.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 97738968 - CRN 32-8-2 H-GA-A-V-HQQV is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by the renowned vendor Grundfos, this pump is engineered for efficiency and reliability, making it an ideal choice for boosting water pressure and transferring fluids in demanding environments.

This model features a robust construction and advanced design, ensuring optimal performance in both single and multi-stage configurations. The CRN series is particularly noted for its versatility, allowing it to be used in various settings, including commercial and industrial sectors.

At Pump-Stop.com, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU that matches the Grundfos 97738968. If you encounter any difficulties in identifying the correct item, our team is here to help you navigate your options.

Explore our extensive range of Grundfos centrifugal pumps, including booster pumps, end suction models, and horizontal multistage options, to find the perfect fit for your needs.

Approvals on nameplate CE
Bearing 1 Graflon
Code for rubber V
Code for shaft seal HQQV
Connect code GA
Connection PN 40
Curve tolerance ISO9906:2012 3B
Flange rating inlet 300 lb
Flange size for motor 284TC
Frequency converter NONE
Gross weight 304.0 lb
Impeller Stainless steel
Impellers 2
Liquid max temp 194°F
Liquid temperature range -4 .. 194 °F
Low NPSH N
Material code A
Maximum head 668.7 ft
Maximum operating pressure 435.11 psi
Model B
Motor 284TC
Motor standard NEMA
n rpm 3541rpm
Net weight 185.0 lb
Number of reduced-diameter impellers 2
Pressure rating for connection PN 40
Pressure sensor N
Pump Y
Pump version H
Rated flow 136 US gpm
Rated head 540.7 ft
Rubber V
Sales region USA
Shaft Product name:CRN 32-8-2 H-GA-A-V-HQQV
Shaft seal HQQV
Stages 8
Standard NEMA
Support bearing Graflon
Version H

Motor Curves

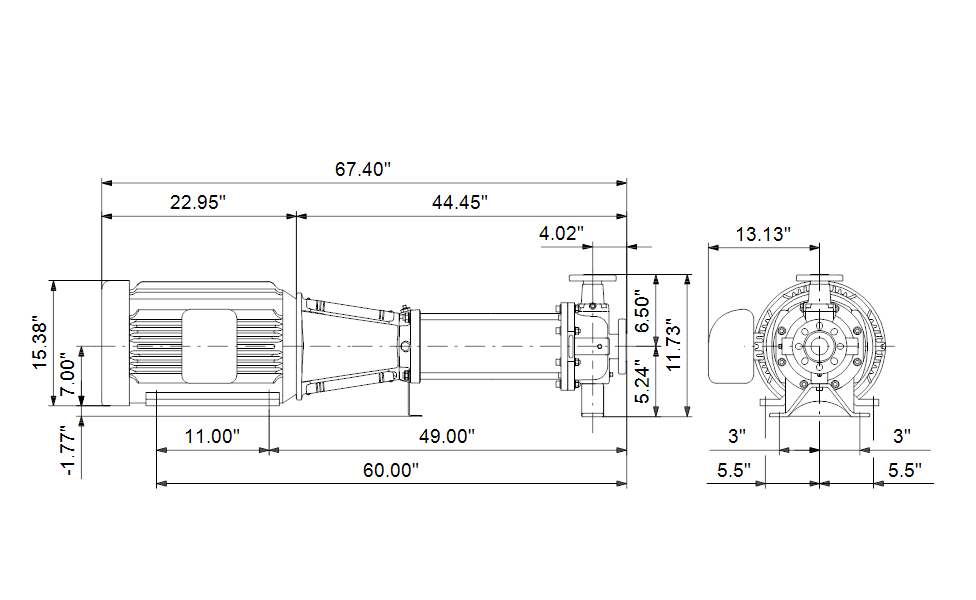

Dimensional Drawing
