Grundfos 96418679 - CRN 32-8-2 A-G-A-E-HQQE
Grundfos 96418679 - CRN 32-8-2 A-G-A-E-HQQE
Grundfos 96418679 - CRN 32-8-2 A-G-A-E-HQQE
Grundfos 96418679 - CRN 32-8-2 A-G-A-E-HQQE

Grundfos 96418679 - CRN 32-8-2 A-G-A-E-HQQE

Save $10,062.72
GRUNDFOSSKU: 96418679
Price:
$10,901.28 $20,964.00
Delivery date to be confirmed on Sales Order
Chat or Call for most up to date lead times. (781) 281-8905

Description

CRN 32-8-2 A-G-A-E-HQQE | Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). Pump materials in contact with the liquid are in high-grade stainless steel. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via ANSI flanges.

EAN 5700390730277
Applications Industrial applications
Actual impeller diameter 4.66 in
Approvals CE
Approvals for drinking water NSF/ANSI 61
Bearing 1 SIC
Code for rubber E
Code for shaft seal HQQE
Connect code G
Connection ANSI
Connection 2 PN 40
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 4.66 in
DOE Pump Energy Index CL 0.87
Flange rating inlet 300 lb
Flange size for motor 284TC
Flange standard ANSI
Frequency 60 HZ
Frequency converter NONE
Gross weight 199.0 lb
Impeller Stainless steel
Impellers 8
Liquid max temp 120°C
Liquid temperature range -40 .. 248 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 435 psi / 250 °F
Maximum head 705.4 ft
Maximum operating pressure 435.11 psi
Maximum permissible operating pressure 30bar
Model B
Motor 284TC
Motor standard NEMA
n rpm 3541rpm
Net weight 181.0 lb
Number of reduced-diameter impellers 2
Power (P2) required by pump 30 HP
Pressure rating PN 40
Pressure rating for connection PN 40
Product family CRN 32
Pump 30 HP
Pump housing Stainless steel
Pump inlet 2.5
Pump outlet 2.5
Pump version A
Pumped liquid Water
Rated flow 159 US gpm
Rated flow 2 159 US gpm
Rated head 557.8 ft
Rated head 2 557.8 ft
Real Time Delivery date to be confirmed on Sales Order Update with real time availability and Net price
Rubber E
Sales region Namreg
Selected liquid temperature 68 °F
Shaft seal HQQE
Stages 8
Standard NEMA
Support bearing Graflon
Type of connection ANSI
Version A

Motor Curves

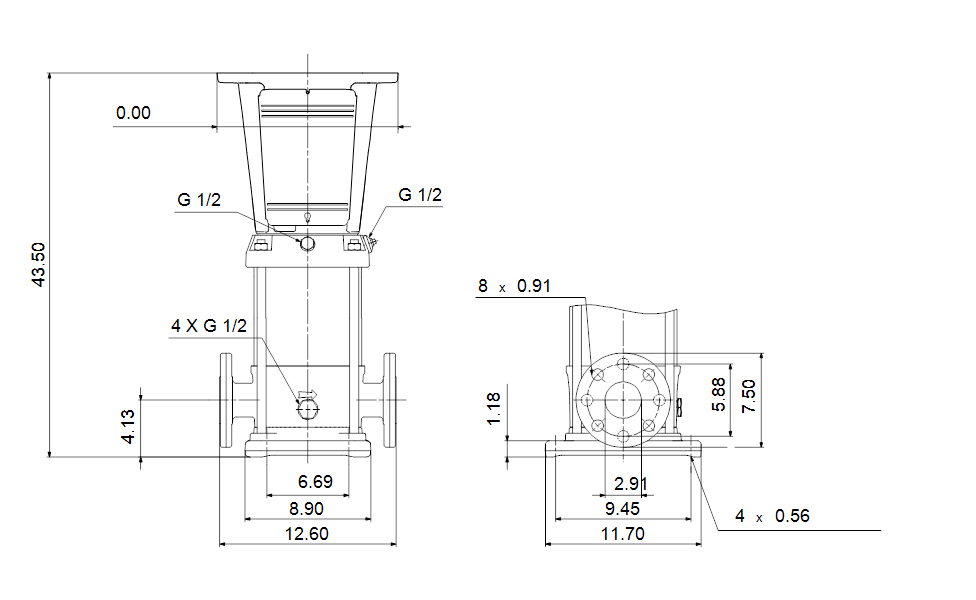

Dimensional Drawing
