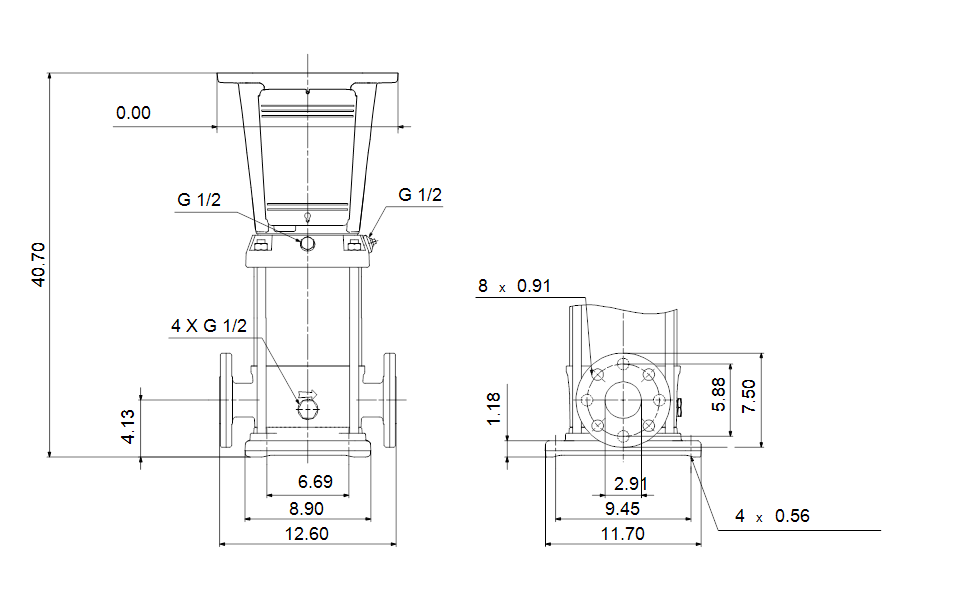

Grundfos 96418689 - CRN 32-7-2 A-G-A-V-HQQV | Multistage | Centrifugal | Vertical | Inline
Grundfos 96418689 - CRN 32-7-2 A-G-A-V-HQQV | Multistage | Centrifugal | Vertical | Inline
Roll over image to zoom in Click on image to zoom
Grundfos 96418689 - CRN 32-7-2 A-G-A-V-HQQV | Multistage | Centrifugal | Vertical | InlineGrundfos 96418689 - CRN 32-7-2 A-G-A-V-HQQV | Multistage | Centrifugal | Vertical | Inline
Grundfos Pumps & Systems

Grundfos 96418689 - CRN 32-7-2 A-G-A-V-HQQV | Multistage | Centrifugal | Vertical | Inline

GrundfosSKU: 96418689
Price:
$24,115.00

Delivery date to be confirmed on Sales Order

or Call for most up to date lead times. (781) 281-8905

Description

Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
CRN 32-7-2 A-G-A-V-HQQV · Vertical Multistage Centrifugal Pump — All Stainless
CRN

The Grundfos 96418689 (CRN 32-7-2 A-G-A-V-HQQV) is a Vertical Multistage Centrifugal Pump — All Stainless. All wetted parts in stainless steel EN 1.4401 (316). For food, beverage, pharmaceutical, and chemical applications where iron contamination must be avoided.

Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Industrial Grade
Built and tested to IEC and NEMA standards
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product

All Stainless Steel Construction

Every wetted component — impeller, chambers, shaft, head — is stainless steel EN 1.4401 (316). No iron contact with the pumped fluid under any condition.

Corrosion-Resistant for Aggressive Fluids

316 stainless resists chlorides, mild acids, and alkaline cleaning agents. CRN is the preferred selection for food processing, pharmaceutical, and chemical dosing systems.

Cartridge Mechanical Seal

Factory-set cartridge seal eliminates field adjustment on installation. Seal options cover standard water through aggressive chemical service.

Dual Flange Standard — DIN, ANSI, JIS

CRN ships with combined DIN/ANSI/JIS flange connections. One pump fits piping standards across North American and international installations.

3-A and FDA-Compliant Options

Selected CRN configurations are 3-A certified for dairy and food processing. FDA-compliant elastomers available on request.

Wide Pressure Range

CRN series covers up to 60 bar operating pressure across pump sizes. Confirm your system maximum working pressure before selecting.

Model Information — CRN 32-7-2 A-G-A-V-HQQV
Series: CRN
Model Code: CRN 32-7-2 A-G-A-V-HQQV
Seal Type: Cartridge seal — H rubber bellows, QQ SiC/SiC faces, V FKM O-ring
Technical Specifications
Model Number 96418689
Product Series CRN
Series Description Vertical Multistage Centrifugal Pump — All Stainless
Seal Code HQQV
Seal Description Cartridge seal — H rubber bellows, QQ SiC/SiC faces, V FKM O-ring
Important Notices
Electrical Verify supply voltage, phase, and frequency match nameplate before installation.
Temperature limits Do not exceed max fluid temperature per nameplate. Exceeding limits damages seals and motor insulation.
Dry running Do not run dry. CRN pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.
Documentation
✓ Installation and Operating Manual (IOM) — CRN Series
✓ Product Data Sheet — CRN 32-7-2 A-G-A-V-HQQV
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
Grundfos — 96418689 · CRN 32-7-2 A-G-A-V-HQQVAuthorized Grundfos Distributor · pump-stop.com
EAN
5700390730635
Applications
Industrial applications
Actual impeller diameter
4.66 in
Approvals
CE
Bearing 1
SIC
Code for rubber
V
Code for shaft seal
HQQV
Connect code
G
Connection
ANSI
Connection 2
PN 40
Curve tolerance
ISO9906:2012 3B
Density
62.29 lb/ft³
Diameter
4.66 in
DOE Pump Energy Index CL
0.87
Flange rating inlet
300 lb
Flange size for motor
284TC
Flange standard
ANSI
Frequency
60 HZ
Frequency converter
NONE
Gross weight
187.0 lb
Impeller
Stainless steel
Impellers
7
Liquid max temp
90°C
Liquid temperature range
-4 .. 194 °F
Low NPSH
N
Material code
A
Material Pricing Group
6
Max pressure at stated temp
435 psi / 194 °F
Maximum head
609.6 ft
Maximum operating pressure
435.11 psi
Maximum permissible operating pressure
30bar
Model
B
Motor
284TC
Motor standard
NEMA
n rpm
3521rpm
Net weight
169.0 lb
Number of reduced-diameter impellers
2
Power (P2) required by pump
25 HP
Pressure rating
PN 40
Pressure rating for connection
PN 40
Product family
CRN 32
Pump
25 HP
Pump housing
Stainless steel
Pump inlet
2.5
Pump outlet
2.5
Pump version
A
Pumped liquid
Water
Rated flow
159 US gpm
Rated flow 2
159 US gpm
Rated head
475.1 ft
Rated head 2
475.1 ft
Real Time
Delivery date to be confirmed on Sales Order Update with real time availability and Net price
Rubber
V
Sales region
Namreg
Selected liquid temperature
68 °F
Shaft seal
HQQV
Stages
7
Standard
NEMA
Support bearing
Graflon
Type of connection
ANSI
Version
A
