Description
Grundfos 96418687 - CRN 32-5-2 A-G-A-V-HQQV This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.
EAN
5700390730550
Applications
Industrial applications
Actual impeller diameter
4.66 in
Approvals
CE
Bearing 1
SIC
Code for rubber
V
Code for shaft seal
HQQV
Connect code
G
Connection
ANSI
Connection 2
PN 16
Curve tolerance
ISO9906:2012 3B
Density
62.29 lb/ft³
Diameter
4.66 in
DOE Pump Energy Index CL
0.87
Flange rating inlet
150 lb
Flange size for motor
254TC
Flange standard
ANSI
Frequency
60 HZ
Frequency converter
NONE
Gross weight
174.0 lb
Impeller
Stainless steel
Impellers
5
Liquid max temp
90°C
Liquid temperature range
-4 .. 194 °F
Low NPSH
N
Material code
A
Material Pricing Group
6
Max pressure at stated temp
232 psi / 194 °F
Maximum head
424.2 ft
Maximum operating pressure
232.06 psi
Maximum permissible operating pressure
16bar
Model
B
Motor
254TC
Motor standard
NEMA
n rpm
3497rpm
Net weight
156.0 lb
Number of reduced-diameter impellers
2
Power (P2) required by pump
20 HP
Pressure rating
PN 16
Pressure rating for connection
PN 16
Product family
CRN 32
Pump
20 HP
Pump housing
Stainless steel
Pump inlet
2.5
Pump outlet
2.5
Pump version
A
Pumped liquid
Water
Rated flow
159 US gpm
Rated flow 2
159 US gpm
Rated head
325.1 ft
Rated head 2
325.1 ft
Real Time
Delivery date to be confirmed on Sales Order Update with real time availability and Net price
Rubber
V
Sales region
Namreg
Selected liquid temperature
68 °F
Shaft seal
HQQV
Stages
5
Standard
NEMA
Support bearing
Graflon
Type of connection
ANSI
Version
A
Motor Curves

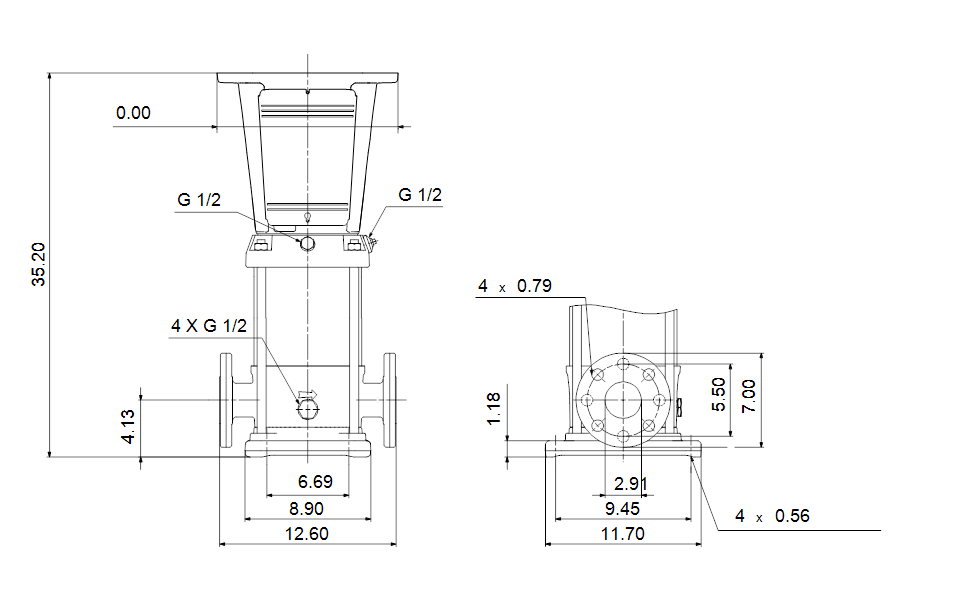

Dimensional Drawing
CRN PUMP MODEL GS (Product brochure)
CR, CRI, CRN, CRT (I & O instructions)
CR, CRI, CRN - Vertical multistage centrifugal pumps (Data booklet)
CR, CRI, CRN, CRT, CRE, CRIE, CRNE, CRTE (Custom-built pumps) (Data booklet)
CR, CRI, CRN 1, 1S, 3 & 5 (Dismantling & Reassembly) (Service Manual)
CRN3-H (Industrial Service Manual)
