Grundfos 99472151 - CRN 32-3-2 K-G-A-V-PQQV | Multistage | Centrifugal | Vertical | Inline

GRUNDFOSSKU: 99472151

Contact for price
or Call for most up to date lead times. (781) 281-8905

Description

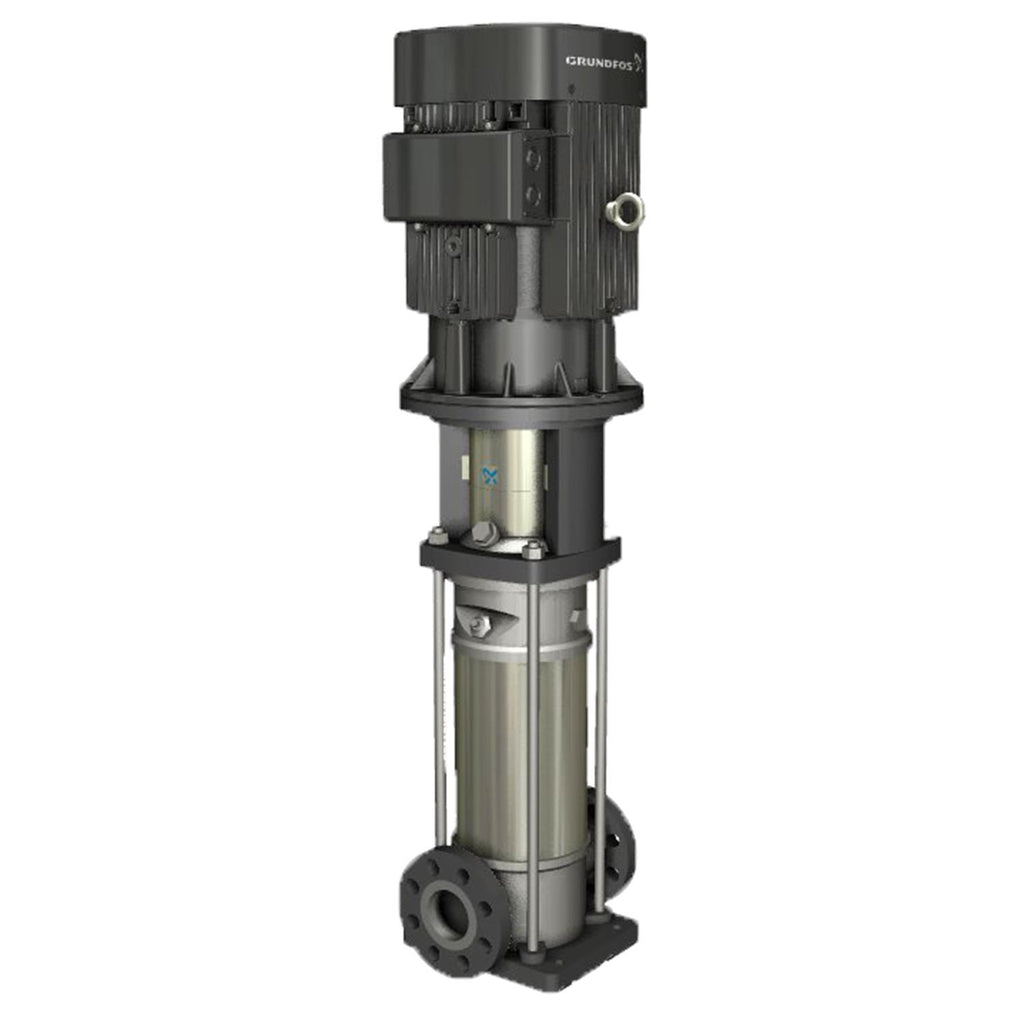

CRN 32-3-2 K-G-A-V-PQQV | Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). Pump materials in contact with the liquid are in high-grade stainless steel. A special "Low NPSH" first-stage design reduces the pump's NPSHr value. Power transmission is via a rigid split coupling. Pipe connection is via ANSI flanges.

EAN 5713829673021
Actual impeller diameter 4.66 in
Approvals CE
Bearing 1 Graflon
Code for rubber V
Code for shaft seal PQQV
Connect code G
Connection PN 16
Curve tolerance ISO9906:2012 3B
Diameter 4.66 in
DOE Pump Energy Index CL 0.87
Flange rating inlet 150 lb
Flange size for motor 254TC
Frequency converter NONE
Gross weight 189.0 lb
Impeller Stainless steel
Impellers 2
Liquid temperature range -4 .. 194 °F
Low NPSH Y
Material code A
Material Pricing Group 6
Max pressure at stated temp 232 psi / 194 °F
Maximum head 241.5 ft
Maximum operating pressure 16 bar
Model B
Motor 254TC
Motor standard NEMA
Net weight 171.0 lb
Number of reduced-diameter impellers 2
Pressure rating for connection PN 16
Pressure sensor N
Pump speed on which pump data are based 3470 rpm
Pump version K
Rated flow 159 US gpm
Rated head 180.1 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Size of inlet connection 2 1/2 inch
Size of outlet connection 2 1/2 inch
Stages 3
Standard NEMA
Support bearing Graflon
Type of connection ANSI
Version K
