Grundfos 99918028 - CRN 32-2 A-G-A-V-HQQV | Vertical | Multistage | Centrifugal

Save $5,893.56
GRUNDFOSSKU: 99918028

Price:
Sale price$7,876.44 Regular price$13,770.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 99918028 - CRN 32-2 A-G-A-V-HQQV is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by the renowned vendor Grundfos, this pump is engineered to deliver reliable and efficient performance in demanding environments.

With its robust construction and advanced design, the CRN 32-2 A-G-A-V-HQQV model is ideal for high-pressure applications, ensuring optimal fluid transfer and circulation. This pump is part of the extensive range of Grundfos centrifugal pumps, which includes both single and multi-stage options, making it a versatile choice for various operational needs.

At Pump-Stop.com, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU that matches the Grundfos 99918028. If you encounter any difficulties in locating the right item, our team is here to help you find the perfect solution.

EAN 5715114128803
Applications Industrial applications
Actual impeller diameter 4.66 in
Approvals CURUS
Bearing 1 SIC
Built-in motor protection NONE
Code for rubber V
Code for shaft seal HQQV
Connect code G
Connection ANSI
Connection 2 PN 16
Cooling IC 411
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 4.66 in
DOE Pump Energy Index CL 0.87
Enclosure class (IEC 34-5) IP55
Eta 1/1 0.865
Flange rating inlet 150 lb
Flange size for motor 213TC
Frequency 60 HZ
Frequency converter NONE
Full load SF current 42.5/43.8 A
Gross weight 300.0 lb
IE efficiency 0.865
Impeller Stainless steel
Impellers 2
Insulation F
Insulation class (IEC 85) F
Liquid max temp 90°C
Liquid temperature range -4 .. 194 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 232 psi / 194 °F
Maximum ambient temperature 104 °F
Maximum head 187.7 ft
Maximum operating pressure 232.06 psi
Maximum permissible operating pressure 16bar
Model B
Motor 213TC
Motor efficiency at 1/2 load 0.815
Motor efficiency at 3/4 load 0.855
Motor efficiency at full load 1 0.865
Motor protec NONE
Motor standard NEMA
Motor type WEG
n rpm 3510rpm
Net weight 282.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
P2 HP 10 HP
P2 kW 7.5kW
Phase 1
Power (P2) required by pump 10 HP
Power factor 1 0.99
Pressure rating PN 16
Pressure rating for connection PN 16
Product family CRN 32
Pump 10 HP
Pump housing Stainless steel
Pump inlet 2.5
Pump outlet 2.5
Pump version A
Pumped liquid Water
Rated current 42.5-38.1 A
Rated flow 159 US gpm
Rated flow 2 159 US gpm
Rated head 141.4 ft
Rated head 2 141.4 ft
Rated power - P2 10 HP
Rated speed 3510 rpm
Rated voltage 1 x 208-230 V
Real Time Delivery date to be confirmed on Sales Order Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Service factor 1.15
Shaft seal HQQV
Stages 2
Standard NEMA
Starting current 720-720 %
Support bearing Graflon
Type WEG
Type of connection ANSI
Version A

Motor Curves

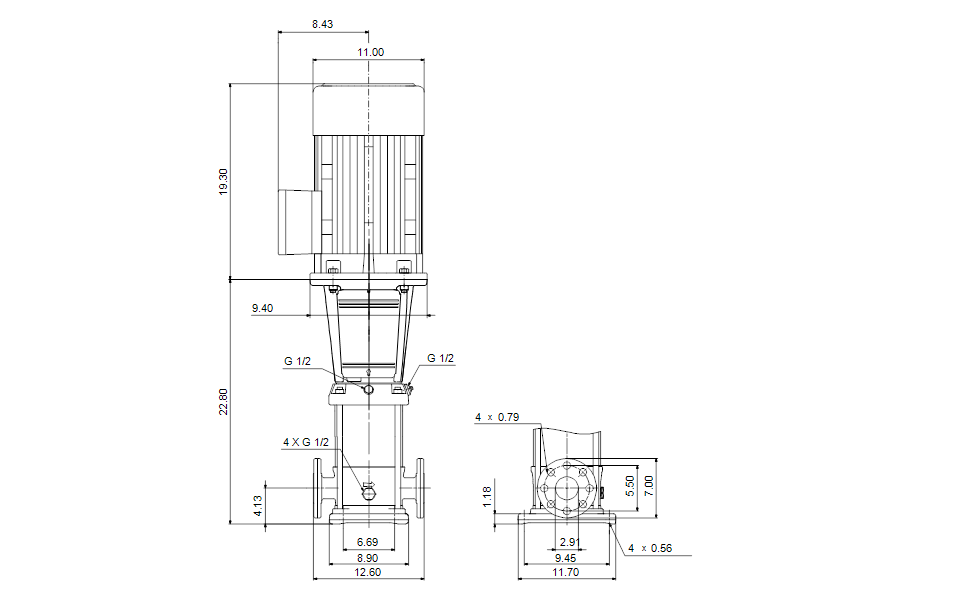

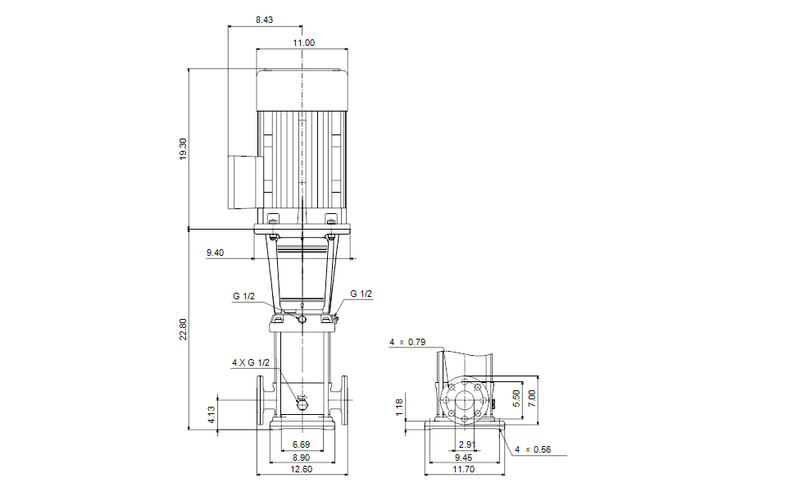

Dimensional Drawing

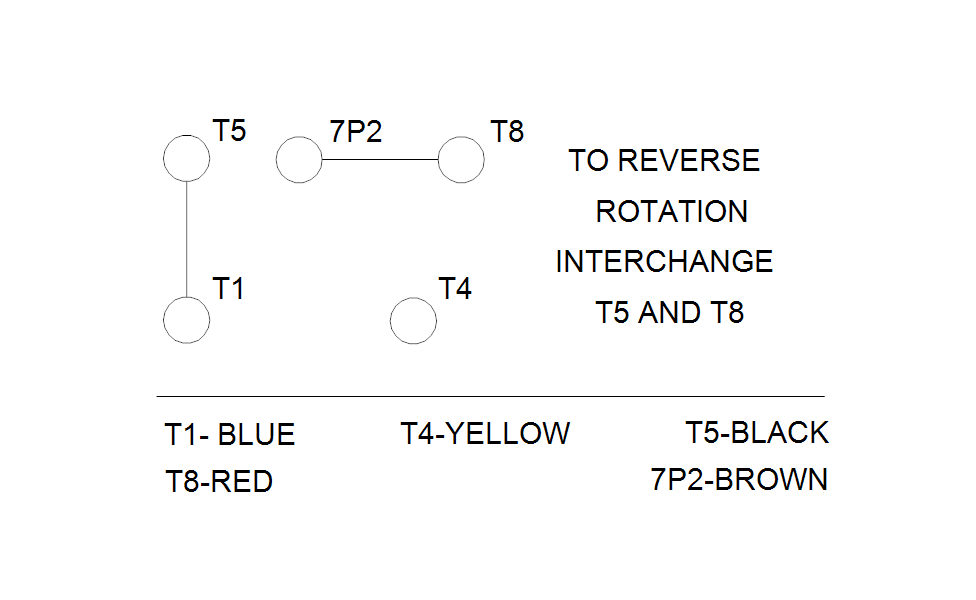

DWiring Diagram
