Grundfos 98721465 - CRN 32-2 A-G-N-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 98721465

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 98721465 is a CRN 32-2 vertical multistage centrifugal pump designed for industrial in-line, high-pressure applications where compact vertical mounting is required. Technicians and plant maintenance crews commonly use this unit for pressure boosting and process fluid transfer.

Key features

  • Manufactured for industrial applications with multistage centrifugal design
  • Configured for vertical, in-line installation and high-pressure service
  • Delivers reliable pressure boosting and consistent flow for process systems

Applications

Suitable for boiler feed, pressure boosting, water supply, and general industrial process duties where a vertical multistage centrifugal pump is specified.

Compatibility note: Match the exact model or SKU before ordering. For help, call 781-281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 98721465

EAN 5712600451759
Actual impeller diameter 4.66 in
Approvals CURUS
Approvals for drinking water NSF/ANSI 61
Bearing 1 Graflon
Built-in motor protection NONE
Code for rubber E
Code for shaft seal HQQE
Connect code G
Connection PN 16
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 4.66 in
DOE Pump Energy Index CL 0.87
Enclosure class (IEC 34-5) 54 Dust/Splashing
Flange rating inlet 150 lb
Flange size for motor 213TC
Frequency converter NONE
Gross weight 320.0 lb
IE efficiency IE3 91%
IE Efficiency class NEMA Premium / IE3 60Hz
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -40 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code N
Material Pricing Group 6
Max pressure at stated temp 232 psi / 250 °F
Maximum ambient temperature 104 °F
Maximum head 183.4 ft
Maximum operating pressure 16 bar
Model B
Motor 213TC
Motor efficiency at full load 1 0.91
Motor standard NEMA
Motor type BALDOR
Net weight 302.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 7.5 kW
Pressure rating for connection PN 16
Pressure sensor N
Pump 7.5 kW
Pump speed on which pump data are based 3467 rpm
Pump version A
Pumped liquid Water
Rated current 24.8-23.8/11.9 A
Rated flow 159 US gpm
Rated head 132.9 ft
Rated power - P2 7.5 kW
Rated speed 3525 rpm
Rated voltage 3 x 208-230/460 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection 2 1/2 inch
Size of outlet connection 2 1/2 inch
Stages 2
Standard NEMA
Support bearing Graflon
Type BALDOR
Type of connection ANSI
Version A

Motor Curves

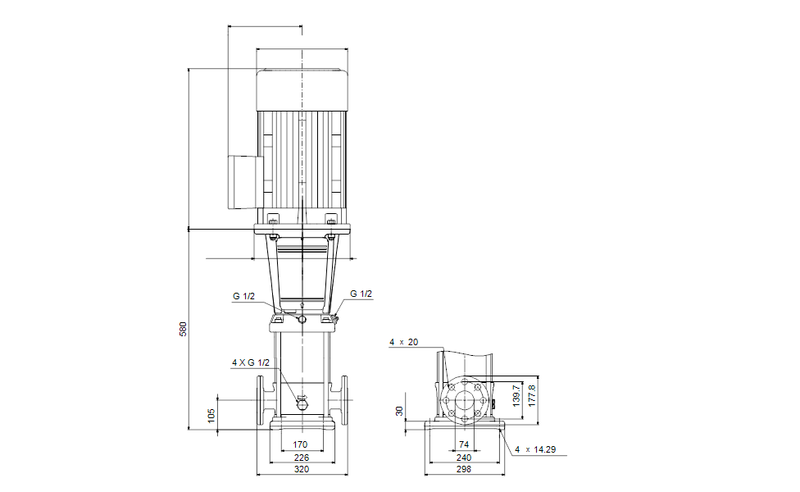

Dimensional Drawing

DWiring Diagram
