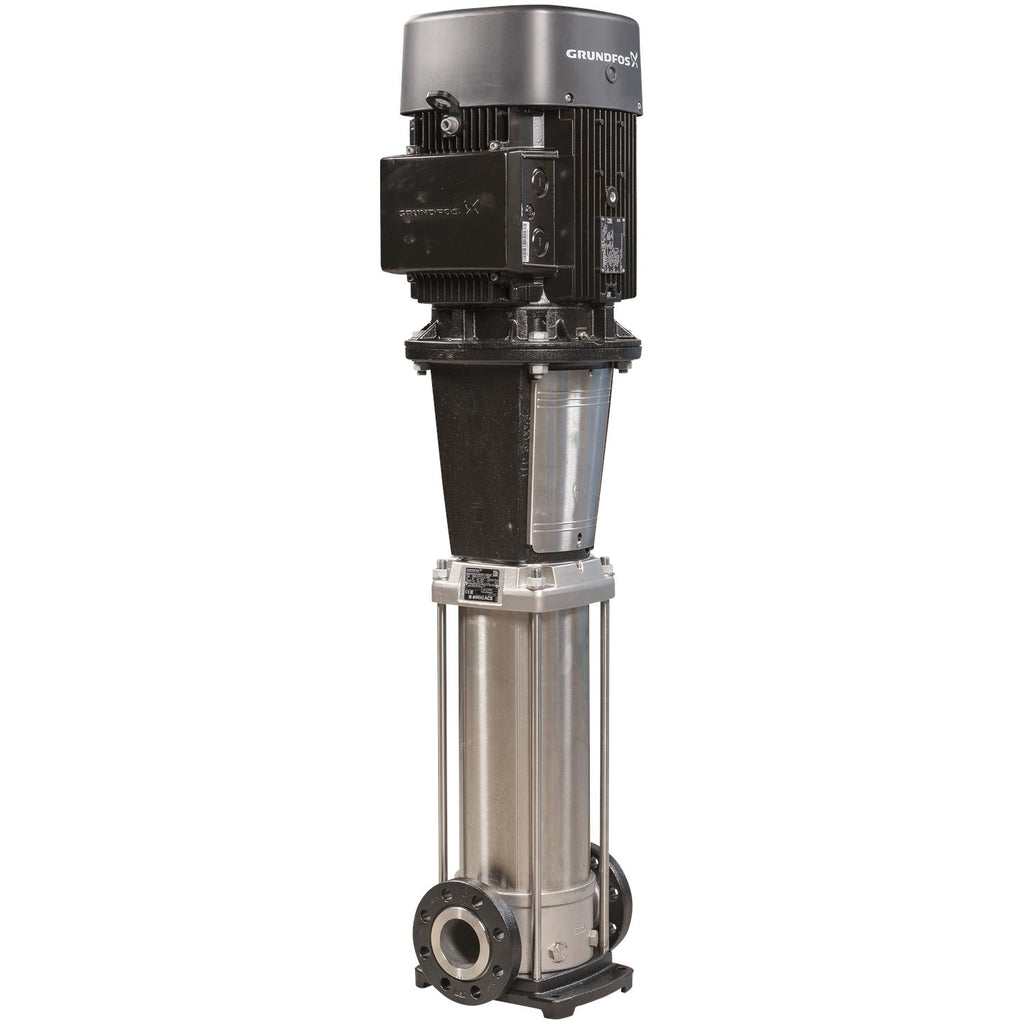

Grundfos 98675936 - CRN 32-2 A-F-A-V-HQQV | Multistage | Centrifugal | Vertical | Inline

GRUNDFOSSKU: 98675936

Contact for price
Build to order – stocked components, typically available in 5 days
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
CRN 32-2 A-F-A-V-HQQV · Vertical Multistage Centrifugal Pump — All Stainless
CRN10HP400-480D/690YV3.0-Phase60 HzNEMA Premium / IE3 60HzIP55 Dust/JettingStainless steel

The Grundfos 98675936 (CRN 32-2 A-F-A-V-HQQV) is a Vertical Multistage Centrifugal Pump — All Stainless. All wetted parts in stainless steel EN 1.4401 (316). For food, beverage, pharmaceutical, and chemical applications where iron contamination must be avoided. Nominal performance: 159US gpm at 141.4ft. Rated 400-480D/690YV, 3.0-Phase, 60 Hz. Applications include HVAC: Heating, HVAC: Air Conditioning, Plumbing: Pressure Boosting and more.

Power
10HP
Voltage
400-480D/690YV
Phase
3.0-Phase
Max Flow
159US gpm
Max Head
141.4ft
Max Pressure
232.06psi
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Industrial Grade
NEMA Premium / IE3 60Hz motor — reduces operating cost over service life
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product

All Stainless Steel Construction

Every wetted component — impeller, chambers, shaft, head — is stainless steel EN 1.4401 (316). No iron contact with the pumped fluid under any condition.

Corrosion-Resistant for Aggressive Fluids

316 stainless resists chlorides, mild acids, and alkaline cleaning agents. CRN is the preferred selection for food processing, pharmaceutical, and chemical dosing systems.

Cartridge Mechanical Seal

Factory-set cartridge seal eliminates field adjustment on installation. Seal options cover standard water through aggressive chemical service.

Dual Flange Standard — DIN, ANSI, JIS

CRN ships with combined DIN/ANSI/JIS flange connections. One pump fits piping standards across North American and international installations.

3-A and FDA-Compliant Options

Selected CRN configurations are 3-A certified for dairy and food processing. FDA-compliant elastomers available on request.

Wide Pressure Range

CRN series covers up to 60 bar operating pressure across pump sizes. Confirm your system maximum working pressure before selecting.

Model Information — CRN 32-2 A-F-A-V-HQQV
Series: CRN
Model Code: CRN 32-2 A-F-A-V-HQQV
Seal Type: Cartridge seal — H rubber bellows, QQ SiC/SiC faces, V FKM O-ring
Impeller Material: Stainless steel
Housing Material: Stainless steel
Shaft Seal: HQQV
Flange Rating: PN 40
Technical Specifications
Model Number 98675936
Product Series CRN
Series Description Vertical Multistage Centrifugal Pump — All Stainless
Power 10HP
Voltage 400-480D/690YV
Phase 3.0-Phase
Frequency 60 Hz
Motor Speed 3500-3530rpm
Pump Speed 3525rpm
Full Load Current 13.8-12.0/8.10A
Motor Type 132SB
Motor Protection PTC
Motor Efficiency Class NEMA Premium / IE3 60Hz
Motor Efficiency 90.2-90.2%
Insulation Class F
Protection Class (IP) IP55 Dust/Jetting
Nominal Flow 159US gpm
Nominal Head 141.4ft
Max Operating Pressure 232.06psi
Max Fluid Temperature 194°F
Max Ambient Temperature 140°F
Inlet Connection DN 65
Outlet Connection DN 65
Pipe Pressure Rating PN 40
Pipe Standard DIN
Impeller Material Stainless steel
Housing Material Stainless steel
Shaft Seal HQQV
Approvals / Certifications CE, UKCA, SEPRO
Applications
HVAC: Heating
HVAC: Air Conditioning
Plumbing: Pressure Boosting
District heating
District cooling
Machining
Wash and clean
Process liquids transfer
Industrial heating
Cooling
Industrial water supply & transfer
Industrial wastewater treatment & reuse
Industrial process water treatment
Desalination
Municipal surface water
Drinking water treatment
Municipal water transportation
Municipal solar solutions
Rotor & spray irrigation
Ground water transfer
Livestock & Wildlife Watering
Water Treatment Fertigation
Chemigation & Dosing
Pivot & Lateral Irrigation
Frost protection
Solar boosting and water supply solutions
Controls and digital groundwater management
Solar controls and digital water management
Municipal solar solutions
Agriculture solar solutions
Livestock watering with solar solutions
Community solar solutions
Important Notices
Electrical Verify supply voltage, phase, and frequency match nameplate before installation: 400-480D/690YV, 3.0-Phase, 60 Hz.
Temperature limits Do not exceed max fluid temperature 194°F or max ambient temperature 140°F. Exceeding limits damages seals and motor insulation.
Dry running Do not run dry. CRN pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.
Documentation
✓ Installation and Operating Manual (IOM) — CRN Series
✓ Product Data Sheet — CRN 32-2 A-F-A-V-HQQV
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
EAN 5711499415880
Approvals EAC,UKCA,SEPRO
Approvals for drinking water WRAS
Bearing 1 SIC
Built-in motor protection PTC
Code for rubber V
Code for shaft seal HQQV
Connect code F
Connection DIN
Connection 2 DN 65
Connection 3 DN 65
Connection 4 PN 40
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) 55 Dust/Jetting
Eta 1/1 90.2-90.2%
Flange size for motor FF265
Frequency 60 HZ
Frequency converter NONE
Gross weight 284.0 lb
IE Eff. Class NEMA Premium / IE3 60Hz
IE efficiency classNEMA Premium / IE3 60Hz
IE Efficiency class NEMA Premium / IE3 60Hz
Impeller Stainless steel
Impellers 2
Insulation F
Insulation class (IEC 85) F
Liquid max temp 90°C
Liquid temperature range -4 .. 194 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 232 psi / 194 °F
Maximum ambient temperature 140 °F
Maximum head 187.7 ft
Maximum operating pressure 232.06 psi
Maximum permissible operating pressure 16bar
MEI 0.7
Minimum efficiency index, MEI ≥ 0.7
Model B
Motor FF265
Motor efficiency at 1/2 load 91.1-89.7 %
Motor efficiency at 3/4 load 90.9-90.7 %
Motor efficiency at full load 1 90.2-90.2 %
Motor protec PTC
Motor standard IEC
Motor type 132SB
n rpm 3500-3530rpm
Net weight 234.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
P2 HP 10 HP
P2 kW 7.5kW
Phase 3
Power (P2) required by pump 10 HP
Power factor 1 0.88-0.82
Pressure rating PN 40
Pressure rating for connection PN 40
Pump 10 HP
Pump housing Stainless steel
Pump inlet DN 65
Pump outlet DN 65
Pump version A
Pumped liquid Water
Rated current 13.8-12.0/8.10 A
Rated flow 159 US gpm
Rated flow 2 159 US gpm
Rated head 141.4 ft
Rated head 2 141.4 ft
Rated power - P2 10 HP
Rated speed 3500-3530 rpm
Rated voltage 3 x 400-480D/690Y V
Real Time Delivery date to be confirmed on Sales Order Update with real time availability and Net price
Rubber V
Sales region China
Selected liquid temperature 68 °F
Shaft seal HQQV
Size of inlet connection DN 65
Size of outlet connection DN 65
Stages 2
Standard IEC
Starting current 750-1050 %
Support bearing Graflon
Terminal box position 6
Type 132SB
Type of connection DIN
Version A

Motor Curves

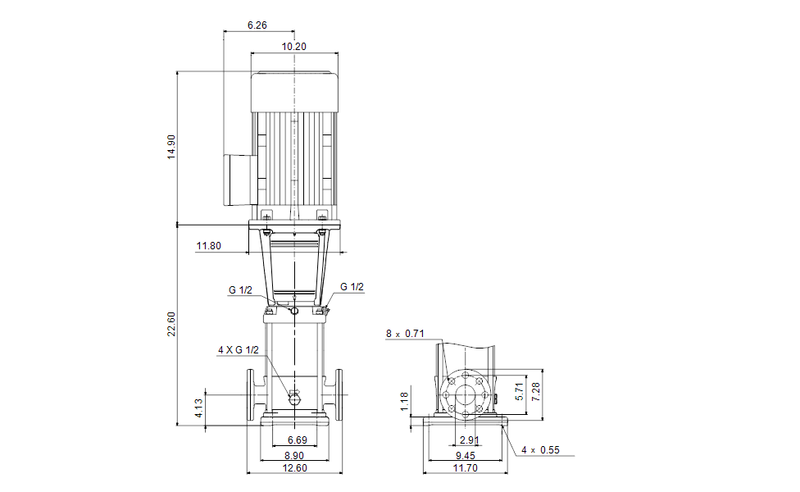

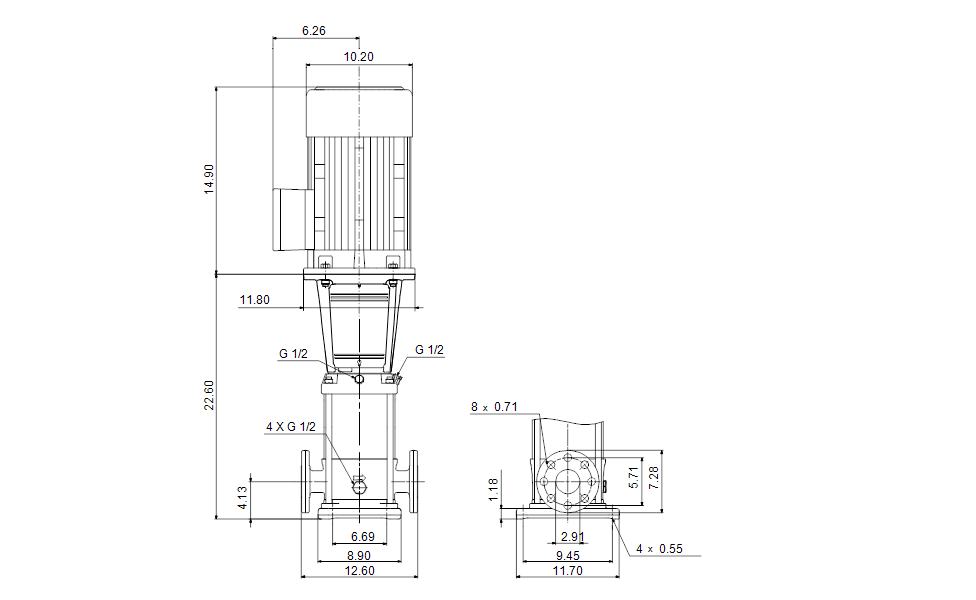

Dimensional Drawing

DWiring Diagram
