Grundfos 97738148 - CRN 32-2 H-GA-A-E-HQQE | Vertical | Multistage | Centrifugal

Save $3,578.08
GRUNDFOSSKU: 97738148

Price:
Sale price$4,781.92 Regular price$8,360.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 97738148 - CRN 32-2 H-GA-A-E-HQQE Vertical Multistage Centrifugal Pump

The Grundfos 97738148 - CRN 32-2 H-GA-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, a leader in pump technology, this model ensures efficient fluid handling and reliable operation in demanding environments.

This pump is ideal for boosting pressure in water supply systems, industrial processes, and HVAC applications. With its robust construction and advanced design, the CRN 32-2 H-GA-A-E-HQQE delivers exceptional performance and longevity.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility.

Explore our extensive range of Grundfos centrifugal pumps, including single and multi-stage options, and discover the perfect solution for your needs. For any inquiries or support, our dedicated team is here to help!

Approvals on nameplate CE,NSF/ANSI 61
Bearing 1 Graflon
Code for rubber E
Code for shaft seal HQQE
Connect code GA
Connection PN 16
Curve tolerance ISO9906:2012 3B
Flange rating inlet 150 lb
Flange size for motor 213TC
Frequency converter NONE
Gross weight 237.0 lb
Impeller Stainless steel
Impellers 0
Liquid max temp 248°F
Liquid temperature range -40 .. 248 °F
Low NPSH N
Material code A
Maximum head 179.8 ft
Maximum operating pressure 232.06 psi
Model B
Motor 213TC
Motor standard NEMA
n rpm 3467rpm
Net weight 138.0 lb
Number of reduced-diameter impellers 0
Pressure rating for connection PN 16
Pressure sensor N
Pump Y
Pump version H
Rated flow 123 US gpm
Rated head 149.9 ft
Rubber E
Sales region USA
Shaft Product name:CRN 32-2 H-GA-A-E-HQQE
Shaft seal HQQE
Stages 2
Standard NEMA
Support bearing Graflon
Version H

Motor Curves

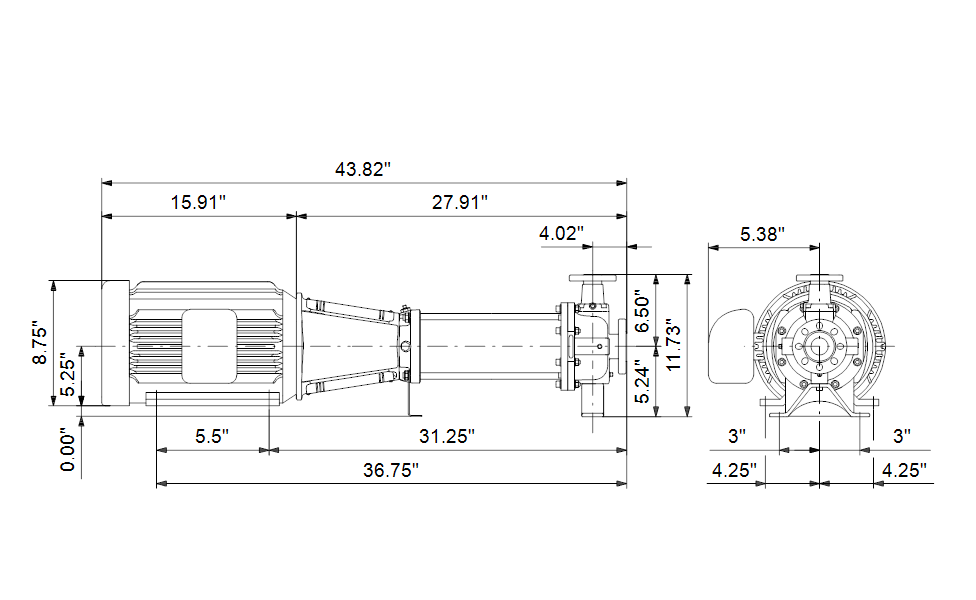

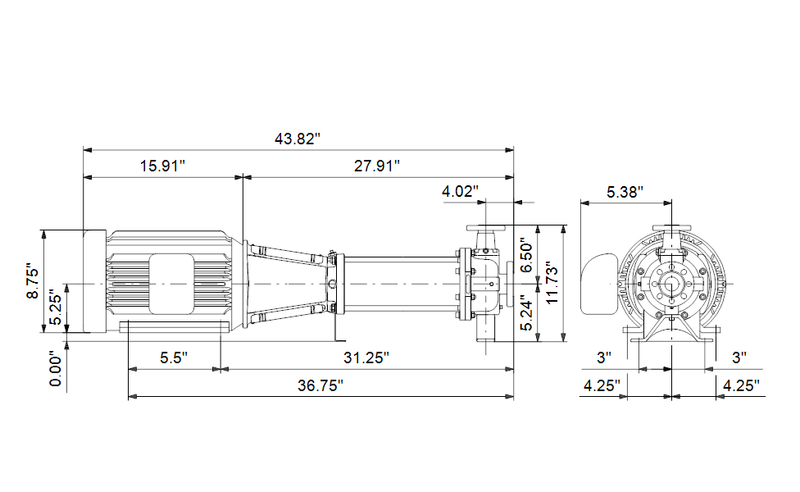

Dimensional Drawing
