Grundfos 96418684 - CRN 32-2-2 A-G-A-V-HQQV
Grundfos 96418684 - CRN 32-2-2 A-G-A-V-HQQV
Grundfos 96418684 - CRN 32-2-2 A-G-A-V-HQQV
Grundfos 96418684 - CRN 32-2-2 A-G-A-V-HQQV

Grundfos 96418684 - CRN 32-2-2 A-G-A-V-HQQV

Save $3,864.00
GRUNDFOSSKU: 96418684
Price:
$4,186.00 $8,050.00
Delivery date to be confirmed on Sales Order
Chat or Call for most up to date lead times. (781) 281-8905

Description

CRN 32-2-2 A-G-A-V-HQQV | Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). Pump materials in contact with the liquid are in high-grade stainless steel. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via ANSI flanges.

EAN 5700390730437
Applications Industrial applications
Actual impeller diameter 4.66 in
Approvals CE
Bearing 1 SIC
Code for rubber V
Code for shaft seal HQQV
Connect code G
Connection ANSI
Connection 2 PN 16
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 4.66 in
DOE Pump Energy Index CL 0.87
Flange rating inlet 150 lb
Flange size for motor 213TC
Flange standard ANSI
Frequency 60 HZ
Frequency converter NONE
Gross weight 138.0 lb
Impeller Stainless steel
Impellers 2
Liquid max temp 90°C
Liquid temperature range -4 .. 194 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 232 psi / 194 °F
Maximum head 149.9 ft
Maximum operating pressure 232.06 psi
Maximum permissible operating pressure 16bar
Model B
Motor 213TC
Motor standard NEMA
n rpm 3467rpm
Net weight 120.0 lb
Number of reduced-diameter impellers 2
Power (P2) required by pump 7.5 HP
Pressure rating PN 16
Pressure rating for connection PN 16
Product family CRN 32
Pump 7.5 HP
Pump housing Stainless steel
Pump inlet 2.5
Pump outlet 2.5
Pump version A
Pumped liquid Water
Rated flow 159 US gpm
Rated flow 2 159 US gpm
Rated head 109.9 ft
Rated head 2 109.9 ft
Real Time Delivery date to be confirmed on Sales Order Update with real time availability and Net price
Rubber V
Sales region Namreg
Selected liquid temperature 68 °F
Shaft seal HQQV
Stages 2
Standard NEMA
Support bearing Graflon
Type of connection ANSI
Version A

Motor Curves

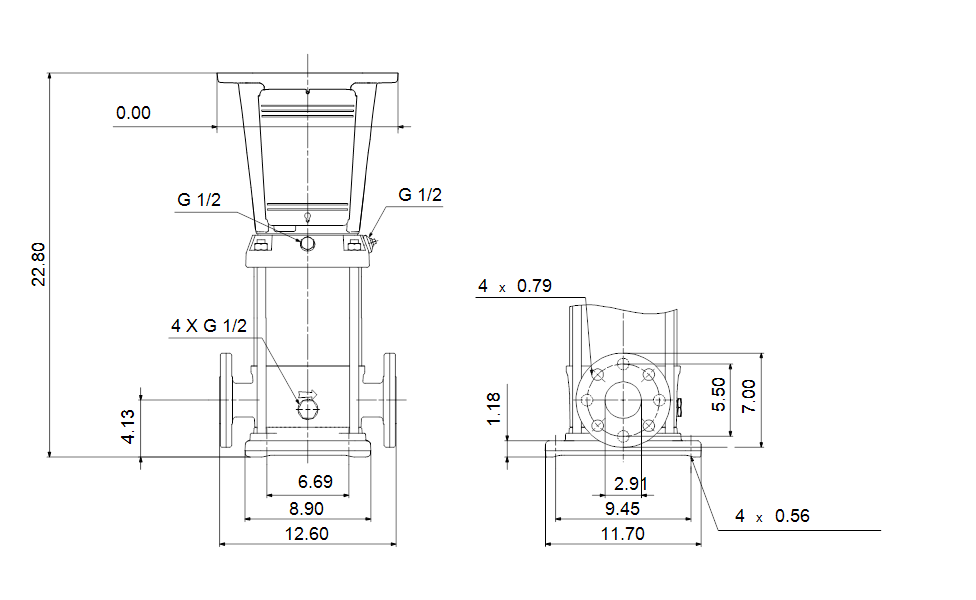

Dimensional Drawing
