Grundfos 97738946 - CRN 32-2-1 H-GA-A-V-HQQV | Vertical | Multistage | Centrifugal

Save $3,629.44
GRUNDFOSSKU: 97738946

Price:
Sale price$4,850.56 Regular price$8,480.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 97738946 - CRN 32-2-1 H-GA-A-V-HQQV is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by the renowned vendor Grundfos, this pump is engineered to deliver reliable and efficient performance in demanding environments.

This model features a robust construction and advanced design, making it suitable for various fluid handling tasks. It is categorized under Grundfos Centrifugal Pumps, specifically within the Multi-Stage and Horizontal Multistage types. The CRN series is known for its versatility and efficiency, making it an ideal choice for boosting pressure in water supply systems, irrigation, and other industrial processes.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches, and our team is here to help if you're having trouble locating the right item.

For more information on specifications and applications, feel free to reach out to our knowledgeable team via chat or phone.

Approvals on nameplate CE
Bearing 1 Graflon
Code for rubber V
Code for shaft seal HQQV
Connect code GA
Connection PN 16
Curve tolerance ISO9906:2012 3B
Flange rating inlet 150 lb
Flange size for motor 213TC
Frequency converter NONE
Gross weight 237.0 lb
Impeller Stainless steel
Impellers 1
Liquid max temp 194°F
Liquid temperature range -4 .. 194 °F
Low NPSH N
Material code A
Maximum head 160.4 ft
Maximum operating pressure 232.06 psi
Model B
Motor 213TC
Motor standard NEMA
n rpm 3467rpm
Net weight 138.0 lb
Number of reduced-diameter impellers 1
Pressure rating for connection PN 16
Pressure sensor N
Pump Y
Pump version H
Rated flow 123 US gpm
Rated head 137.1 ft
Rubber V
Sales region USA
Shaft Product name:CRN 32-2-1 H-GA-A-V-HQQV
Shaft seal HQQV
Stages 2
Standard NEMA
Support bearing Graflon
Version H

Motor Curves

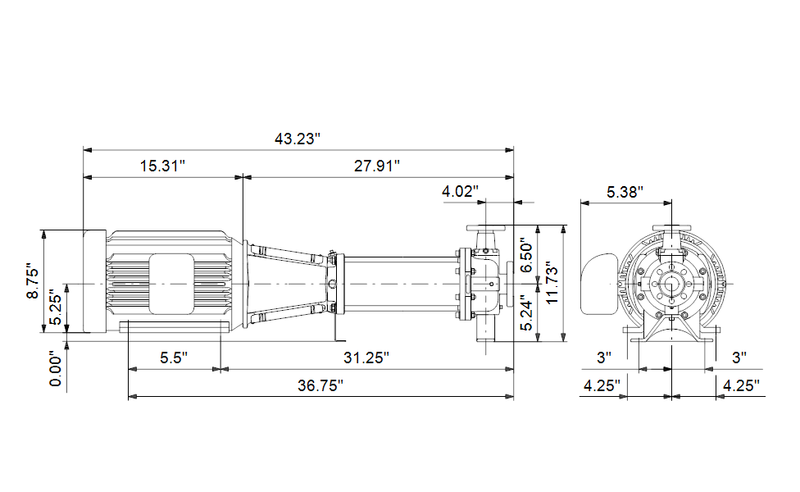

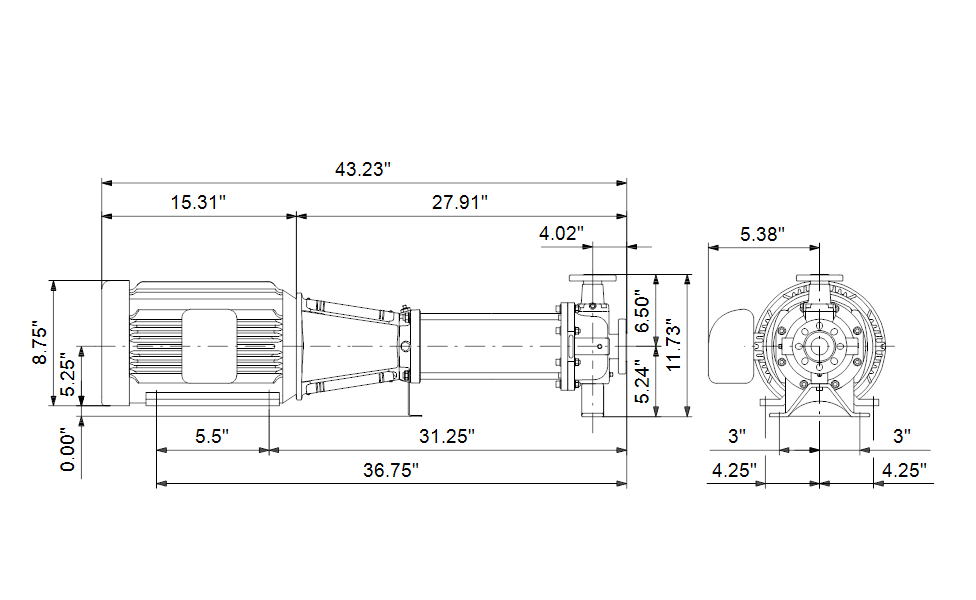

Dimensional Drawing
