Grundfos 96419593 - CRN 32-2-1 A-G-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 96419593

Price:
Sale price$15,901.12
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 96419593 - CRN 32-2-1 A-G-A-E-HQQE Vertical Multistage Centrifugal Pump

The Grundfos 96419593 - CRN 32-2-1 A-G-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, a leader in pump technology, this model is engineered to deliver reliable and efficient performance in demanding environments.

With its robust construction and advanced design, the CRN 32-2-1 A-G-A-E-HQQE is ideal for high-pressure applications, ensuring optimal fluid transfer and system efficiency. This pump is part of the extensive Grundfos centrifugal pump range, which includes single and multi-stage options tailored to meet diverse operational needs.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help you find the perfect solution.

EAN 5700390766115
Applications Industrial applications
Actual impeller diameter 4.66 in
Approvals CURUS
Approvals for drinking water NSF/ANSI 61
Bearing 1 SIC
Built-in motor protection PTC
Code for rubber E
Code for shaft seal HQQE
Connect code G
Connection ANSI
Connection 2 PN 16
Cooling TEFC
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 4.66 in
DOE Pump Energy Index CL 0.87
Enclosure class (IEC 34-5) 55 Dust/Jetting
Eta 1/1 89.5-89.5%
Flange rating inlet 150 lb
Flange size for motor 213TC
Frequency 60 HZ
Frequency converter NONE
Full load SF current 22,4-20,8/10,4 A
Gross weight 231.0 lb
IE Eff. Class NEMA Premium / IE3 60Hz
IE efficiency classNEMA Premium / IE3 60Hz
IE Efficiency class NEMA Premium / IE3 60Hz
Impeller Stainless steel
Impellers 2
Insulation F
Insulation class (IEC 85) F
KVA code L
Liquid max temp 120°C
Liquid temperature range -40 .. 248 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 232 psi / 250 °F
Maximum ambient temperature 140 °F
Maximum head 168.6 ft
Maximum operating pressure 232.06 psi
Maximum permissible operating pressure 16bar
Model B
Motor 213TC
Motor efficiency at 1/2 load 88.1-86.7 %
Motor efficiency at 3/4 load 89.6-89.1 %
Motor efficiency at full load 1 89.5-89.5 %
Motor protec PTC
Motor standard NEMA
Motor type 132DA
n rpm 3490-3520rpm
Net weight 213.0 lb
Number of poles 2
Number of reduced-diameter impellers 1
P2 HP 7.5 HP
P2 kW 5.5kW
Phase 3
Power (P2) required by pump 7.5 HP
Power factor 1 0.89-0.86
Pressure rating PN 16
Pressure rating for connection PN 16
Product family CRN 32
Pump 7.5 HP
Pump housing Stainless steel
Pump inlet 2.5
Pump outlet 2.5
Pump version A
Pumped liquid Water
Rated current 19,5-18,1/9,09 A
Rated flow 159 US gpm
Rated flow 2 159 US gpm
Rated head 124.3 ft
Rated head 2 124.3 ft
Rated power - P2 7.5 HP
Rated speed 3490-3520 rpm
Rated voltage 3 x 208-230YY/460Y V
Real Time Delivery date to be confirmed on Sales Order Update with real time availability and Net price
Rubber E
Sales region Namreg
Selected liquid temperature 68 °F
Service factor 1.15
Shaft seal HQQE
Stages 2
Standard NEMA
Starting current 1020-1480 %
Support bearing Graflon
Type 132DA
Type of connection ANSI
Version A

Motor Curves

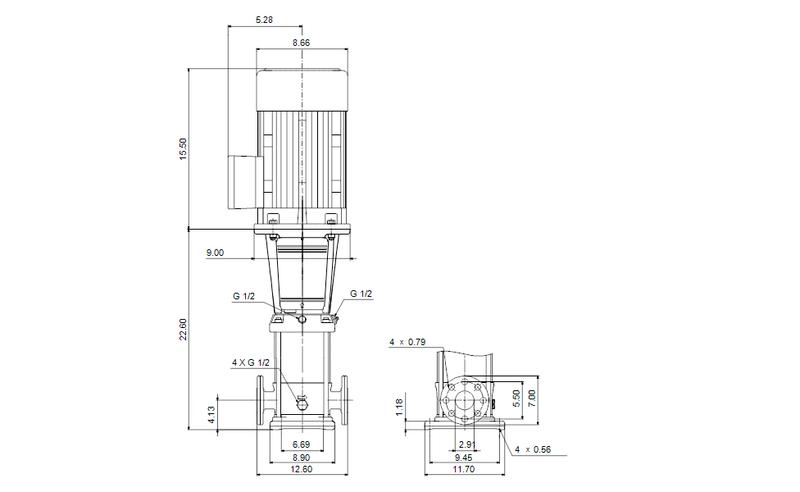

Dimensional Drawing

DWiring Diagram
