Grundfos 97739969 - CRN 32-10-2 BH-G05-A-V-HQQV | Vertical | Multistage | Centrifugal

Save $10,713.70
GRUNDFOSSKU: 97739969

Price:
Sale price$14,318.30 Regular price$25,032.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 97739969 - CRN 32-10-2 BH-G05-A-V-HQQV Vertical Multistage Centrifugal Pump

The Grundfos 97739969 - CRN 32-10-2 BH-G05-A-V-HQQV is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, this pump is engineered to deliver reliable and efficient performance, making it an ideal choice for boosting water pressure and handling various fluid transfer tasks.

This model is part of the renowned CRN series, known for its durability and versatility. It features a robust construction that ensures longevity and minimal maintenance, making it a preferred option for professionals in need of dependable pumping solutions.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help you find the perfect solution.

Approvals on nameplate CE
Bearing 1 Graflon
Code for rubber V
Code for shaft seal HQQV
Connect code G05
Connection PN 40
Curve tolerance ISO9906:2012 3B
Flange rating inlet 300 lb
Flange size for motor 324TC
Frequency converter NONE
Gross weight 384.0 lb
Impeller Stainless steel
Impellers 2
Liquid max temp 194°F
Liquid temperature range -4 .. 194 °F
Low NPSH N
Material code A
Maximum head 846.2 ft
Maximum operating pressure 435.11 psi
Model B
Motor 324TC
Motor standard NEMA
n rpm 3525rpm
Net weight 223.0 lb
Number of reduced-diameter impellers 2
Pressure rating for connection PN 40
Pressure sensor N
Pump Y
Pump version BH
Rated flow 136 US gpm
Rated head 677.5 ft
Rubber V
Sales region USA
Shaft Product name:CRN 32-10-2 BH-G05-A-V-HQQV
Shaft seal HQQV
Stages 10
Standard NEMA
Support bearing Graflon
Version BH

Motor Curves

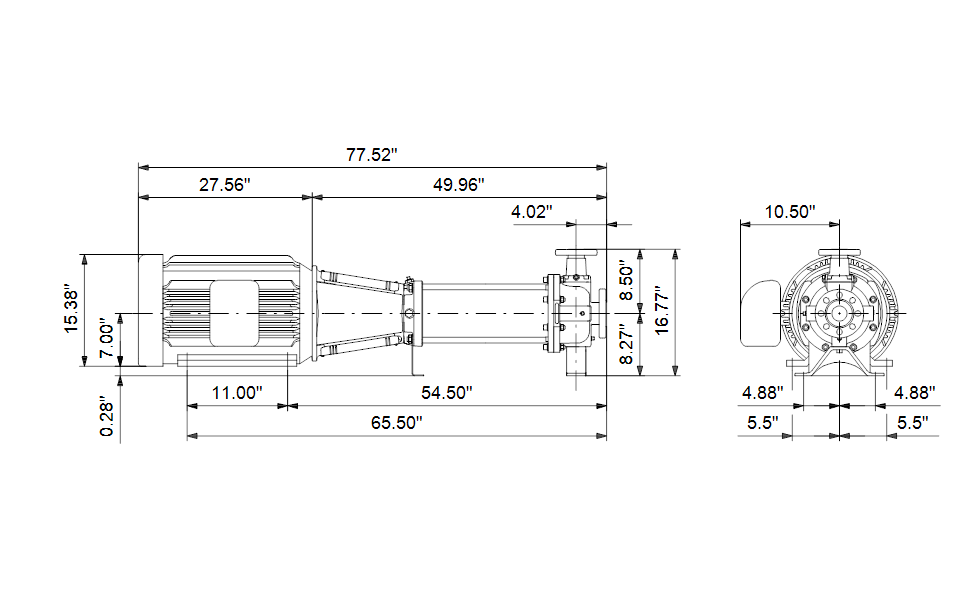

Dimensional Drawing
