Grundfos 97738136 - CRN 32-1 H-GA-A-E-HQQE | Vertical | Multistage | Centrifugal

Save $2,362.13
GRUNDFOSSKU: 97738136

Price:
Sale price$3,156.87 Regular price$5,519.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 97738136 - CRN 32-1 H-GA-A-E-HQQE Vertical Multistage Centrifugal Pump

The Grundfos 97738136 - CRN 32-1 H-GA-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, this pump is engineered to deliver reliable and efficient performance, making it an ideal choice for boosting water pressure and handling various fluid transfer tasks.

This model features a robust construction and advanced design, ensuring durability and longevity in demanding environments. It is part of the CRN series, known for its versatility and efficiency in both single and multi-stage configurations.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help!

Approvals on nameplate CE,NSF/ANSI 61
Bearing 1 Graflon
Code for rubber E
Code for shaft seal HQQE
Connect code GA
Connection PN 16
Curve tolerance ISO9906:2012 3B
Flange rating inlet 150 lb
Flange size for motor 182TC
Frequency converter NONE
Gross weight 231.0 lb
Impeller Stainless steel
Impellers 0
Liquid max temp 248°F
Liquid temperature range -40 .. 248 °F
Low NPSH N
Material code A
Maximum head 88.92 ft
Maximum operating pressure 232.06 psi
Model B
Motor 182TC
Motor standard NEMA
n rpm 3461rpm
Net weight 131.0 lb
Number of reduced-diameter impellers 0
Pressure rating for connection PN 16
Pressure sensor N
Pump Y
Pump version H
Rated flow 96.9 US gpm
Rated head 77.43 ft
Rubber E
Sales region USA
Shaft Product name:CRN 32-1 H-GA-A-E-HQQE
Shaft seal HQQE
Stages 1
Standard NEMA
Support bearing Graflon
Version H

Motor Curves

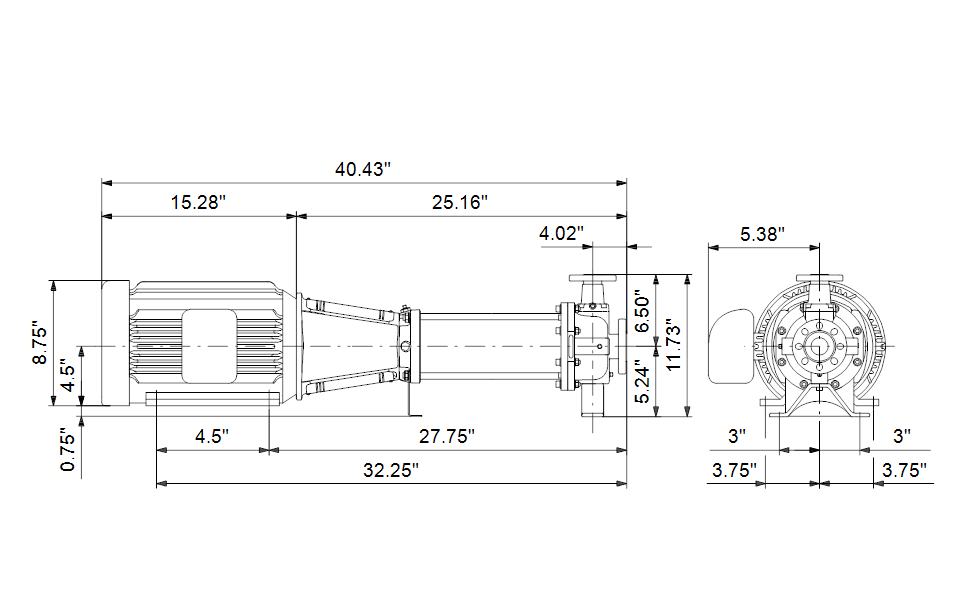

Dimensional Drawing
