Grundfos 97738023 - CRN 32-1 H-GA-A-V-HQQV | Vertical | Multistage | Centrifugal

Save $3,340.11
GRUNDFOSSKU: 97738023

Price:
Sale price$4,463.89 Regular price$7,804.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 97738023 - CRN 32-1 H-GA-A-V-HQQV is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by the renowned vendor Grundfos, this pump is engineered for efficiency and reliability, making it an ideal choice for boosting pressure and transferring fluids in demanding environments.

This model features a robust construction and advanced design, ensuring optimal performance in both single and multi-stage configurations. It is categorized under horizontal multistage pumps and is suitable for various applications, including water supply, irrigation, and industrial processes.

At Pump-Stop.com, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU that matches the Grundfos 97738023. If you encounter any difficulties in locating the right item, our team is here to help you find the perfect solution.

Approvals on nameplate CURUS
Bearing 1 Graflon
Built-in motor protection PTC
Code for rubber V
Code for shaft seal HQQV
Connect code GA
Connection PN 16
Cooling TEFC
Curve tolerance ISO9906:2012 3B
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange rating inlet 150 lb
Flange size for motor 182TC
Frequency 60 Hz
Frequency converter NONE
Gross weight 311.0 lb
IE Eff. Class NEMA Premium / IE3 60Hz
IE efficiency Product name:CRN 32-1 H-GA-A-V-HQQV
IE Efficiency class NEMA Premium / IE3 60Hz
Impeller Stainless steel
Impellers 0
Insulation F
Insulation class (IEC 85) F
IP Class 55 Dust/Jetting
Liquid max temp 194°F
Liquid temperature range -4 .. 194 °F
Low NPSH N
Material code A
Maximum ambient temperature 140 °F
Maximum head 88.92 ft
Maximum operating pressure 232.06 psi
Model B
Motor 182TC
Motor efficiency at 1/2 load 86.9-84.7 %
Motor efficiency at 3/4 load 88.5-87.3 %
Motor efficiency at full load 1 88.5-88.5 %
Motor standard NEMA
Motor type 112CA
n rpm F
Net weight 212.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
P2 kW 5.5 HP
Phase 3
Power (P2) required by pump 5.5 HP
Power factor 1 0.89-0.86
Pressure rating for connection PN 16
Pressure sensor N
Pump 5.5 HP
Pump version H
Rated current 14,1-13,1/7,29 A
Rated flow 96.9 US gpm
Rated head 77.43 ft
Rated power - P2 5.5 HP
Rated speed 3525-3540 rpm
Rated voltage 3 x 208-230YY/460Y V
Rubber V
Sales region USA
Service factor 1.15
Shaft Product name:CRN 32-1 H-GA-A-V-HQQV
Shaft seal HQQV
Stages 1
Standard NEMA
Starting current 1000-1470 %
Support bearing Graflon
Type 112CA
Version H

Motor Curves

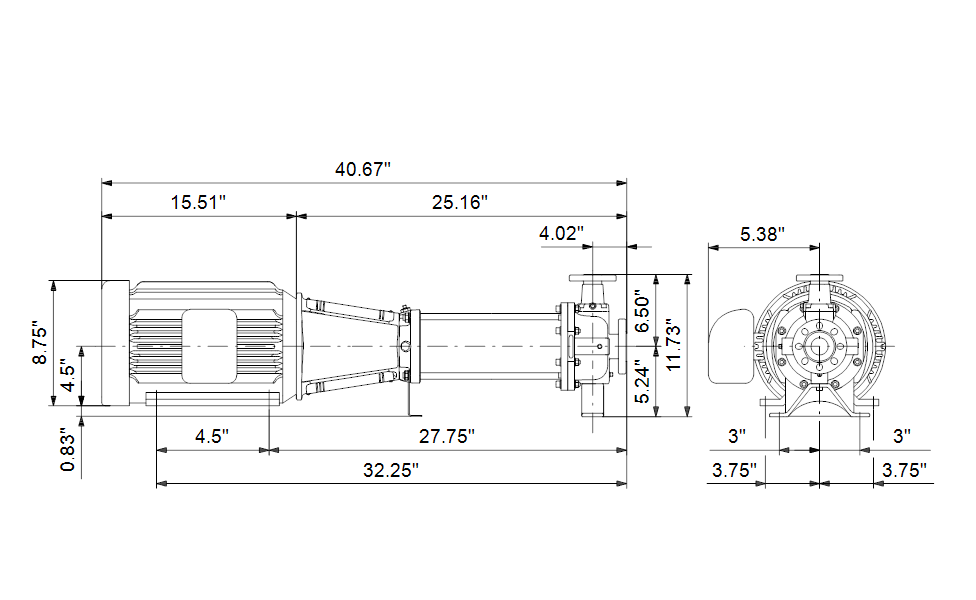

Dimensional Drawing

DWiring Diagram
