Grundfos 99466084 - CRN 32-1-1 M-F-A-E | Multistage | Centrifugal | Vertical | Inline

GRUNDFOSSKU: 99466084

Price:
Sale price$19,295.83
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

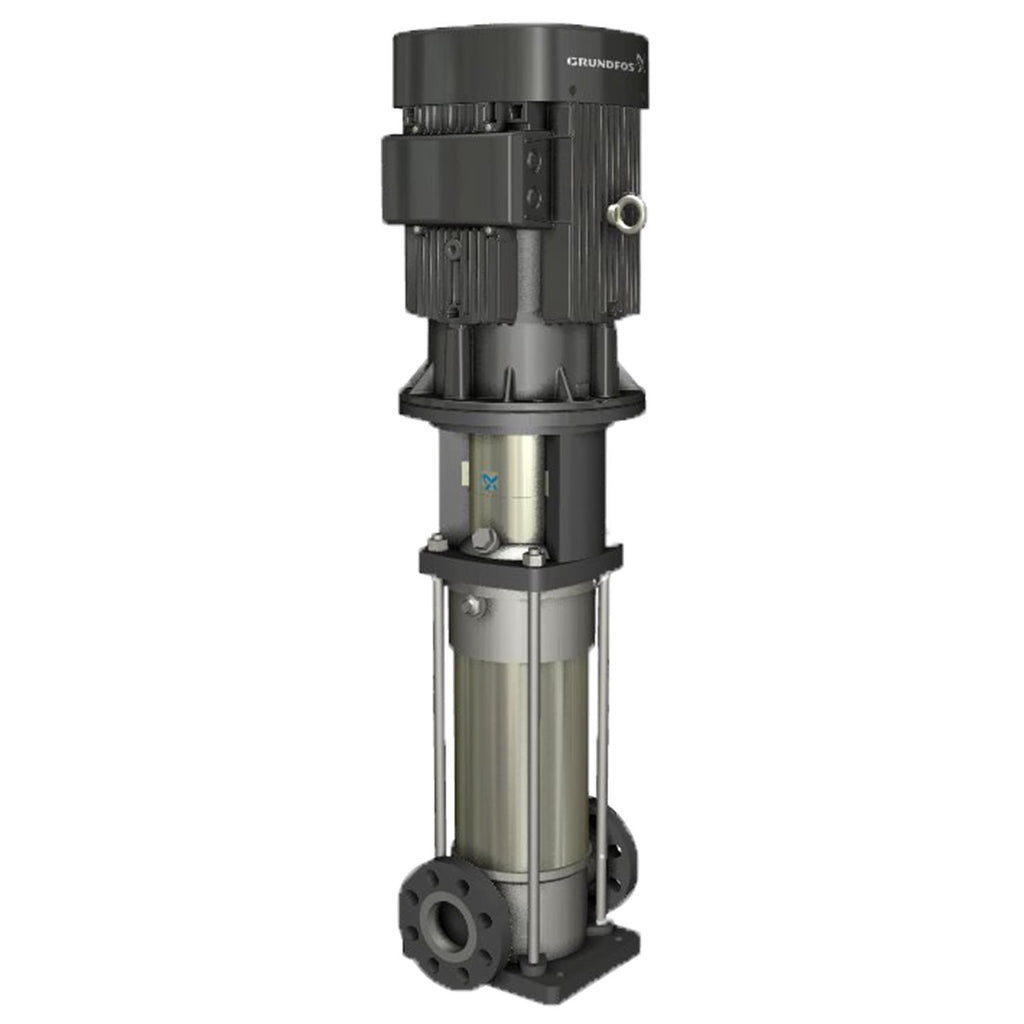

CRN 32-1-1 M-F-A-E | Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). Pump materials in contact with the liquid are in high-grade stainless steel. Pipe connection is via DIN flanges. The pump is fitted with a 3-phase, fan-cooled asynchronous motor.

EAN 5713829577862
Approvals EAC
Bearing 1 Graflon
Built-in motor protection PTC
Code for rubber E
Connect code F
Connection PN 40
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange size for motor FT130
Frequency converter NONE
Gross weight 215.0 lb
IE efficiency IE3 88
IE Efficiency class NEMA Premium / IE3 60Hz
Impeller Stainless steel
Impellers 1
Insulation class (IEC 85) F
Liquid temperature range -40 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 232 psi / 250 °F
Maximum ambient temperature 140 °F
Maximum head 70.54 ft
Maximum operating pressure 16 bar
Minimum efficiency index, MEI ≥ 0.7
Model B
Motor FT130
Motor efficiency at 1/2 load 0.877
Motor efficiency at 3/4 load 0.88
Motor efficiency at full load 1 87.5-88.5 %
Motor standard IEC
Motor type 100DA
Net weight 165.0 lb
Number of poles 2
Number of reduced-diameter impellers 1
Power (P2) required by pump 3 kW
Power factor 1 0.91-0.84
Pressure rating for connection PN 40
Pressure sensor N
Pump 3 kW
Pump speed on which pump data are based 3501 rpm
Pump version M
Pumped liquid Water
Rated current 6.20-5.40 A
Rated flow 159 US gpm
Rated head 51.18 ft
Rated power - P2 3 kW
Rated speed 3480-3530 rpm
Rated voltage 3 x 380-480D V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1
Size of inlet connection DN 65
Size of outlet connection DN 65
Stages 1
Standard IEC
Starting current 860-1100 %
Support bearing Graflon
Type 100DA
Type of connection DIN
Version M

Motor Curves

Dimensional Drawing

DWiring Diagram
