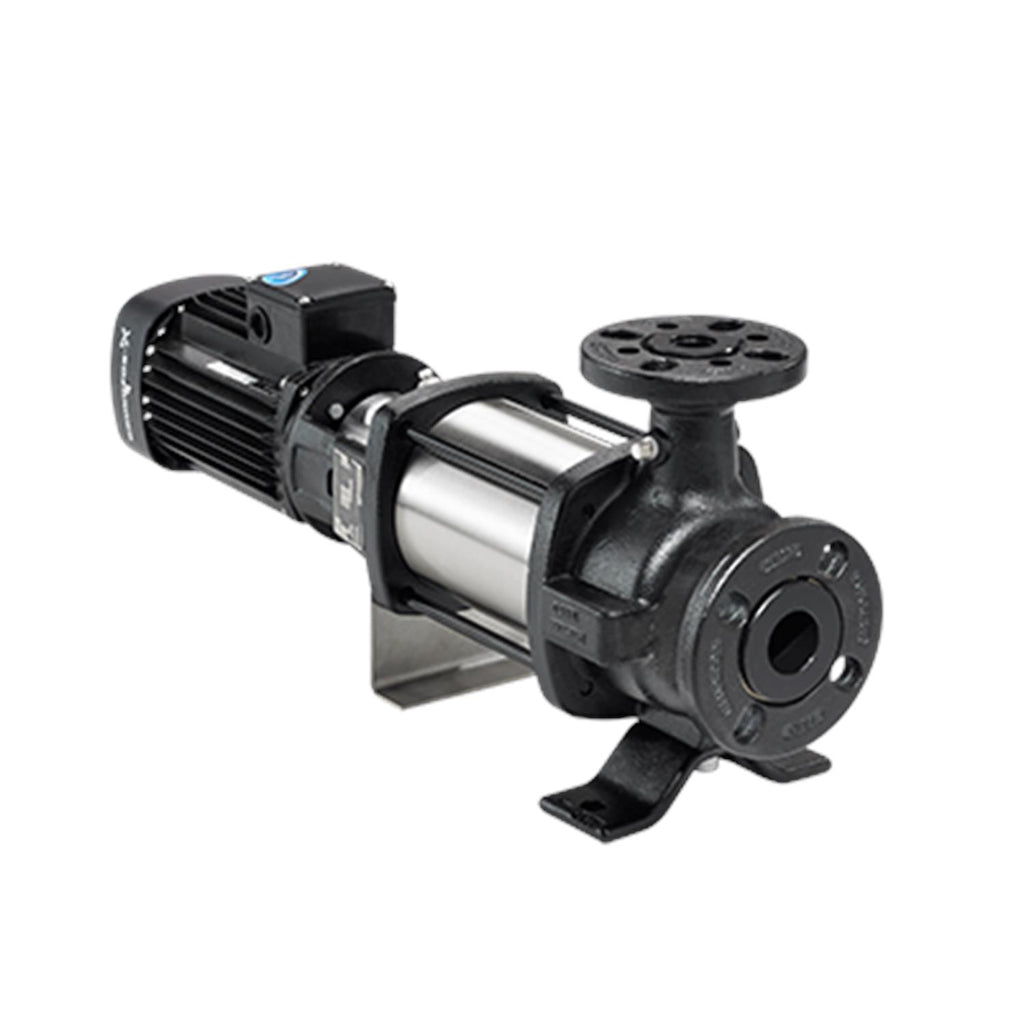

Grundfos 97734238 - CRN 3-9 H-GA-A-V-HQQV | Horizontal | End Suction
Grundfos 97734238 - CRN 3-9 H-GA-A-V-HQQV | Horizontal | End Suction
Grundfos 97734238 - CRN 3-9 H-GA-A-V-HQQV | Horizontal | End Suction
Roll over image to zoom in Click on image to zoom
Grundfos 97734238 - CRN 3-9 H-GA-A-V-HQQV | Horizontal | End SuctionGrundfos 97734238 - CRN 3-9 H-GA-A-V-HQQV | Horizontal | End SuctionGrundfos 97734238 - CRN 3-9 H-GA-A-V-HQQV | Horizontal | End Suction
Grundfos Pumps & Systems

Grundfos 97734238 - CRN 3-9 H-GA-A-V-HQQV | Horizontal | End Suction

GrundfosSKU: 97734238
Price:
$2,832.54

Delivery date to be confirmed on Sales Order

or Call for most up to date lead times. (781) 281-8905

Description

Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
CRN 3-9 H-GA-A-V-HQQV · Vertical Multistage Centrifugal Pump — All Stainless
CRN1.5HP115/208-230V1-Phase60 HzTEFCStainless steel

The Grundfos 97734238 (CRN 3-9 H-GA-A-V-HQQV) is a Vertical Multistage Centrifugal Pump — All Stainless. All wetted parts in stainless steel EN 1.4401 (316). For food, beverage, pharmaceutical, and chemical applications where iron contamination must be avoided. Nominal performance: 15.4US gpm at 207.4ft. Rated 115/208-230V, 1-Phase, 60 Hz.

Power
1.5HP
Voltage
115/208-230V
Phase
1-Phase
Max Flow
15.4US gpm
Max Head
207.4ft
Max Pressure
232.06psi
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Industrial Grade
Built and tested to IEC and NEMA standards
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product

All Stainless Steel Construction

Every wetted component — impeller, chambers, shaft, head — is stainless steel EN 1.4401 (316). No iron contact with the pumped fluid under any condition.

Corrosion-Resistant for Aggressive Fluids

316 stainless resists chlorides, mild acids, and alkaline cleaning agents. CRN is the preferred selection for food processing, pharmaceutical, and chemical dosing systems.

Cartridge Mechanical Seal

Factory-set cartridge seal eliminates field adjustment on installation. Seal options cover standard water through aggressive chemical service.

Dual Flange Standard — DIN, ANSI, JIS

CRN ships with combined DIN/ANSI/JIS flange connections. One pump fits piping standards across North American and international installations.

3-A and FDA-Compliant Options

Selected CRN configurations are 3-A certified for dairy and food processing. FDA-compliant elastomers available on request.

Wide Pressure Range

CRN series covers up to 60 bar operating pressure across pump sizes. Confirm your system maximum working pressure before selecting.

Model Information — CRN 3-9 H-GA-A-V-HQQV
Series: CRN
Model Code: CRN 3-9 H-GA-A-V-HQQV
Seal Type: Cartridge seal — H rubber bellows, QQ SiC/SiC faces, V FKM O-ring
Impeller Material: Stainless steel
Housing Material: Stainless steel
Shaft Seal: HQQV
Flange Rating: PN 16
Technical Specifications
Model Number 97734238
Product Series CRN
Series Description Vertical Multistage Centrifugal Pump — All Stainless
Power 1.5HP
Voltage 115/208-230V
Phase 1-Phase
Frequency 60 Hz
Motor Speed 3450rpm
Full Load Current 17/9,50-8,60A
Motor Type BALDOR
Motor Efficiency 71%
Insulation Class B
Protection Class (IP) TEFC
Nominal Flow 15.4US gpm
Nominal Head 207.4ft
Max Operating Pressure 232.06psi
Max Fluid Temperature 194°F
Max Ambient Temperature 104°F

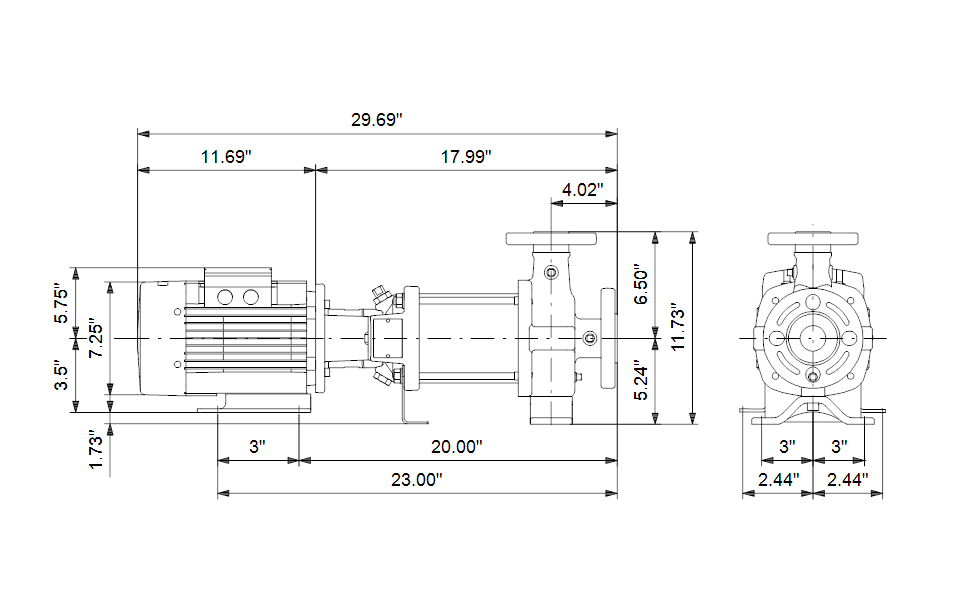

Inlet Connection 1 1/2inch
Outlet Connection 1inch
Pipe Pressure Rating PN 16
Impeller Material Stainless steel
Housing Material Stainless steel
Shaft Seal HQQV
Important Notices

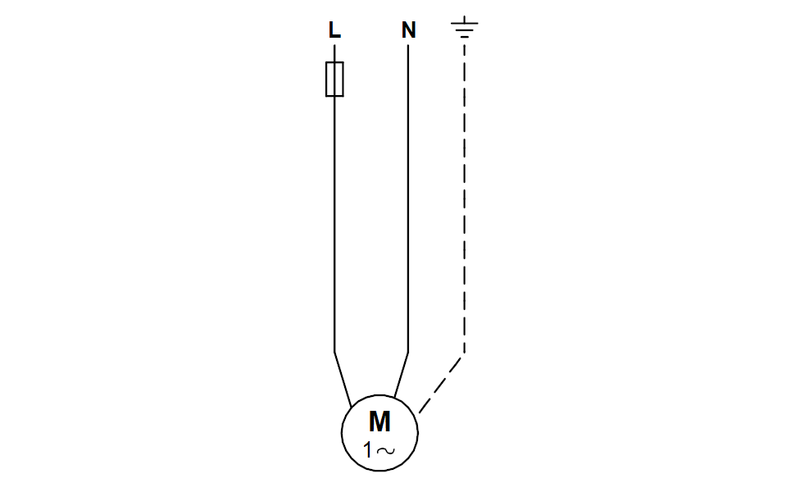

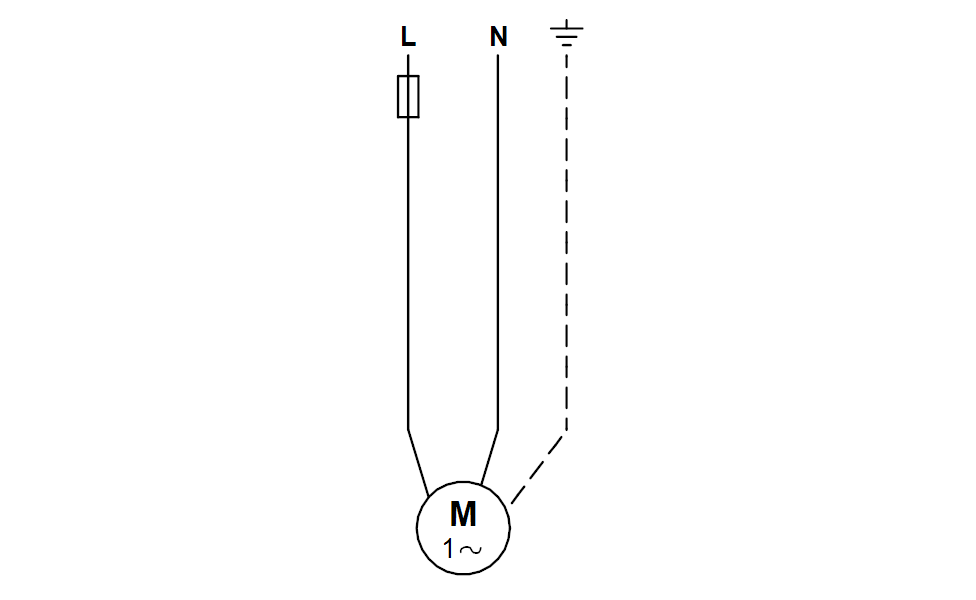

Electrical Verify supply voltage, phase, and frequency match nameplate before installation: 115/208-230V, 1-Phase, 60 Hz.
Temperature limits Do not exceed max fluid temperature 194°F or max ambient temperature 104°F. Exceeding limits damages seals and motor insulation.
Dry running Do not run dry. CRN pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.
Documentation
✓ Installation and Operating Manual (IOM) — CRN Series
✓ Product Data Sheet — CRN 3-9 H-GA-A-V-HQQV
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
Grundfos — 97734238 · CRN 3-9 H-GA-A-V-HQQVAuthorized Grundfos Distributor · pump-stop.com
Approvals on nameplate
CURUS
Bearing 1
SIC
Built-in motor protection
NONE
Code for rubber
V
Code for shaft seal
HQQV
Connect code
GA
Connection
PN 16
Cooling
TEFC
Curve tolerance
ISO9906:2012 3B
Flange rating inlet
150 lb
Flange size for motor
56C
Frequency
60 Hz
Frequency converter
NONE
Gross weight
91.3 lb
IE efficiency
0.71
Impeller
Stainless steel
Impellers
0
Insulation
B
Insulation class (IEC 85)
B
Liquid max temp
194°F
Liquid temperature range
-4 .. 194 °F
Low NPSH
N
Material code
A
Maximum ambient temperature
104 °F
Maximum head
280.9 ft
Maximum operating pressure
232.06 psi
Model
A
Motor
56C
Motor efficiency at full load 1
0.71
Motor standard
NEMA
Motor type
BALDOR
n rpm
B
Net weight
79.0 lb
Number of poles
2
Number of reduced-diameter impellers
0
P2 kW
1.5 HP
Phase
1
Power (P2) required by pump
1.5 HP
Pressure rating for connection
PN 16
Pressure sensor
N
Pump
1.5 HP
Pump version
H
Rated current
17/9,50-8,60 A
Rated flow
15.4 US gpm
Rated head
207.4 ft
Rated power - P2
1.5 HP
Rated speed
3450 rpm
Rated voltage
1 x 115/208-230 V
Rubber
V
Sales region
USA
Service factor
1.3
Shaft
Product name:CRN 3-9 H-GA-A-V-HQQV
Shaft seal
HQQV
Stages
9
Standard
NEMA
Type
BALDOR
Version
H
