Grundfos 99916547 - CRN 3-7 A-FGJ-A-E-HQQE | Multistage | Centrifugal | Vertical | Inline

GrundfosSKU: 99916547

Price:
Sale price$4,878.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark

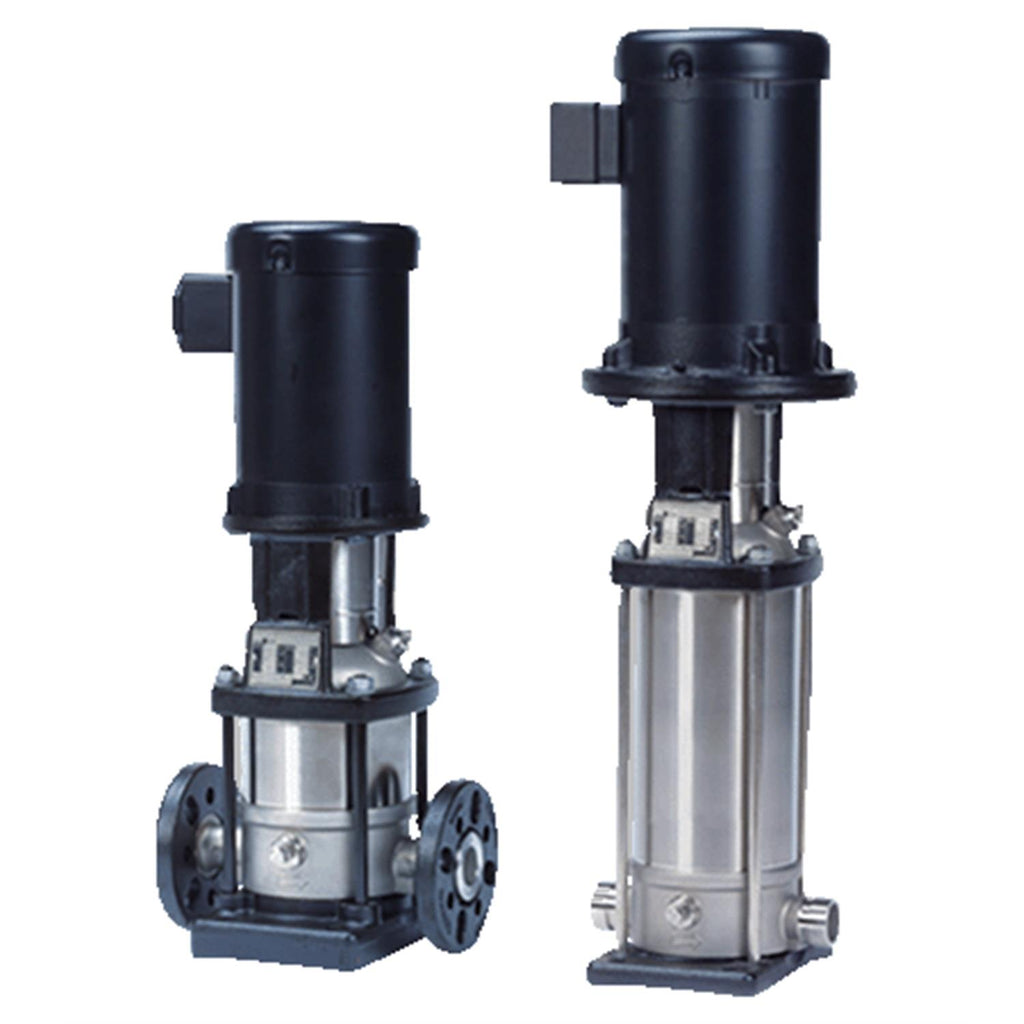

CRN 3-7 A-FGJ-A-E-HQQE · Vertical Multistage Centrifugal Pump — All Stainless
CRN1.5HP115/208-230V1.0-Phase60 HzTEFCStainless steel

The Grundfos 99916547 (CRN 3-7 A-FGJ-A-E-HQQE) is a Vertical Multistage Centrifugal Pump — All Stainless. All wetted parts in stainless steel EN 1.4401 (316). For food, beverage, pharmaceutical, and chemical applications where iron contamination must be avoided. Nominal performance: 15.4US gpm at 164ft. Rated 115/208-230V, 1.0-Phase, 60 Hz. Applications include HVAC: Heating, HVAC: Air Conditioning, Plumbing: Pressure Boosting and more.

Power
1.5HP
Voltage
115/208-230V
Phase
1.0-Phase
Max Flow
15.4US gpm
Max Head
164ft
Max Pressure
362.59psi
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Industrial Grade
Built and tested to IEC and NEMA standards
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product

All Stainless Steel Construction

Every wetted component — impeller, chambers, shaft, head — is stainless steel EN 1.4401 (316). No iron contact with the pumped fluid under any condition.

Corrosion-Resistant for Aggressive Fluids

316 stainless resists chlorides, mild acids, and alkaline cleaning agents. CRN is the preferred selection for food processing, pharmaceutical, and chemical dosing systems.

Cartridge Mechanical Seal

Factory-set cartridge seal eliminates field adjustment on installation. Seal options cover standard water through aggressive chemical service.

Dual Flange Standard — DIN, ANSI, JIS

CRN ships with combined DIN/ANSI/JIS flange connections. One pump fits piping standards across North American and international installations.

3-A and FDA-Compliant Options

Selected CRN configurations are 3-A certified for dairy and food processing. FDA-compliant elastomers available on request.

Wide Pressure Range

CRN series covers up to 60 bar operating pressure across pump sizes. Confirm your system maximum working pressure before selecting.

Model Information — CRN 3-7 A-FGJ-A-E-HQQE
Series: CRN
Model Code: CRN 3-7 A-FGJ-A-E-HQQE
Seal Type: Cartridge seal — H rubber bellows, QQ SiC/SiC faces, E EPDM O-ring
Impeller Material: Stainless steel
Housing Material: Stainless steel
Shaft Seal: HQQE
Flange Rating: PN 25
Technical Specifications
Model Number 99916547
Product Series CRN
Series Description Vertical Multistage Centrifugal Pump — All Stainless
Power 1.5HP
Voltage 115/208-230V
Phase 1.0-Phase
Frequency 60 Hz
Motor Speed 3500rpm
Pump Speed 3450rpm
Full Load Current 13,2/7,3-6,6A
Motor Type WEG
Motor Protection PTO
Motor Efficiency 75,0%
Insulation Class F
Protection Class (IP) TEFC
Nominal Flow 15.4US gpm
Nominal Head 164ft
Max Operating Pressure 362.59psi
Max Fluid Temperature 248°F
Max Ambient Temperature 104°F
Inlet Connection DN 25/32
Outlet Connection DN 25/32
Pipe Pressure Rating PN 25
Pipe Standard DIN / ANSI / JIS
Impeller Material Stainless steel
Housing Material Stainless steel
Shaft Seal HQQE
Approvals / Certifications CURUS
Applications
HVAC: Heating
HVAC: Air Conditioning
Plumbing: Pressure Boosting
District heating
District cooling
Machining
Wash and clean
Process liquids transfer
Industrial heating
Cooling
Industrial water supply & transfer
Industrial wastewater treatment & reuse
Industrial process water treatment
Desalination
Municipal surface water
Drinking water treatment
Municipal water transportation
Municipal solar solutions
Rotor & spray irrigation
Ground water transfer
Livestock & Wildlife Watering
Water Treatment Fertigation
Chemigation & Dosing
Pivot & Lateral Irrigation
Frost protection
Solar boosting and water supply solutions
Controls and digital groundwater management
Solar controls and digital water management
Municipal solar solutions
Agriculture solar solutions
Livestock watering with solar solutions
Community solar solutions
Important Notices
Electrical Verify supply voltage, phase, and frequency match nameplate before installation: 115/208-230V, 1.0-Phase, 60 Hz.
Temperature limits Do not exceed max fluid temperature 248°F or max ambient temperature 104°F. Exceeding limits damages seals and motor insulation.
Dry running Do not run dry. CRN pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.
Documentation
✓ Installation and Operating Manual (IOM) — CRN Series
✓ Product Data Sheet — CRN 3-7 A-FGJ-A-E-HQQE
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
EAN 5715114113076
Applications Industrial applications
Approvals CURUS
Approvals for drinking water NSF/ANSI 61
Bearing 1 SIC
Built-in motor protection PTO
Code for rubber E
Code for shaft seal HQQE
Connect code FGJ
Connection DIN / ANSI / JIS
Connection 2 DN 25/32
Connection 3 DN 25/32
Connection 4 PN 25
Cooling IC 411
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Eta 1/1 0.75
Flange rating inlet 300 lb
Flange size for motor 56C
Frequency 60 HZ
Frequency converter NONE
Full load SF current 15.2/6.6 A
Gross weight 91.0 lb
IE efficiency 0.75
Impeller Stainless steel
Impellers 7
Insulation F
Insulation class (IEC 85) F
Liquid max temp 120°C
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 250 °F
Maximum ambient temperature 104 °F
Maximum head 219.8 ft
Maximum operating pressure 362.59 psi
Maximum permissible operating pressure 25bar
Model A
Motor 56C
Motor efficiency at 1/2 load 0.66
Motor efficiency at 3/4 load 0.73
Motor efficiency at full load 1 0.75
Motor protec PTO
Motor standard NEMA
Motor type WEG
n rpm 3500rpm
Net weight 80.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
P2 HP 1.5 HP
P2 kW 1.1kW
Phase 1
Power (P2) required by pump 1.5 HP
Power factor 1 0.97
Pressure rating PN 25
Pressure rating for connection PN 25
Product family CRN 3
Pump 1.5 HP
Pump housing Stainless steel
Pump inlet DN 25/32
Pump outlet DN 25/32
Pump version A
Pumped liquid Water
Rated current 13,2/7,3-6,6 A
Rated flow 15.4 US gpm
Rated flow 2 15.4 US gpm
Rated head 164 ft
Rated head 2 164 ft
Rated power - P2 1.5 HP
Rated speed 3500 rpm
Rated voltage 1 x 115/208-230 V
Real Time Delivery date to be confirmed on Sales Order Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.15
Shaft seal HQQE
Size of inlet connection DN 25/32
Size of outlet connection DN 25/32
Stages 7
Standard NEMA
Starting current 800-800 %
Type WEG
Type of connection DIN / ANSI / JIS
Version A

Motor Curves

Dimensional Drawing

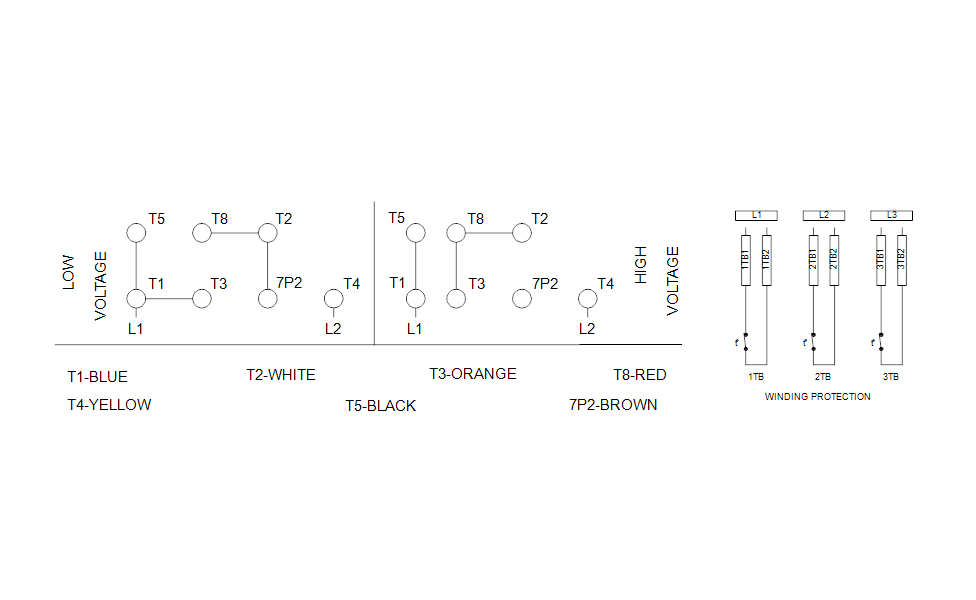

DWiring Diagram
