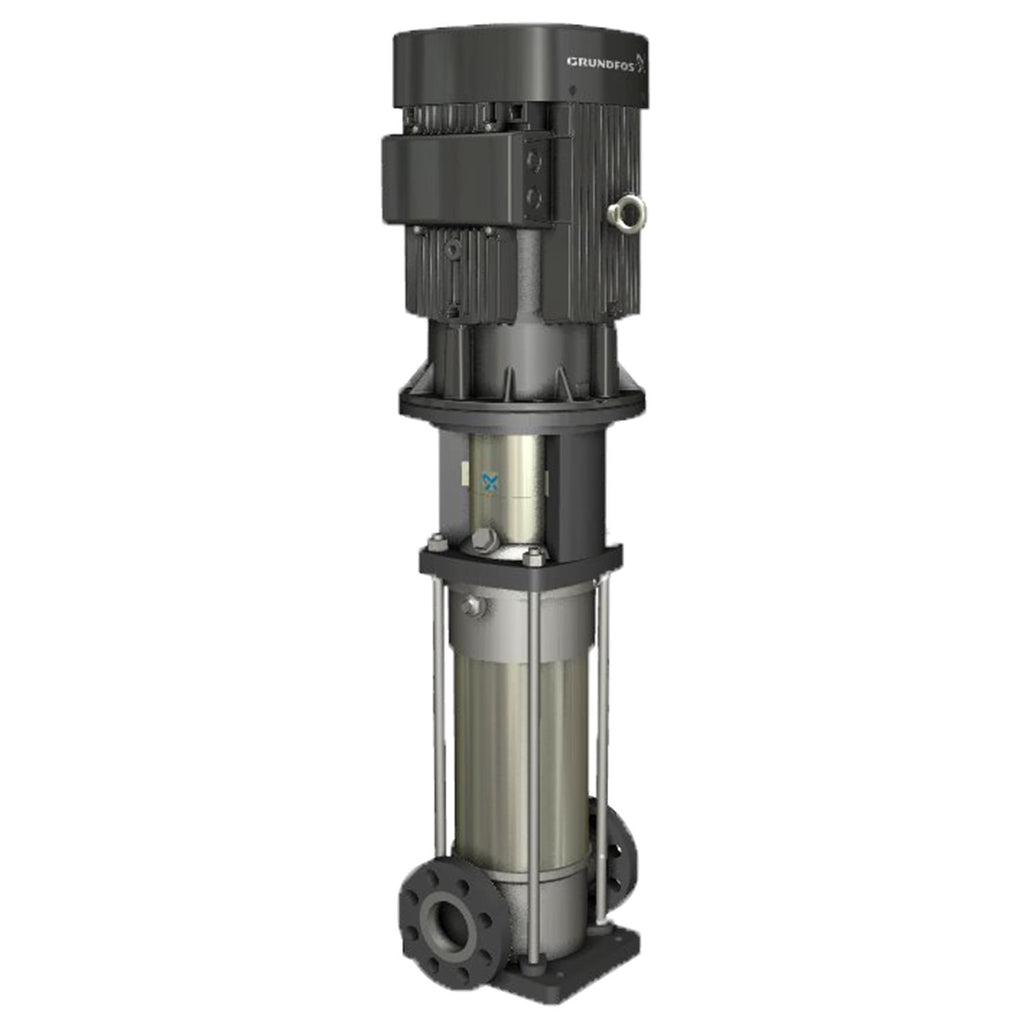

Grundfos 99397953 - CRN 3-7 M-FGJ-A-E | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 99397953

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 99397953 - CRN 3-7 M-FGJ-A-E is a vertical, multistage centrifugal pump designed for industrial fluid transfer and high-pressure boosting applications; typical users include service technicians and plant maintenance teams.

Key features

  • Vertical multistage centrifugal design for compact, high-pressure operation
  • Configured for in-line installation and service replacement scenarios
  • Durable construction offering reliable performance in industrial service applications

Applications

Suitable for boiler feed, pressure boosting, water treatment, and other industrial liquid transfer tasks where a vertical multistage centrifugal pump is specified.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 99397953

EAN 5713828458476
Approvals CE
Code for rubber E
Connect code FGJ
Connection PN 25
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Flange rating inlet 300 lb
Flange size for motor FT85
Frequency converter NONE
Gross weight 75.8 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 250 °F
Maximum head 37.73 ft
Maximum operating pressure 25 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor FT85
Motor standard IEC
Net weight 50.5 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 0.25 kW
Pressure rating for connection PN 25
Pressure sensor N
Pump 0.25 kW
Pump speed on which pump data are based 1410 rpm
Pump version M
Pumped liquid Water
Rated flow 6.6 US gpm
Rated head 26.9 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Size of inlet connection DN 25/32
Size of outlet connection DN 25/32
Stages 7
Standard IEC
Type of connection DIN / ANSI / JIS
Version M

Motor Curves

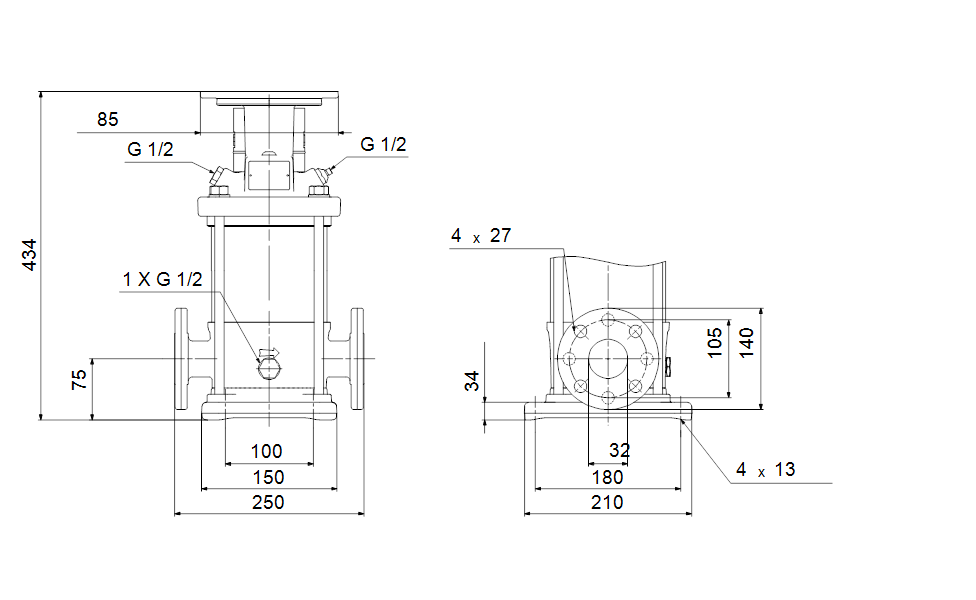

Dimensional Drawing
