Grundfos 98876352 - CRN 3-6 O-CX-A-V-HQQV | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 98876352

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 98876352 CRN 3-6 O-CX-A-V-HQQV is a vertical multistage centrifugal pump designed for industrial and high-pressure inline service. It suits technicians and facility engineers needing reliable fluid transfer in compact vertical installations.

Key features

  • Multistage centrifugal design for increased pressure capability
  • Vertical, inline configuration suited to space‑constrained pump systems
  • Built for dependable high‑pressure industrial service and routine maintenance access

Applications

Typical uses include high‑pressure boiler feed, water supply, pressure boosting, and other industrial process or plant systems requiring multistage vertical centrifugal performance.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 98876352

EAN 5712602794946
Approvals EAC
Approvals for drinking water WRAS
Built-in motor protection NONE
Code for rubber V
Code for shaft seal HQQV
Connect code CX
Connection PN 25
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange size for motor FT100
Frequency converter NONE
Gross weight 60.7 lb
IE efficiency IE3 84
IE Efficiency class NEMA Premium / IE3 60Hz
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 194 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 194 °F
Maximum ambient temperature 140 °F
Maximum head 188.3 ft
Maximum operating pressure 25 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor FT100
Motor efficiency at 1/2 load 0.854
Motor efficiency at 3/4 load 0.846
Motor efficiency at full load 1 0.84
Motor standard IEC
Motor type 80CA
Net weight 54.7 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 1.1 kW
Power factor 1 0.88-0.75
Pressure rating for connection PN 25
Pressure sensor N
Pump 1.1 kW
Pump speed on which pump data are based 3463 rpm
Pump version O
Pumped liquid Water
Rated current 4
Rated flow 15.4 US gpm
Rated head 141.4 ft
Rated power - P2 1.1 kW
Rated speed 3420-3470 rpm
Rated voltage 3 x 220-277D/380-480Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Size of inlet connection DN 32
Size of outlet connection DN 32
Stages 6
Standard IEC
Starting current 430-500 %
Type 80CA
Type of connection TriClamp
Version O

Motor Curves

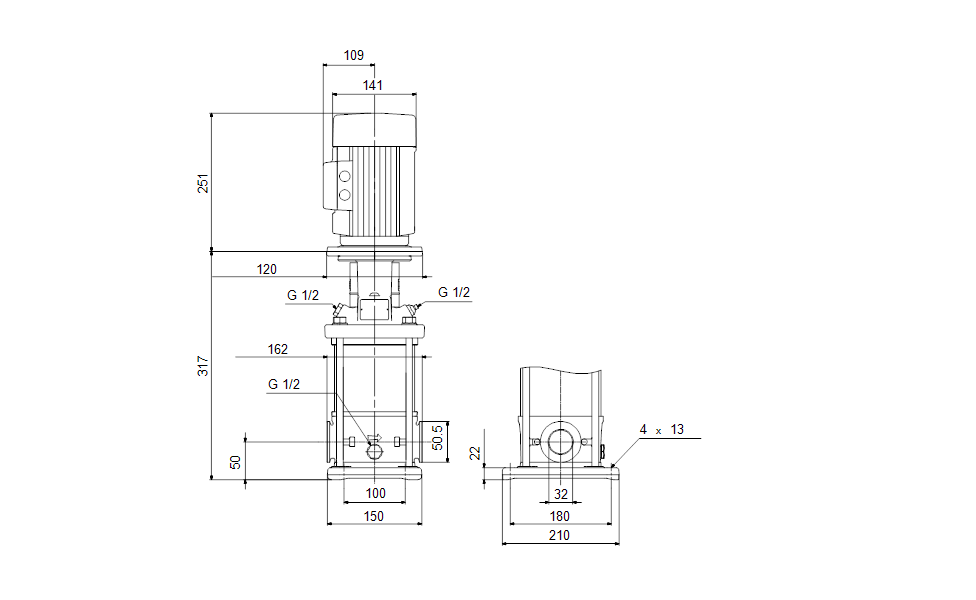

Dimensional Drawing

DWiring Diagram
