Grundfos 98160955 - CRN 3-6 A-P-A-E-HQQE | Vertical | Multistage | Centrifugal

Save $1,657.92
GRUNDFOSSKU: 98160955

Price:
Sale price$1,796.08 Regular price$3,454.00
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 98160955 - CRN 3-6 A-P-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by the renowned vendor Grundfos, this pump is engineered to deliver exceptional efficiency and reliability in demanding environments.

This model is part of the CRN series, known for its robust construction and versatility. It is ideal for high-pressure applications and is suitable for both single and multi-stage setups. The CRN 3-6 A-P-A-E-HQQE is specifically tagged as a Service Special, making it a perfect choice for those seeking dependable performance in critical operations.

At Pump-Stop, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU that matches the 98160955. If you encounter any difficulties in identifying the right item, our team is here to help you navigate your options.

EAN 5710629589880
Approvals EAC
Approvals for drinking water WRAS
Built-in motor protection NONE
Code for rubber E
Code for shaft seal HQQE
Connect code P
Connection PN 50
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange size for motor FT85
Frequency converter NONE
Gross weight 44.1 lb
IE Efficiency class IE3
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 50 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 250 °F
Maximum ambient temperature 140 °F
Maximum head 129.6 ft
Maximum operating pressure 25 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor FT85
Motor efficiency at 1/2 load 79.5-74.5 %
Motor efficiency at 3/4 load 81.5-78.5 %
Motor efficiency at full load 1 77.8-77.8 %
Motor standard IEC
Motor type 71BA
Net weight 38.3 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 0.55 kW
Power factor 1 0.80-0.70
Pressure rating for connection PN 50
Pressure sensor N
Pump 0.55 kW
Pump speed on which pump data are based 2856 rpm
Pump version A
Pumped liquid Water
Rated current 2.50/1.44 A
Rated flow 13.2 US gpm
Rated head 93.51 ft
Rated power - P2 0.55 kW
Rated speed 2830-2850 rpm
Rated voltage 3 x 220-240D/380-415Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Size of inlet connection DN 32
Size of outlet connection DN 32
Stages 6
Standard IEC
Starting current 580-620 %
Type 71BA
Type of connection PJE
Version A

Motor Curves

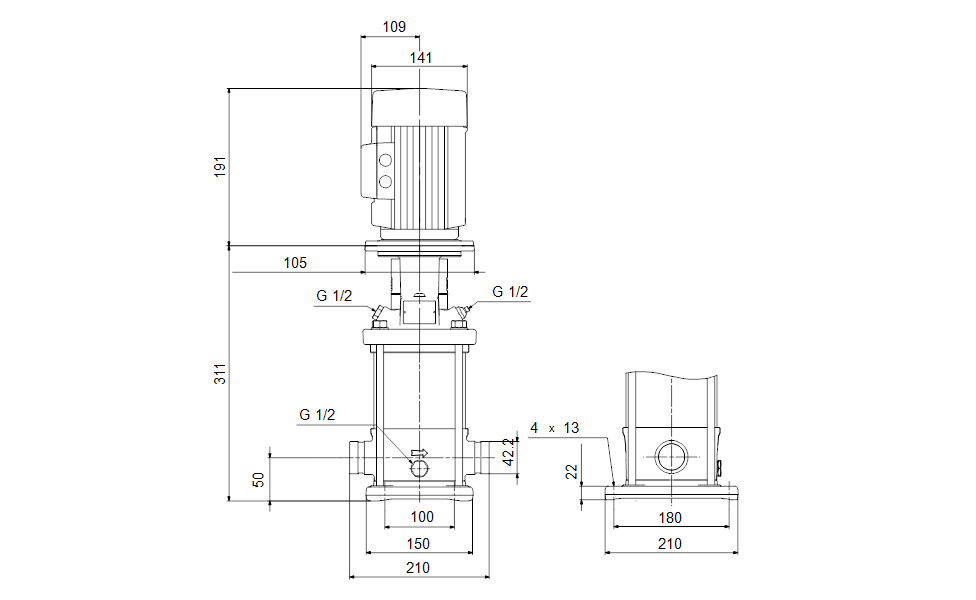

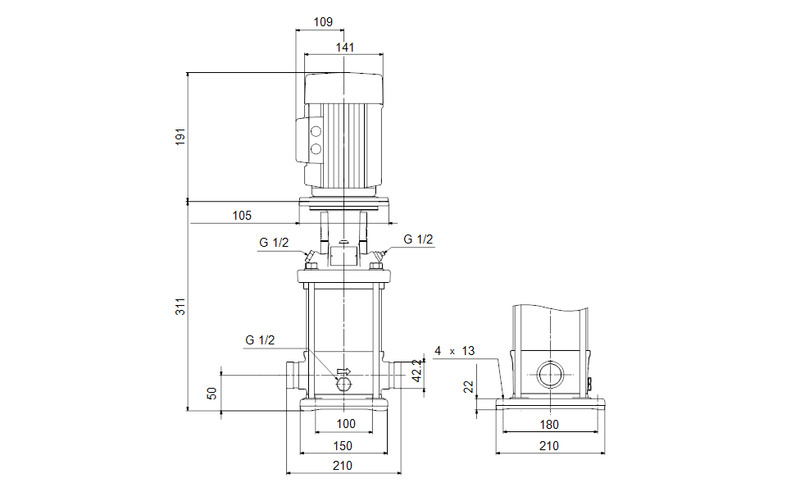

Dimensional Drawing

DWiring Diagram
