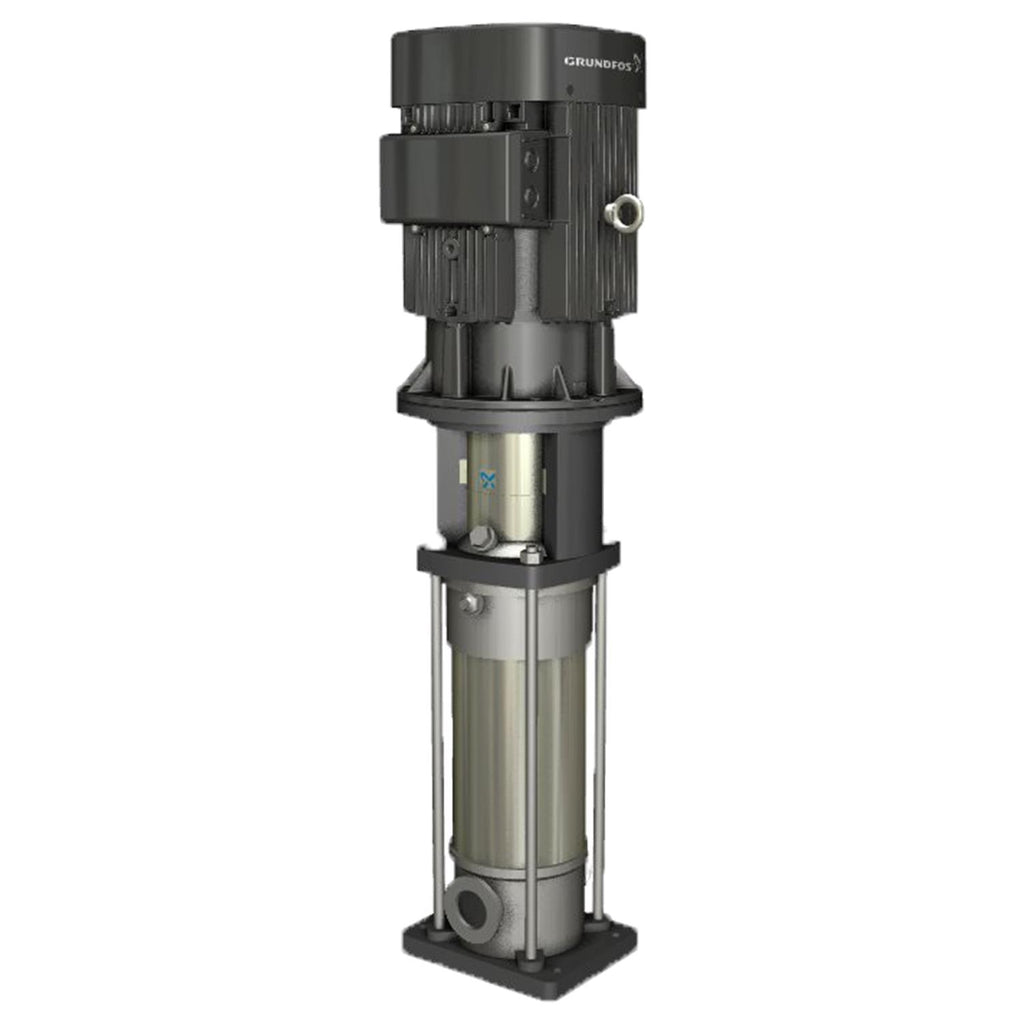

Grundfos 92535867 - CRN 3-4 M-CX-A-E | Multistage | Centrifugal | Vertical | Inline

GRUNDFOSSKU: 92535867

Price:
Sale price$13,518.06
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

The Grundfos 92535867 CRN 3-4 M-CX-A-E is a vertical, inline multistage centrifugal pump designed for industrial and service applications requiring high-pressure liquid handling. It suits technicians and maintenance teams replacing pumps in process, sanitary, or booster systems.

Key features

  • Vertical multistage centrifugal design with inlet and outlet ports on the same level (inline)
  • Wet parts in high-grade stainless steel with Tri-Clamp pipe connections for sanitary or easy maintenance
  • Equipped with a 3-phase, fan-cooled asynchronous motor for reliable, continuous operation

Applications

Typical uses include high-pressure liquid transfer, process and sanitary systems, booster stations, and general industrial service and repair work where compact vertical multistage pumps are required.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 92535867

EAN 5715115881097
Approvals CURUS
Built-in motor protection NONE
Code for rubber E
Connect code CX
Connection PN 25
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Flange size for motor 56C
Frequency converter NONE
Gross weight 76.2 lb
IE efficiency IE3 78
IE Efficiency class IE3 / NEMA Premium
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 250 °F
Maximum ambient temperature 104 °F
Maximum head 124.3 ft
Maximum operating pressure 25 bar
Model A
Motor 56C
Motor efficiency at 1/2 load 0.74
Motor efficiency at 3/4 load 0.77
Motor efficiency at full load 1 0.785
Motor standard NEMA
Motor type WEG
Net weight 65.2 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 0.75 kW
Power factor 1 0.76
Pressure rating for connection PN 25
Pressure sensor N
Pump 0.75 kW
Pump speed on which pump data are based 3439 rpm
Pump version M
Pumped liquid Water
Rated current 3.0/1.5 A
Rated flow 15.4 US gpm
Rated head 90.56 ft
Rated power - P2 0.75 kW
Rated speed 3435 rpm
Rated voltage 3 x 230/460 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection DN 32
Size of outlet connection DN 32
Stages 4
Standard NEMA
Starting current 8.8
Type WEG
Type of connection TriClamp
Version M

Motor Curves

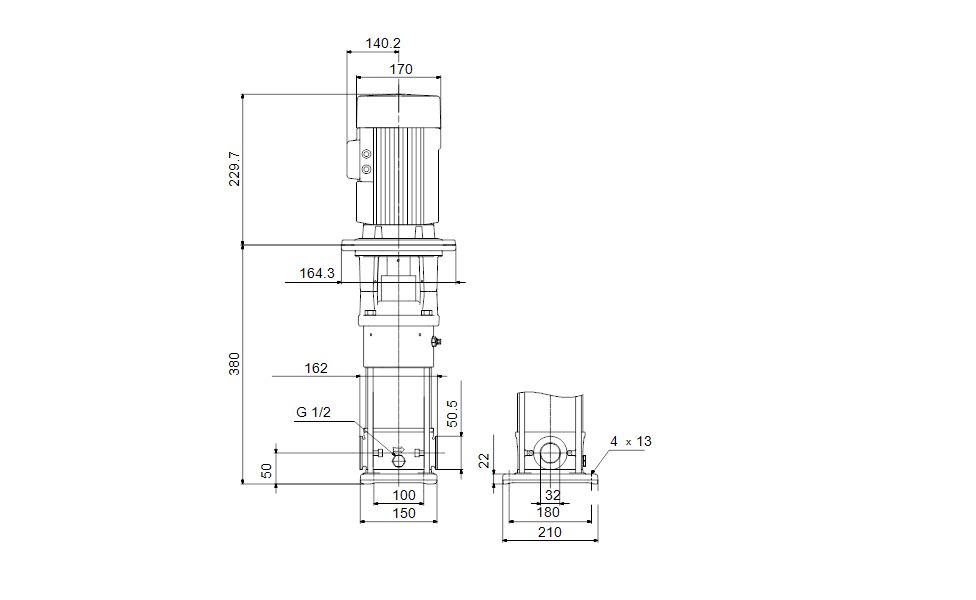

Dimensional Drawing

DWiring Diagram
