Grundfos 96801312 - CRN 3-25 A-FGJ-A-K-HQQK | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 96801312

Price:
Sale price$15,209.72
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

This Grundfos CRN 3-25 A-FGJ-A-K-HQQK is a vertical, multistage centrifugal pump designed for industrial and commercial systems where high-pressure, inline pumping is required. It suits technicians and maintenance teams replacing service-special units.

Key features

  • Vertical multistage centrifugal design for compact, high-pressure operation
  • Service-special unit compatible with Grundfos centrifugal pump lines and shop-by-type vertical multistage categories
  • Practical benefit: supports in-line installations to maintain system pressure and reliability

Applications

Typical uses include boiler feed, high-pressure water transfer, boosting systems, process circulation, and other industrial fluid-handling applications where vertical multistage performance is needed.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 96801312

EAN 5700310752501
Approvals CE
Code for rubber K
Code for shaft seal HQQK
Connect code FGJ
Connection PN 25
Curve tolerance ISO9906:2012 3B
Flange rating inlet 300 lb
Flange size for motor 182TC
Frequency converter NONE
Gross weight 75.7 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range 32 .. 248 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 250 °F
Maximum head 785.8 ft
Maximum operating pressure 25 bar
Model A
Motor 182TC
Motor standard NEMA
Net weight 57.8 lb
Number of reduced-diameter impellers 0
Pressure rating for connection PN 25
Pressure sensor N
Pump speed on which pump data are based 3461 rpm
Pump version A
Rated flow 15.4 US gpm
Rated head 588.3 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber K
Size of inlet connection DN 25/32
Size of outlet connection DN 25/32
Stages 25
Standard NEMA
Type of connection DIN / ANSI / JIS
Version A

Motor Curves

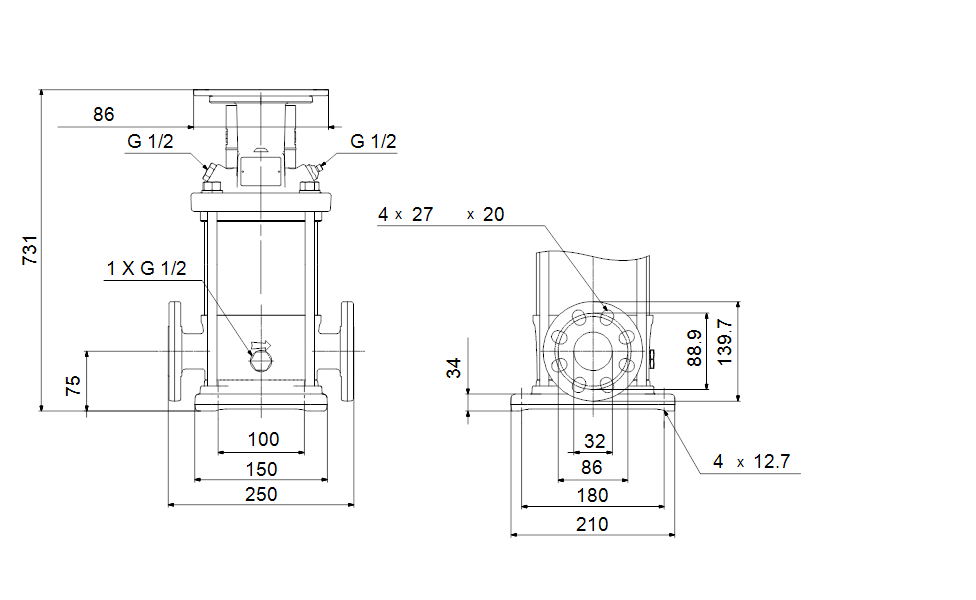

Dimensional Drawing
