Grundfos 96083826 - CRN 3-21 A-P-A-V-HQQV | Multistage | Centrifugal | Vertical | Inline

Save $2,257.70
GRUNDFOSSKU: 96083826

Price:
Sale price$3,017.30 Regular price$5,275.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

CRN 3-21 A-P-A-V-HQQV Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). Pump materials in contact with the liquid are in high-grade stainless steel. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via PJE (Victaulic®) couplings.

EAN 5700395179446
Applications Industrial applications
Approvals CE
Bearing 1 SIC
Code for rubber V
Code for shaft seal HQQV
Connect code P
Connection PJE
Connection 2 DN 32
Connection 3 DN 32
Connection 4 PN 50
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Flange size for motor 182TC
Flange standard PJE
Frequency 60 HZ
Frequency converter NONE
Gross weight 63.0 lb
Impeller Stainless steel
Impellers 21
Liquid max temp 90°C
Liquid temperature range -4 .. 194 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 194 °F
Maximum head 662.1 ft
Maximum operating pressure 362.59 psi
Maximum permissible operating pressure 25bar
Model A
Motor 182TC
Motor standard NEMA
n rpm 3461rpm
Net weight 45.1 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 5 HP
Pressure rating PN 50
Pressure rating for connection PN 50
Product family CRN 3
Pump 5 HP
Pump housing Stainless steel
Pump inlet DN 32
Pump outlet DN 32
Pump version A
Pumped liquid Water
Rated flow 15.4 US gpm
Rated flow 2 15.4 US gpm
Rated head 498.7 ft
Rated head 2 498.7 ft
Real Time Delivery date to be confirmed on Sales Order Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Shaft seal HQQV
Size of inlet connection DN 32
Size of outlet connection DN 32
Stages 21
Standard NEMA
Type of connection PJE
Version A

Motor Curves

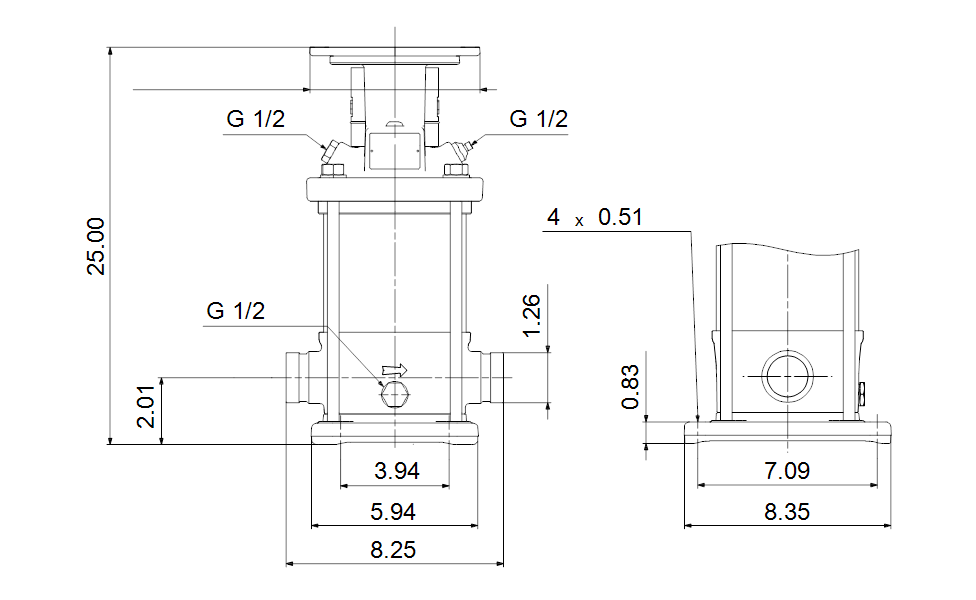

Dimensional Drawing
