Grundfos 96083735 - CRN 3-19 A-P-A-E-HQQE | Vertical | Multistage | Centrifugal

Save $2,085.64
GRUNDFOSSKU: 96083735

Price:
Sale price$2,787.36 Regular price$4,873.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 96083735 - CRN 3-19 A-P-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by the renowned vendor Grundfos, this pump is engineered to deliver reliable and efficient performance in demanding environments.

With its robust construction and advanced design, the CRN 3-19 A-P-A-E-HQQE model is ideal for high-pressure applications, ensuring optimal fluid transfer and circulation. This pump is part of the extensive range of Grundfos centrifugal pumps, which includes both single and multi-stage options, making it a versatile choice for various operational needs.

At Pump-Stop.com, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU that matches the 96083735 to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help!

EAN 5700395178531
Applications Industrial applications
Approvals CE
Approvals for drinking water NSF/ANSI 61
Bearing 1 SIC
Code for rubber E
Code for shaft seal HQQE
Connect code P
Connection PJE
Connection 2 DN 32
Connection 3 DN 32
Connection 4 PN 50
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Flange size for motor 182TC
Flange standard PJE
Frequency 60 HZ
Frequency converter NONE
Gross weight 61.1 lb
Impeller Stainless steel
Impellers 19
Liquid max temp 120°C
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 250 °F
Maximum head 595.2 ft
Maximum operating pressure 362.59 psi
Maximum permissible operating pressure 25bar
Model A
Motor 182TC
Motor standard NEMA
n rpm 3461rpm
Net weight 43.1 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 3 HP
Pressure rating PN 50
Pressure rating for connection PN 50
Product family CRN 3
Pump 3 HP
Pump housing Stainless steel
Pump inlet DN 32
Pump outlet DN 32
Pump version A
Pumped liquid Water
Rated flow 15.4 US gpm
Rated flow 2 15.4 US gpm
Rated head 441.3 ft
Rated head 2 441.3 ft
Real Time Delivery date to be confirmed on Sales Order Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Shaft seal HQQE
Size of inlet connection DN 32
Size of outlet connection DN 32
Stages 19
Standard NEMA
Type of connection PJE
Version A

Motor Curves

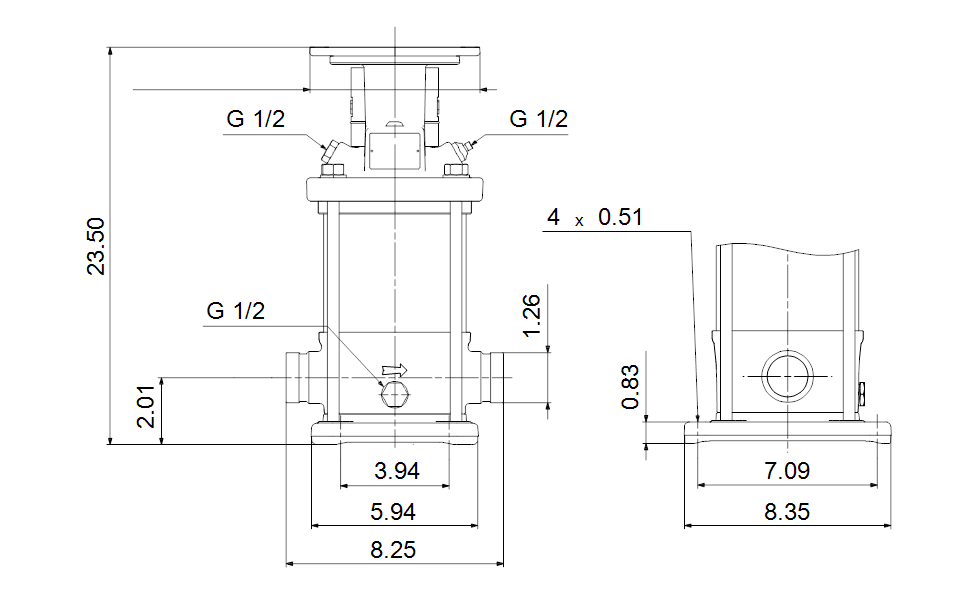

Dimensional Drawing
