Grundfos 98645237 - CRN 3-10 A-P-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 98645237

Contact for price
or Call for most up to date lead times. (781) 281-8905

Description

Overview

The Grundfos 98645237 - CRN 3-10 A-P-A-E-HQQE is a vertical, multistage centrifugal pump designed for industrial fluid transfer and high-pressure inline systems, used by maintenance teams and OEM service technicians.

Key features

  • Multistage centrifugal design for higher head and efficient staging
  • Vertical, in-line configuration suitable for compact system installations
  • Provides reliable high-pressure performance for general industrial pumping needs

Applications

Typical uses include boiler feed, process water circulation, high-pressure boosting, and other industrial or commercial systems requiring multistage centrifugal pumping. Suitable for service, repair, and replacement in inline vertical installations.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 98645237

EAN 5711498818897
Approvals EAC
Approvals for drinking water WRAS
Built-in motor protection NONE
Code for rubber E
Code for shaft seal HQQE
Connect code P
Connection PN 50
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange size for motor FT115
Frequency converter NONE
Gross weight 73.0 lb
IE Efficiency class NEMA Premium / IE3 60Hz
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 250 °F
Maximum ambient temperature 140 °F
Maximum head 314.6 ft
Maximum operating pressure 25 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor FT115
Motor efficiency at 1/2 load 87.1-83.7 %
Motor efficiency at 3/4 load 87.5-86.3 %
Motor efficiency at full load 1 85.5-85.5 %
Motor standard IEC
Motor type 90GB
Net weight 66.7 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 1.5 kW
Power factor 1 0.85-0.75
Pressure rating for connection PN 50
Pressure sensor N
Pump 1.5 kW
Pump speed on which pump data are based 3501 rpm
Pump version A
Pumped liquid Water
Rated current 5
Rated flow 15.4 US gpm
Rated head 237.5 ft
Rated power - P2 1.5 kW
Rated speed 3480-3530 rpm
Rated voltage 3 x 230-277D/400-480Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Size of inlet connection DN 32
Size of outlet connection DN 32
Stages 10
Standard IEC
Starting current 780-980 %
Type 90GB
Type of connection PJE
Version A

Motor Curves

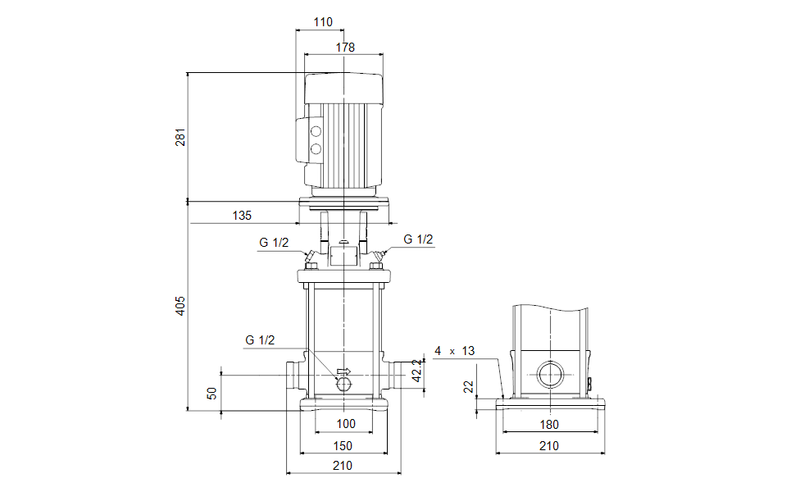

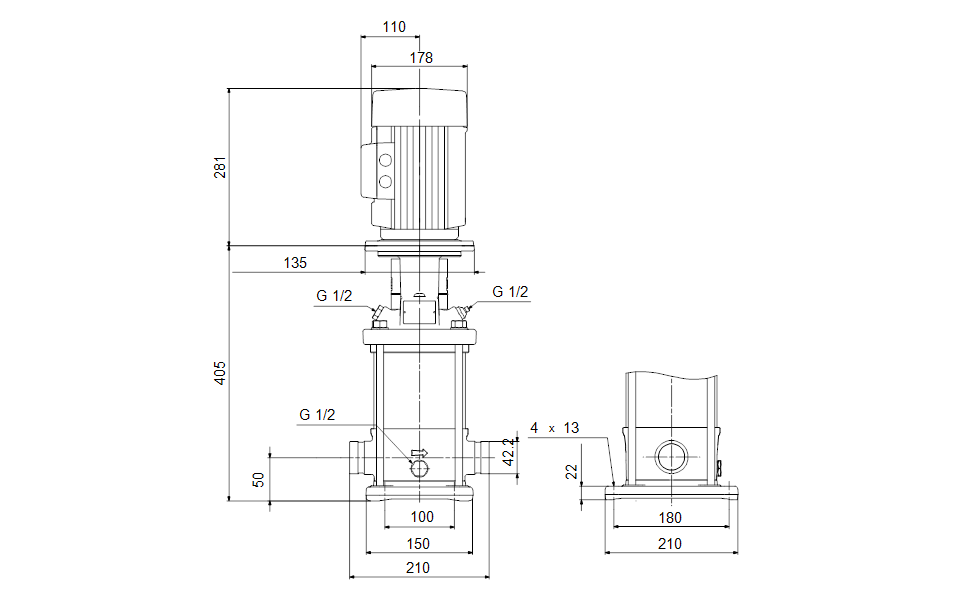

Dimensional Drawing

DWiring Diagram
