Grundfos 92542606 - CRN 255-3-1 A-P-A-E-HQQE | Multistage | Centrifugal | Vertical | Inline

Save $57,478.26
GRUNDFOSSKU: 92542606

Price:
Sale price$76,816.74 Regular price$134,295.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

CRN 255-3-1 A-P-A-E-HQQE Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). Pump materials in contact with the liquid are in high-grade stainless steel. A built-in thrust-handling device absorbs hydraulic axial forces which enables the use of a standard motor. The Grundfos cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via PJE (Victaulic®) couplings. The pump is fitted with a 3-phase, fan-cooled asynchronous motor.

Approvals for drinking water NSF/ANSI 61,NSF/ANSI 372
Bearing 1 Graflon
Built-in motor protection NONE
Code for rubber E
Code for shaft seal HQQE
Connect code P
Connection 800 psi
Cooling IC 411
Curve tolerance ISO9906:2012 3B
Enclosure class (IEC 34-5) IP55
Flange size for motor 447TSD
Frequency 60 Hz
Frequency converter NONE
Full load SF current 309 A
Gross weight 3760.0 lb
IE Eff. Class IE3 / NEMA Premium
IE efficiency IE3 95,8%
IE Efficiency class IE3 / NEMA Premium
Impeller Stainless steel
Impellers 1
Insulation F
Insulation class (IEC 85) F
IP Class IP55
Liquid max temp 248°F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material certified according to European standards
Material code A
Maximum ambient temperature 104 °F
Maximum head 671.3 ft
Maximum operating pressure 362.59 psi
Model A
Motor 447TSD
Motor efficiency at 1/2 load 0.954
Motor efficiency at 3/4 load 0.958
Motor efficiency at full load 1 0.958
Motor standard NEMA
Motor type WEG
n rpm F
Net weight 3290.0 lb
Number of poles 2
Number of reduced-diameter impellers 1
P2 kW 251 HP
Phase 3
Power (P2) required by pump 251 HP
Power factor 1 0.9
Pressure rating for connection 800 psi
Pump 251 HP
Pump version A
Rated current 269 A
Rated flow 1350 US gpm
Rated head 515.8 ft
Rated power - P2 251 HP
Rated speed 3573 rpm
Rated voltage 3 x 460 V
Rubber E
Service factor 1.15
Shaft Product name:CRN 255-3-1 A-P-A-E-HQQE
Shaft seal HQQE
Stages 3
Standard NEMA
Starting current 6.7
Support bearing Graflon
Thrust handling device Y
Type WEG
Type of connection PJE
Version A

Motor Curves

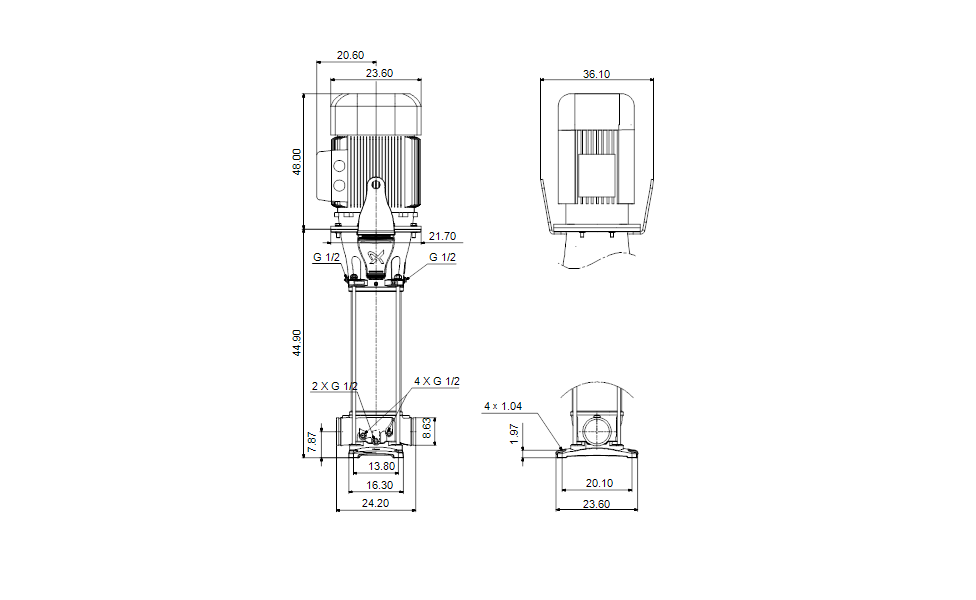

Dimensional Drawing

DWiring Diagram
