Grundfos 92542580 - CRN 255-3-1 A-G-A-E-HQQE | Vertical | Multistage | Centrifugal

Save $38,189.58
GRUNDFOSSKU: 92542580

Price:
Sale price$51,038.42 Regular price$89,228.00
Build to order – stocked components, typically available in 70 business days
or Call for most up to date lead times. (781) 281-8905

Description

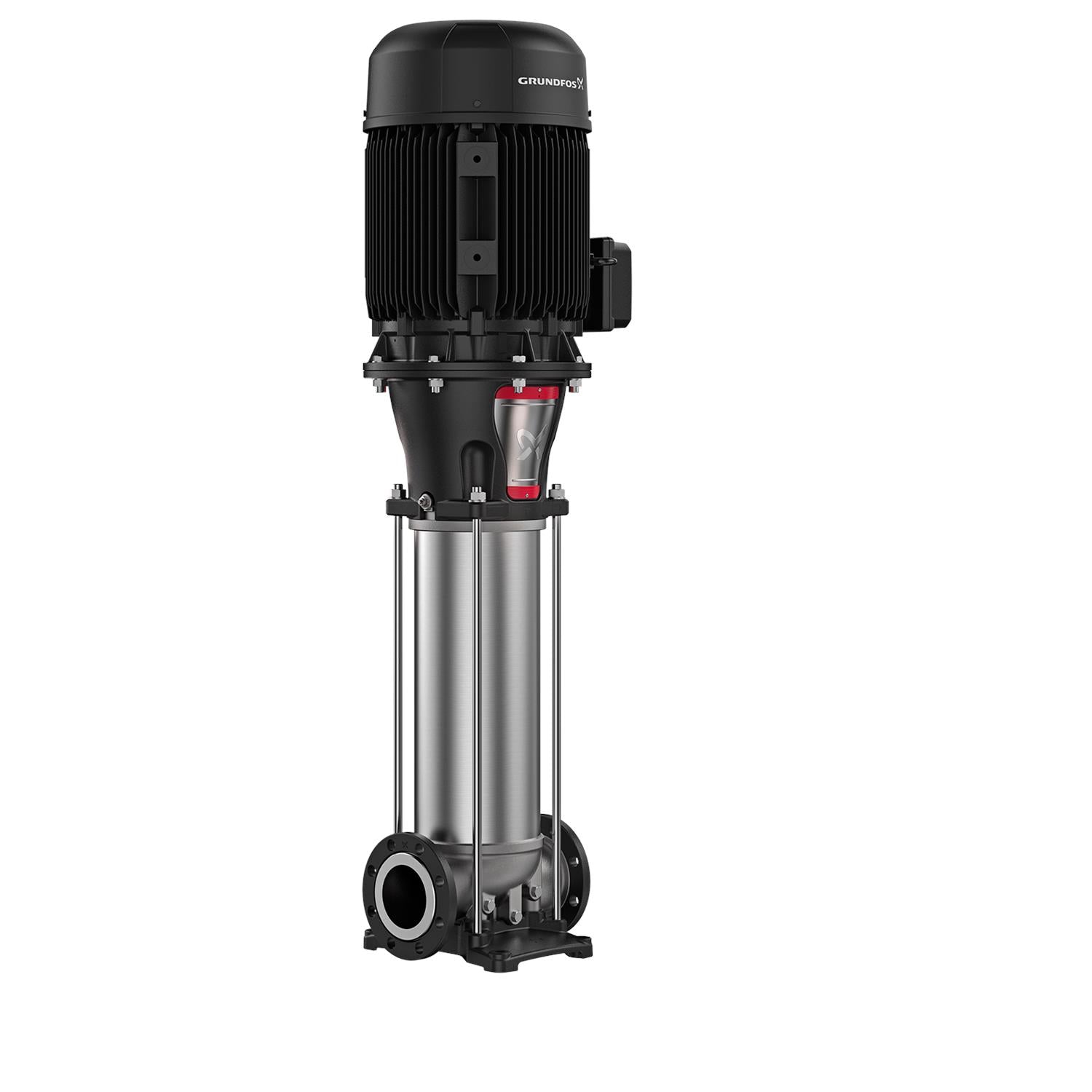

Grundfos 92542580 - CRN 255-3-1 A-G-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, this pump is engineered to deliver reliable and efficient performance, making it an ideal choice for high-pressure and inline pumping needs.

This model is part of the CRN series, known for its robust construction and versatility in handling various fluids. With its multi-stage design, the CRN 255-3-1 A-G-A-E-HQQE ensures optimal flow rates and pressure, making it suitable for demanding environments.

At Pump-Stop.com, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility.

Explore our extensive range of centrifugal pumps, including single and multi-stage options, and discover why Grundfos is a trusted name in the industry. For more information on specifications and applications, feel free to reach out to our knowledgeable team.

Approvals for drinking water NSF/ANSI 61,NSF/ANSI 372
Bearing 1 Graflon
Code for rubber E
Code for shaft seal HQQE
Connect code G
Connection 300 lb
Curve tolerance ISO9906:2012 3B
Flange size for motor 449TSD
Frequency converter NONE
Gross weight 1030.0 lb
Impeller Stainless steel
Impellers 1
Liquid max temp 248°F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material certified according to European standards
Material code A
Maximum head 671.3 ft
Maximum operating pressure 362.59 psi
Model A
Motor 449TSD
Motor standard NEMA
n rpm 3579rpm
Net weight 774.0 lb
Number of reduced-diameter impellers 1
Power (P2) required by pump 251 HP
Pressure rating for connection 300 lb
Pump 251 HP
Pump version A
Rated flow 1350 US gpm
Rated head 515.8 ft
Rubber E
Shaft Product name:CRN 255-3-1 A-G-A-E-HQQE
Shaft seal HQQE
Stages 3
Standard NEMA
Support bearing Graflon
Thrust handling device Y
Type of connection ANSI
Version A

Motor Curves

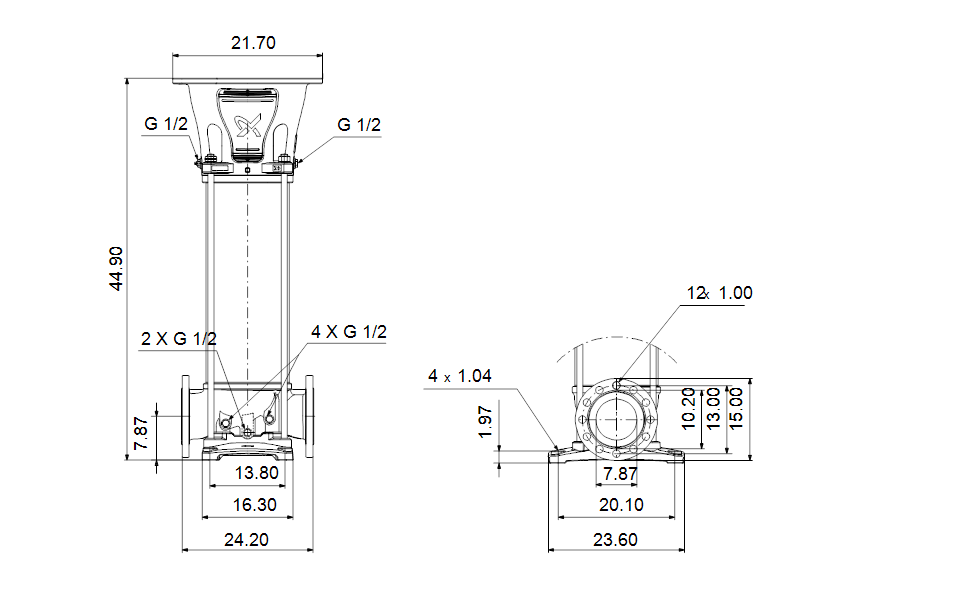

Dimensional Drawing
