Grundfos 99145551 - CRN 255-1-1 A-P-A-V-HQQV | Vertical | Multistage | Centrifugal

Save $20,659.56
GRUNDFOSSKU: 99145551

Price:
Sale price$27,610.44 Regular price$48,270.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 99145551 - CRN 255-1-1 A-P-A-V-HQQV Vertical Multistage Centrifugal Pump

The Grundfos 99145551 - CRN 255-1-1 A-P-A-V-HQQV is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, this pump is engineered to deliver reliable and efficient performance, making it an ideal choice for high-pressure systems.

With its robust construction and advanced design, the CRN 255-1-1 A-P-A-V-HQQV model is perfect for applications requiring consistent flow and pressure. This pump is part of the renowned Grundfos CR series, known for its versatility and durability in demanding environments.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility.

For more information on specifications and applications, feel free to reach out to our knowledgeable team. We are here to help you find the perfect solution for your pumping needs.

Approvals for drinking water NSF/ANSI 372
Bearing 1 Graflon
Built-in motor protection NONE
Code for rubber V
Code for shaft seal HQQV
Connect code P
Connection 800 psi
Cooling IC 411
Curve tolerance ISO9906:2012 3B
Enclosure class (IEC 34-5) IP55
Flange size for motor 364TSC
Frequency 60 Hz
Frequency converter NONE
Full load SF current 168/83.8 A
Gross weight 1790.0 lb
IE Eff. Class IE3 / NEMA Premium
IE efficiency IE3 93,6%
IE Efficiency class IE3 / NEMA Premium
Impeller Stainless steel
Impellers 1
Insulation F
Insulation class (IEC 85) F
IP Class IP55
Liquid max temp 194°F
Liquid temperature range -4 .. 194 °F
Low NPSH N
Material certified according to European standards
Material code A
Maximum ambient temperature 104 °F
Maximum head 199.8 ft
Maximum operating pressure 362.59 psi
Model A
Motor 364TSC
Motor efficiency at 1/2 load 0.917
Motor efficiency at 3/4 load 0.93
Motor efficiency at full load 1 0.936
Motor standard NEMA
Motor type WEG
n rpm F
Net weight 1430.0 lb
Number of poles 2
Number of reduced-diameter impellers 1
P2 kW 60 HP
Phase 3
Power (P2) required by pump 60 HP
Power factor 1 0.9
Pressure rating for connection 800 psi
Pump 60 HP
Pump version A
Rated current 134/67 A
Rated flow 1350 US gpm
Rated head 133.9 ft
Rated power - P2 60 HP
Rated speed 3560 rpm
Rated voltage 3 x 230/460 V
Rubber V
Service factor 1.25
Shaft Product name:CRN 255-1-1 A-P-A-V-HQQV
Shaft seal HQQV
Stages 1
Standard NEMA
Starting current 6.6
Support bearing Graflon
Thrust handling device N
Type WEG
Type of connection PJE
Version A

Motor Curves

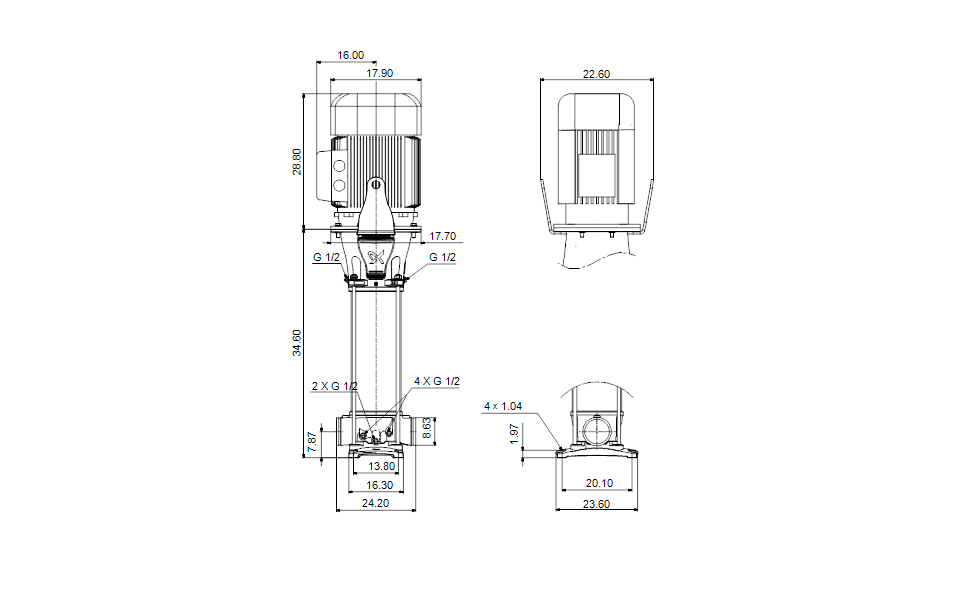

Dimensional Drawing

DWiring Diagram
