Grundfos 99400517 - CRN 215-5-1 A-G-A-E-HQQE | Multistage | Centrifugal | Vertical | Inline

Save $45,462.16
GRUNDFOSSKU: 99400517

Price:
Sale price$60,757.84 Regular price$106,220.00
Build to order – stocked components, typically available in 66 days
or Call for most up to date lead times. (781) 281-8905

Description

CRN 215-5-1 A-G-A-E-HQQE Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). Pump materials in contact with the liquid are in high-grade stainless steel. A built-in thrust-handling device absorbs hydraulic axial forces which enables the use of a standard motor. The Grundfos cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via ANSI flanges.

EAN 5713828501714
Applications Industrial applications
Approvals for drinking water NSF/ANSI 61,NSF/ANSI 372
Bearing 1 WC/WC
Code for rubber E
Code for shaft seal HQQE
Connect code G
Connection ANSI
Connection 2 300 lb
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Flange size for motor 449TSD
Flange standard ANSI
Frequency 60 HZ
Frequency converter NONE
Gross weight 1000.0 lb
Impeller Stainless steel
Impellers 5
Liquid max temp 120°C
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material certified according to European standards
Material code A
Material Pricing Group 33
Max pressure at stated temp 363 psi / 250 °F
Maximum head 1208 ft
Maximum operating pressure 580.15 psi
Maximum permissible operating pressure 40bar
Model A
Motor 449TSD
Motor standard NEMA
n rpm 3574rpm
Net weight 743.0 lb
Number of reduced-diameter impellers 1
Power (P2) required by pump 300 HP
Pressure rating 300 lb
Pressure rating for connection 300 lb
Product family CRN 215
Pump 300 HP
Pump housing Stainless steel
Pump inlet 8
Pump outlet 8
Pump version A
Pumped liquid Water
Rated flow 1140 US gpm
Rated flow 2 1140 US gpm
Rated head 928.2 ft
Rated head 2 928.2 ft
Real Time Delivery date to be confirmed on Sales Order Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Shaft seal HQQE
Stages 5
Standard NEMA
Support bearing Graflon
Thrust handling device SiC/WC
Type of connection ANSI
Version A

Motor Curves

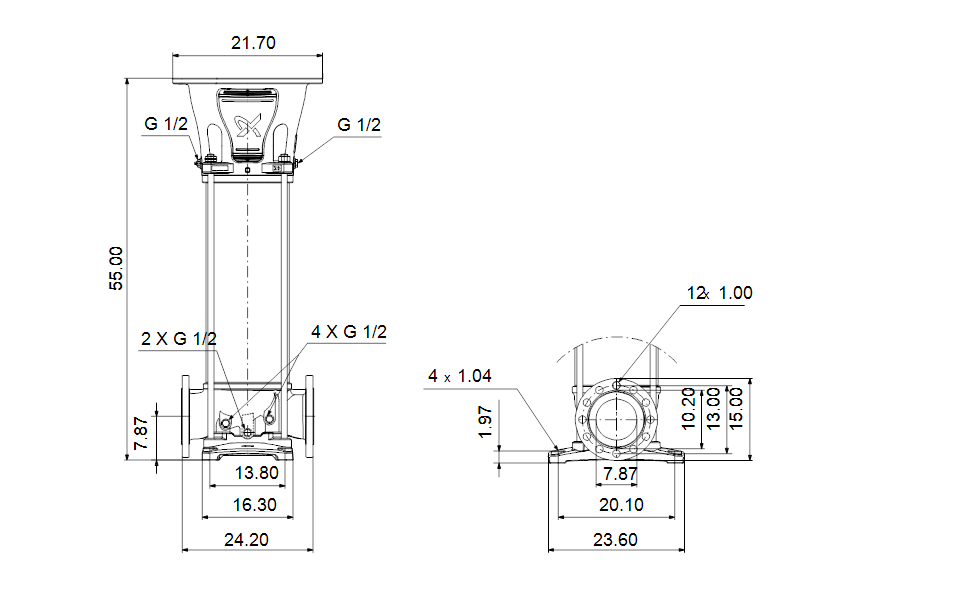

Dimensional Drawing
