Grundfos 92542444 - CRN 215-3-3 A-G-A-V-HQQV
Grundfos 92542444 - CRN 215-3-3 A-G-A-V-HQQV
Grundfos 92542444 - CRN 215-3-3 A-G-A-V-HQQV
Grundfos 92542444 - CRN 215-3-3 A-G-A-V-HQQV

Grundfos 92542444 - CRN 215-3-3 A-G-A-V-HQQV

Save $31,536.00
GRUNDFOSSKU: 92542444
Price:
$34,164.00 $65,700.00
Delivery date to be confirmed on Sales Order
Chat or Call for most up to date lead times. (781) 281-8905

Description

CRN 215-3-3 A-G-A-V-HQQV | Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). Pump materials in contact with the liquid are in high-grade stainless steel. A built-in thrust-handling device absorbs hydraulic axial forces which enables the use of a standard motor. The Grundfos cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via ANSI flanges.

EAN 5715115981216
Applications Industrial applications
Material Pricing Group 33
Code for rubber V
Material code A
Density 62.29 lb/ft³
Max pressure at stated temp 363 psi / 194 °F
Maximum operating pressure 362.59 psi
Support bearing Graflon
Selected liquid temperature 68 °F
Type of connection ANSI
Bearing 1 WC/WC
Pressure rating 300 lb
Flange size for motor 445TSD
Pumped liquid Water
Pump outlet 8
Pump inlet 8
Connect code G
Liquid temperature range -4 .. 194 °F
Net weight 675.0 lb
Gross weight 933.0 lb
Power (P2) required by pump 150 HP
Pressure rating for connection 300 lb
Frequency converter NONE
Stages 3
Rated flow 1140 US gpm
Flange standard ANSI
Model A
Version A
Motor 445TSD
Rubber V
Maximum head 589.3 ft
Approvals for drinking water NSF/ANSI 372
Motor standard NEMA
Material certified according to European standards
Thrust handling device SiC/WC
Rated head 403.2 ft
Curve tolerance ISO9906:2012 3B
Impellers 3
Connection ANSI
Impeller Stainless steel
Code for shaft seal HQQV
Pump housing Stainless steel
Number of reduced-diameter impellers 3
Pump 150 HP
Low NPSH N
Standard NEMA
Pump version A

Motor Curves

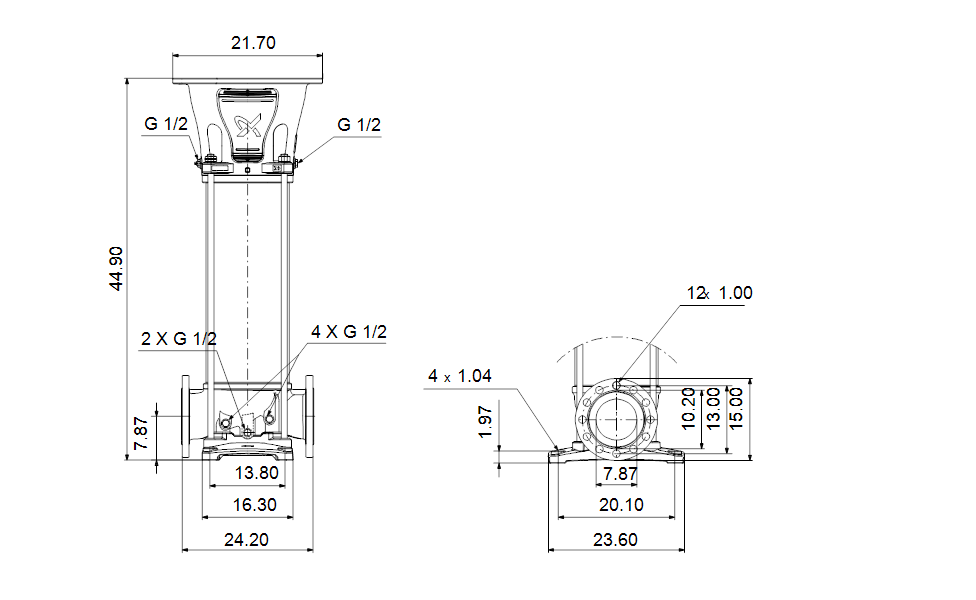

Dimensional Drawing
