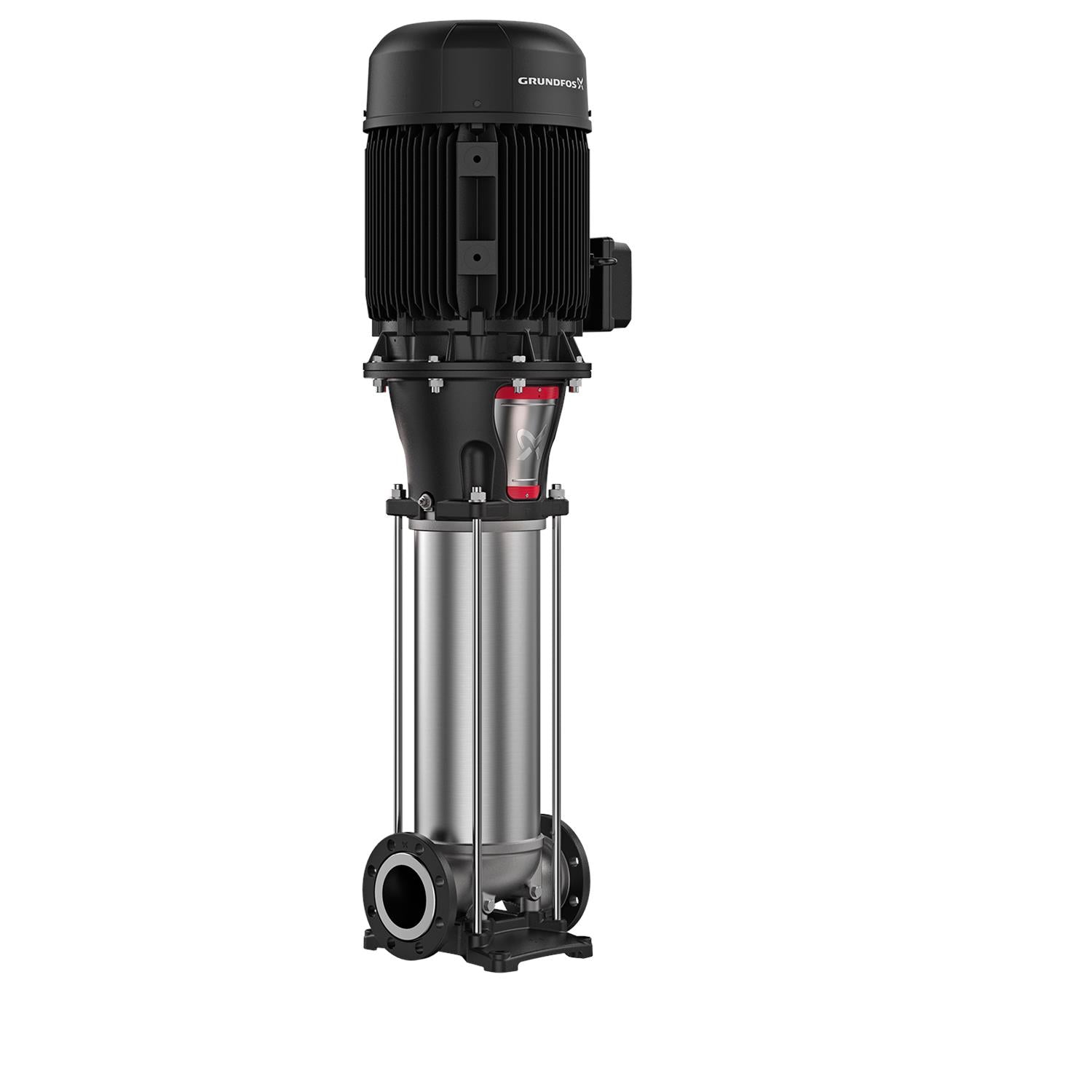

![Grundfos 99400506 - CRN 215-1 A-G-A-E-HQQE]()
![Grundfos 99400506 - CRN 215-1 A-G-A-E-HQQE]()
![Grundfos 99400506 - CRN 215-1 A-G-A-E-HQQE]()
![Grundfos 99400506 - CRN 215-1 A-G-A-E-HQQE]()
Description
CRN 215-1 A-G-A-E-HQQE | Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). Pump materials in contact with the liquid are in high-grade stainless steel. The Grundfos cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via ANSI flanges.
EAN
5713828501523
Applications
Industrial applications
Material Pricing Group
33
Code for rubber
E
Material code
A
Density
62.29 lb/ft³
Max pressure at stated temp
232 psi / 250 °F
Maximum operating pressure
232.06 psi
Support bearing
Graflon
Selected liquid temperature
68 °F
Type of connection
ANSI
Bearing 1
WC/WC
Pressure rating
150 lb
Flange size for motor
365TSC
Pumped liquid
Water
Pump outlet
8
Pump inlet
8
Connect code
G
Liquid temperature range
-4 .. 248 °F
Net weight
547.0 lb
Gross weight
805.0 lb
Power (P2) required by pump
75 HP
Pressure rating for connection
150 lb
Frequency converter
NONE
Stages
1
Rated flow
1140 US gpm
Flange standard
ANSI
Model
A
Version
A
Motor
365TSC
Rubber
E
Maximum head
257.6 ft
Approvals for drinking water
NSF/ANSI 61,NSF/ANSI 372
Motor standard
NEMA
Material certified according to
European standards
Thrust handling device
N
Rated head
185.4 ft
Curve tolerance
ISO9906:2012 3B
Impellers
1
Connection
ANSI
Impeller
Stainless steel
Code for shaft seal
HQQE
Pump housing
Stainless steel
Number of reduced-diameter impellers
0
Pump
75 HP
Low NPSH
N
Standard
NEMA
Pump version
A
Motor Curves
