Grundfos 96127159 - CRN 20-5 A-P-A-V-HQQV | Vertical | Multistage | Centrifugal

Save $3,349.96
GRUNDFOSSKU: 96127159

Price:
Sale price$4,477.04 Regular price$7,827.00
Build to order – stocked components, typically available in 5 days
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 96127159 - CRN 20-5 A-P-A-V-HQQV Vertical Multistage Centrifugal Pump

The Grundfos 96127159 - CRN 20-5 A-P-A-V-HQQV is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, this pump is engineered to deliver reliable and efficient performance, making it an ideal choice for high-pressure systems.

With its robust construction and advanced design, the CRN series is perfect for applications requiring consistent flow and pressure. This model is part of the extensive range of Grundfos centrifugal pumps, which includes both single and multi-stage options, ensuring you can find the right solution for your needs.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to contact our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help!

EAN 5700397005231
Applications Industrial applications
Actual impeller diameter 4.13 in
Approvals CE
Bearing 1 SIC
Code for rubber V
Code for shaft seal HQQV
Connect code P
Connection PJE
Connection 2 DN 50
Connection 3 DN 50
Connection 4 PN 50
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 4.13 in
DOE Pump Energy Index CL 0.91
Flange size for motor 254TC
Flange standard PJE
Frequency 60 HZ
Frequency converter NONE
Gross weight 176.0 lb
Impeller Stainless steel
Impellers 5
Liquid max temp 90°C
Liquid temperature range -4 .. 194 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 194 °F
Maximum head 344.5 ft
Maximum operating pressure 362.59 psi
Maximum permissible operating pressure 25bar
Model A
Motor 254TC
Motor standard NEMA
n rpm 3444rpm
Net weight 90.4 lb
Number of reduced-diameter impellers 0
Pressure rating PN 50
Pressure rating for connection PN 50
Product family CRN 20
Pump housing Stainless steel
Pump inlet DN 50
Pump outlet DN 50
Pump version A
Pumped liquid Water
Rated flow 111 US gpm
Rated flow 2 111 US gpm
Rated head 268.7 ft
Rated head 2 268.7 ft
Real Time Delivery date to be confirmed on Sales Order Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Shaft seal HQQV
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 5
Standard NEMA
Type of connection PJE
Version A

Motor Curves

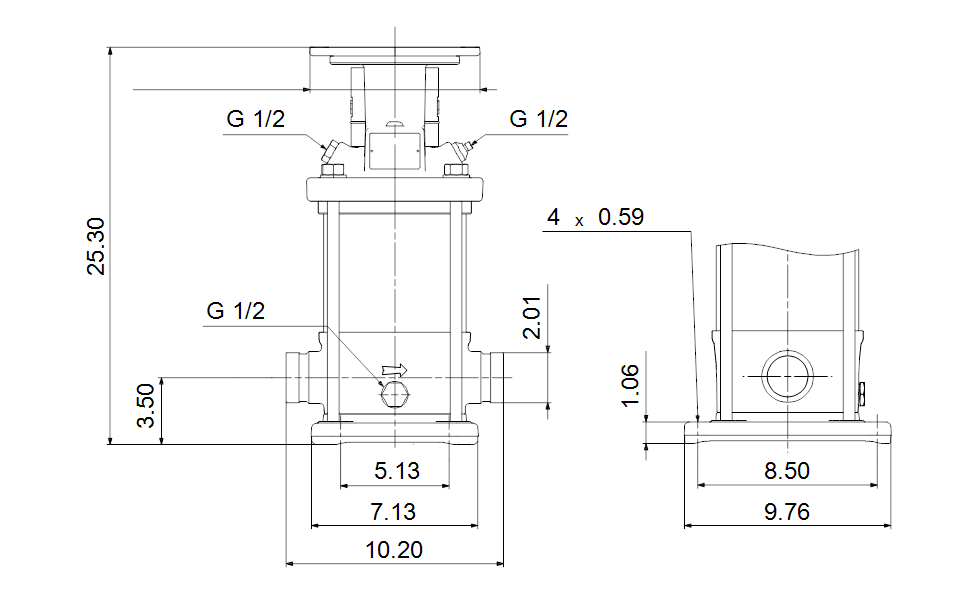

Dimensional Drawing
