Grundfos 96127150 - CRN 20-5 A-FGJ-A-V-HQQV | Vertical | Multistage | Centrifugal

Save $3,349.96
GRUNDFOSSKU: 96127150

Price:
Sale price$4,477.04 Regular price$7,827.00
Build to order – stocked components, typically available in 5 days
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 96127150 - CRN 20-5 A-FGJ-A-V-HQQV is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by the renowned vendor Grundfos, this pump is engineered to deliver exceptional efficiency and reliability in demanding environments.

This model is part of the CRN series, known for its robust construction and versatility. It is ideal for high-pressure applications and is suitable for both inline and vertical installations. The CRN 20-5 A-FGJ-A-V-HQQV is designed to handle a wide range of fluids, making it a perfect choice for various industrial processes.

At Pump-Stop.com, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU that matches the Grundfos 96127150. If you encounter any difficulties in locating the right item, our team is here to help you find the perfect solution.

EAN 5700397005149
Applications Industrial applications
Actual impeller diameter 4.13 in
Approvals CE
Bearing 1 SIC
Code for rubber V
Code for shaft seal HQQV
Connect code FGJ
Connection DIN / ANSI / JIS
Connection 2 DN 50
Connection 3 DN 50
Connection 4 PN 25
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 4.13 in
DOE Pump Energy Index CL 0.91
Flange rating inlet 300 lb
Flange size for motor 254TC
Frequency 60 HZ
Frequency converter NONE
Gross weight 185.0 lb
Impeller Stainless steel
Impellers 5
Liquid max temp 90°C
Liquid temperature range -4 .. 194 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 194 °F
Maximum head 344.5 ft
Maximum operating pressure 362.59 psi
Maximum permissible operating pressure 25bar
Model A
Motor 254TC
Motor standard NEMA
n rpm 3444rpm
Net weight 99.2 lb
Number of reduced-diameter impellers 0
Pressure rating PN 25
Pressure rating for connection PN 25
Product family CRN 20
Pump housing Stainless steel
Pump inlet DN 50
Pump outlet DN 50
Pump version A
Pumped liquid Water
Rated flow 111 US gpm
Rated flow 2 111 US gpm
Rated head 268.7 ft
Rated head 2 268.7 ft
Real Time Delivery date to be confirmed on Sales Order Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Shaft seal HQQV
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 5
Standard NEMA
Type of connection DIN / ANSI / JIS
Version A

Motor Curves

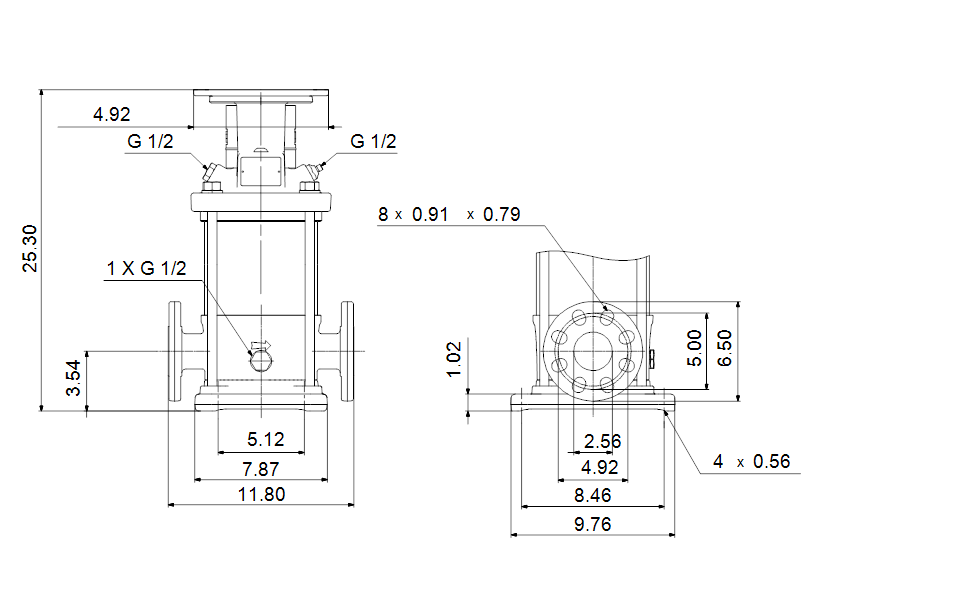

Dimensional Drawing
