Grundfos 97740298 - CRN 20-4 H-G22-A-V-HQQV | Vertical | Multistage | Centrifugal

Save $3,234.40
GRUNDFOSSKU: 97740298

Price:
Sale price$4,322.60 Regular price$7,557.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 97740298 - CRN 20-4 H-G22-A-V-HQQV Vertical Multistage Centrifugal Pump

The Grundfos 97740298 - CRN 20-4 H-G22-A-V-HQQV is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, this pump is engineered to deliver reliable and efficient performance, making it an ideal choice for boosting water pressure and handling various fluid transfer tasks.

With its robust construction and advanced design, the CRN series is suitable for both horizontal and vertical installations, ensuring versatility in your pumping solutions. This model is part of the Grundfos Centrifugal Pumps range, which includes single and multi-stage options, making it easy to find the right fit for your specific needs.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU that matches the Grundfos 97740298. If you encounter any difficulties in locating the right item, our team is here to help you navigate your options.

Approvals on nameplate CE
Bearing 1 SIC
Code for rubber V
Code for shaft seal HQQV
Connect code G22
Connection PN 16
Curve tolerance ISO9906:2012 3B
Flange rating inlet 150 lb
Flange size for motor 213TC
Frequency converter NONE
Gross weight 232.0 lb
Impeller Stainless steel
Impellers 0
Liquid max temp 194°F
Liquid temperature range -4 .. 194 °F
Low NPSH N
Material code A
Maximum head 269.7 ft
Maximum operating pressure 232.06 psi
Model A
Motor 213TC
Motor standard NEMA
n rpm 3470rpm
Net weight 130.0 lb
Number of reduced-diameter impellers 0
Pressure rating for connection PN 16
Pressure sensor N
Pump Y
Pump version H
Rated flow 101 US gpm
Rated head 216.9 ft
Rubber V
Sales region USA
Shaft Product name:CRN 20-4 H-G22-A-V-HQQV
Shaft seal HQQV
Stages 4
Standard NEMA
Version H

Motor Curves

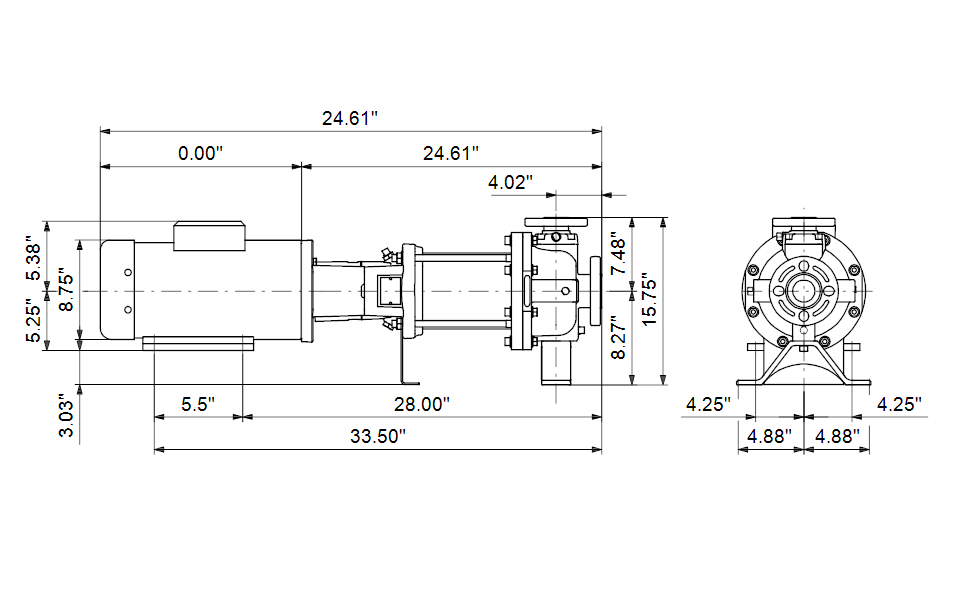

Dimensional Drawing
