Grundfos 97739928 - CRN 20-3 H-GA-A-E-HQQE | Vertical | Multistage | Centrifugal

Save $2,793.13
GRUNDFOSSKU: 97739928

Price:
Sale price$3,732.87 Regular price$6,526.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 97739928 - CRN 20-3 H-GA-A-E-HQQE Vertical Multistage Centrifugal Pump

The Grundfos 97739928 - CRN 20-3 H-GA-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, this pump is engineered to deliver reliable and efficient performance, making it an ideal choice for boosting water pressure and transferring fluids in demanding environments.

This model features a robust construction and advanced design, ensuring durability and longevity. It is categorized under horizontal multistage pumps and is suitable for various applications, including water supply, irrigation, and industrial processes.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to contact our team at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches to ensure compatibility.

For more information on specifications and applications, feel free to reach out to us. Our knowledgeable staff is here to help you find the perfect solution for your pumping needs.

Approvals on nameplate CE,NSF/ANSI 61
Bearing 1 SIC
Code for rubber E
Code for shaft seal HQQE
Connect code GA
Connection PN 16
Curve tolerance ISO9906:2012 3B
Flange rating inlet 150 lb
Flange size for motor 213TC
Frequency converter NONE
Gross weight 139.0 lb
Impeller Stainless steel
Impellers 0
Liquid max temp 248°F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material code A
Maximum head 201.5 ft
Maximum operating pressure 232.06 psi
Model A
Motor 213TC
Motor standard NEMA
n rpm 3467rpm
Net weight 119.0 lb
Number of reduced-diameter impellers 0
Pressure rating for connection PN 16
Pressure sensor N
Pump Y
Pump version H
Rated flow 101 US gpm
Rated head 161.1 ft
Rubber E
Sales region USA
Shaft Product name:CRN 20-3 H-GA-A-E-HQQE
Shaft seal HQQE
Stages 3
Standard NEMA
Version H

Motor Curves

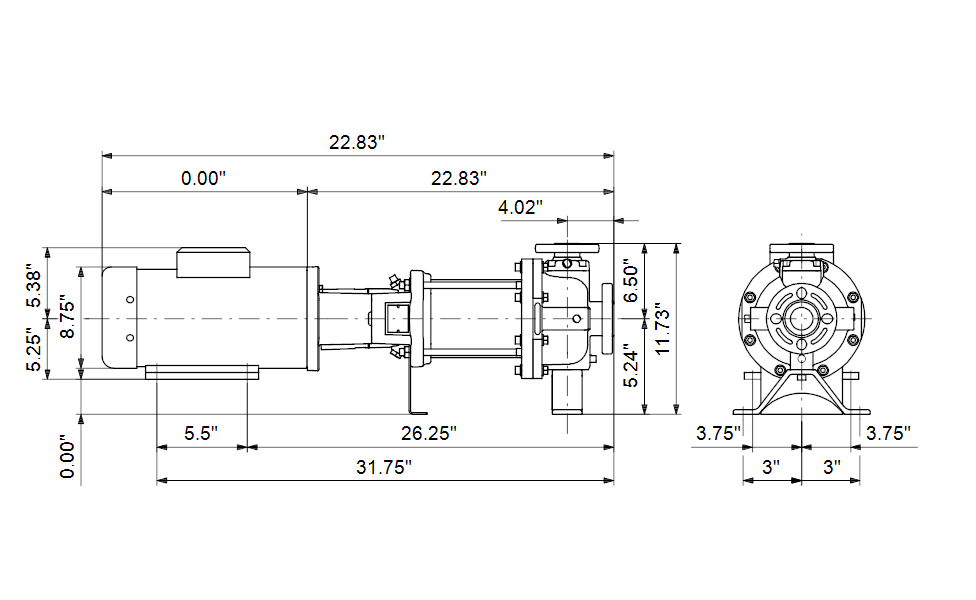

Dimensional Drawing
